The difference between ball mill, HGM ultrafine mill and CLUM vertical mill

Ball mill, ultra-fine mill and ultra-fine vertical mill are all used to process stone powder, so what are the differences between them? Which machine should you choose when it comes time to invest in a milling project?


The difference between ball mill, HGM ultrafine mill, and CLUM vertical mill


1. The output particle shape difference

output particle shape of ball mill,ultrafine mill and vertical millFrom the above photos, we can find the ball mill has the more uniform particles and shape, then the CLUM ultrafine vertical roller mill, the last is HGM ultrafine grinding mill.
So if your final market has the special request for the particle shape, please know the difference.

2. The power consumption for the same powder size

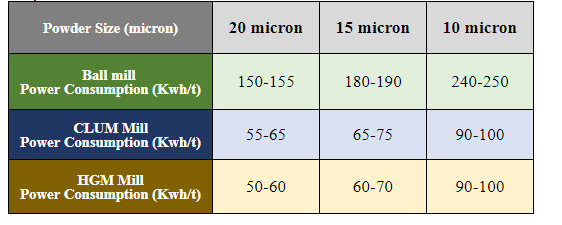

Please find the below sheet to show the power consumption for different mill based on the same size,
ball mill, vertical mill and ultrafine mill power consumptionUnder collecting many factory feedback, the ball mill power consumption is 2.5-3 times than the roller mills.

3. The budget of the project under same capacity


Project Example: Powder Size: 15 micron, Capacity: 4.5--5 t/h
The ball mill plant (2.2*5.5M+ADW6304) cost: USD420,000.00
The HGM Mill (HGM125) cost: USD180,000.00
The CLUM Mill (CLUM1425) cost: USD660,000.00

The above 3 points are the basic difference characters among the mills.
If you want to know more, welcome to connect with us.
