CLIRIK CLUM Series Ultra Fine Vertical Roller Grinding Mill

CLUM Series Ultrafine Powder Vertical Roller Grinding Mill is used for the processing of ultra-fine powder of non-metallic minerals.Forexample,calcite,marble,limestone,barite,talc,kaolin,wollastonite,gypsum,feldspar,etc. CLUM Ultrafine Powder Vertical Roller Grinding Mill CLUM Series Ultrafine Vertical Roller Mill plant can be widely used in such industries as non-metallic mining, chemical and met

Over View
Features
Applications
Technical Data
CLUM Series Ultrafine Powder Vertical Roller Grinding Mill is used for the processing of ultra-fine powder of non-metallic minerals. For example, calcite, marble, limestone, barite, talc, kaolin, wollastonite, gypsum, feldspar, etc.

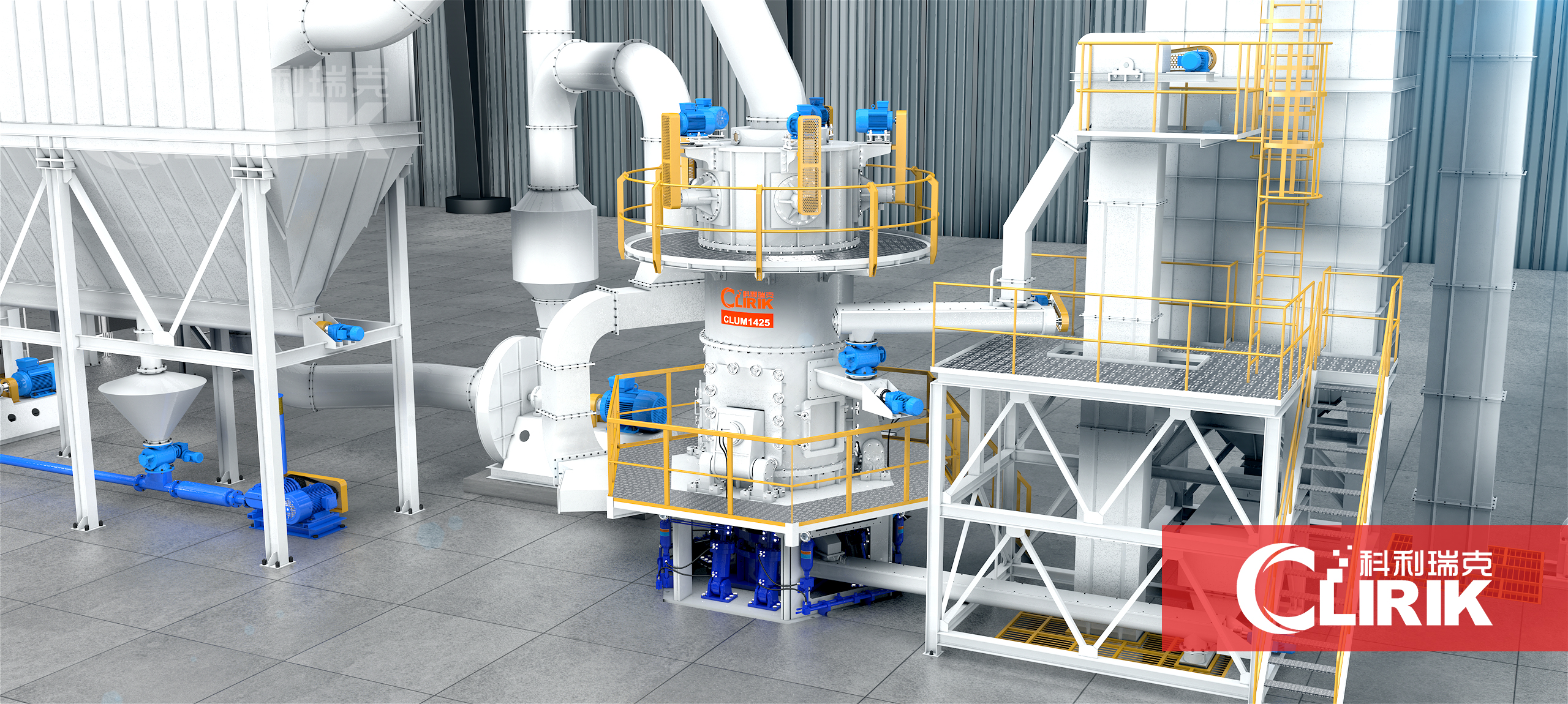

CLIRIK CLUM Series Ultra Fine Vertical Roller Grinding Mill
CLUM Ultrafine Powder Vertical Roller Grinding Mill

CLUM Series Ultrafine Vertical Roller Mill plant can be widely used in such industries as non-metallic mining, chemical and metallurgy. In particular, it is outstanding in the pulverization of white untra-metallic ore. It is capable of providing high quality fillers and additives used in the segments of plastic, rubber, paper-making, PVC, printing ink, coating and pigment industry.

Working principle of CLUM series ultra fine vertical roller grinding mill


The grinding plate is rotated by the main motor via the reducer. Meanwhile, air enters the mill interior via the air inlet. The screw conveyor is responsible for conveying materials. Materials then fall into the center of the grinding plate in rotation. Due to the centrifugal force, the materials evenly move from the center of the grinding plate towards its fringe. While passing across the track in the grinding plate, large blocks of materials are crushed and ground directly by the grinding roller. The fine particles form on the material bed, owing to squeezing, where the inter-particle crushing takes place.
The crushed materials continue to move towards the fringe of the grinding plate until they are taken away by strong air flow at the air ring. Coarse materials will fall on the plate and be ground again.
While the materials along with the air flow pass through the separator located above the grinding plate, the coarse particles return to the grinding plate for re-grind due to the action of the rotor blade; the fine particles along with the air flow will be taken away, collected and discharged as finished product by the powder collector.
Under the centrifugal force, few big particles were thrown out the grinding plate, and fall into the lower grinding chamber, and then is scraped into the slag outlet to be discharged by the scraping plate installed at the bottom of grinding plate.
Rotation speed of classifier impeller is easy to adjust to achieve different size of qualified powder products.

Working principle of CLUM ultra fine vertical roller grinding mill


Construction of CLUM Series Ultrafine Powder Vertical Roller Grinding Mill


CLUM Series Ultrafine Vertical Roller Mill mainly consists of the motor, reducer,grinding rollers, grinding plate, pressure-applying device, classifier, mill body, oil station and electric control system.
Grinding roller: main component used for crushing and grinding materials. Together with the liner plate on the grinding plate, it can provide an effective grinding area.
Grinding plate: Component fixed on the output shaft of the reducer and where the grinding rollers grind materials.
Pressure-applying device: Component used for applying sufficient pressure to the grinding rollers to grind materials.
Classifier: A highly efficient and energy saving powder separation device which has the function of separate qualified finished powders and coarse powders.


Main Powder Production Process of the System


The system process include raw material washing, primary crushing, iron separation, secondary crushing, raw materials storage, weighing, iron removing, medicine filling, ultrafine powders grinding, main unit classifying, pipe conveying, pulse bag filter powders collection, finished powders transporation, packaging, compressed air transporation system, power remote control system and PLC central control system etc.


Processing Materials of CLUM Series Ultrafine Vertical Roller Mill


CLUM Series Ultrafine Vertical Roller Mill is a kind of equipment for processing ultra - fine powder and superfine powder, it is mainly used in medium and low hardness, hardness is lower than 6, non-flammable and non-explosive materials. It is widely used in calcium carbonate, marble, limestone, talc, barite, brucite, wollastonite, pyrophyllite, dolomite, kaolin, lime etc.

CLUM ultra fine powder vertical roller grinding mill for calcite limestone talc marble


CLUM Series Ultra Fine Vertical Roller Grinding Mill VS Ball Mill

Comparison of ultrafine vertical mill & ball mill
Item Ultrafine Vertical Mill Ball Mill
Power Consumption  Lower power consumption by 30-50%: varies from material abradibility and powder particle size.  High power consumption
Product flexibility  Product catagory is adjustable flexiable:  avaiable for production the powders with
 specific surface area range 9,500
(d97=20μm) to 25,000(d97 =10μm)cm2/g.
The different sizes of balls in the ball mill are fixed, only make one single product
Drying Power Higher drying power: New type roller mill, available for larger air volume, which
capable of higher moisture raw material
Due to limited air volume goes thourgh ball mill, extra drying system should be installed for ball mill system.
Equipment Space Required Small, only 50-70% comparble with ball mill system. Large space required.
Input Particle Size  larger size input size available: The input size is refer to the diameter of rollers, larger size raw material available, no need overcrushed.   Smaller size of raw material,the size is subject to maximum diameter of steel balls in it.
Finished Powder Size  Better end products, the mill has higher
and adjustable grinidng pressure, which
comes out bulk ultra fine powders.
lower percentage of ultra fine powders for ball mill
Size Distribution  Most advanced horizontal type air classifier installed on the top of mill which ensure wide range of end products   Old type classifier, steeper particle size distribution
Time of Changing Different Products   Short time to transfer different size powder product with one mill plant Long time for cleaning the system for changing diferent size product.
Finish Products Contamination Higher whiteness, no any grinding parts abrasion Low whiteness, due to abrasion of grinding balls
Grinding Efficiency High efficiency, lower abrasion Lower efficiency
Initial Investment Cost A little higher than ball mill sytem Lower than vertical mill
Running Cost  Low, no grinding media and lower power consumption High, due to grinding media
 and lower power consumption
Noise Low High
Product Whiteness High Low
Product Shape Sophericity  Not very good good
To be effected by external factors Sensitive to metal impurities  Insensitivity


Five Characteristics of  CLUM Series Ultra Fine Vertical Roller Grinding Mill


1.High quality
High content of fine powder, Narrow size e ditribution, stble quality

2.Full intelligence
Siemens auto telecontrol

3.HIgh yield
5~50% higher than similar plant in the market

4.Durable life cycle
20 years of life cycle

5.Lower cost
50% lower for maintenance cost, 15% lower for finished products cost

Advantage of CLUM Series Ultra Fine Vertical Roller Grinding Mill


  • Main unit: Reliable and firm design for main unit base avoid broken risk of main unit foundation bolts, which ensure long life cycle of the mill plant.
  • Main unit reducer: Adopt very firm three-stage drive reducer, multiple protection for the system, to ensure long life of the reducer.
  • All castings of the main unit: casting from top-brand suppliers, excellent quality and durable.
  • Rollers and grinding plate: Adopt high anti-wearing alloy materials for rollers and grinding plate. The lifetime is able to achieve 500,000 tons finished products. The whiteness is almost non influence.
  • The rollers adopt multiple protective design, to avoid of direct contact between grinding rollers and grinding plate.
  • Optimize ultrafine vertical mill system design which ensure high yield and low power consumption.
  • Germany SEW or NORD brand reducer motors makes the system excellent functions.
  • Optimized design of the classifier impeller, and adopt imported anti-resistance plate, which makes classifiers run in the ways of high efficiency and long lifetime.
  • The control system adopts the advanced Siemens WINCC control system.
  • The main unit, blower, classifier adopt variable frequency control system, saving energy and low power consumption.
  • Accurate system by belt feeding weighing ensure high yield and excellent quality of end products.

Application of CLUM Series Ultrafine Powder Vertical Roller Grinding Mill

Applications of CLUM ultra fine powder vertical roller grinding mill
Applications of CLUM ultra fine powder vertical roller grinding mill

Main configuration of CLUM Series Ultra Fine Vertical Roller Grinding Mill

MODEL CLUM1425 CLUM1632 CLUM1736
Main Unit Power (KW) 185~250 280~315 355~410
Roller Qty (PCS) 3 3 3
Impeller Qty (PCS) *                Power (KW) 1*30KW 1*37KW 1*37KW
Multi-head Impeller Qty (PCS) *                Power (KW) 5*15KW 7*15KW 7*(15-18.5KW)
Blower Power
(KW)
160~200 220~250 255~355


Main Technical data of CLUM1425 Ultra Fine Vertical Roller Grinding Mill

Items Ultrafine GCC (CaCo3) Powders
Capacity T/H 11.0-14.0 8.0-10.0 7.0-9.0 5.0-7.0 3.0-4.5
Specific Surface Area cm2/g 11000±500 13500±500 15000±500 17000±500 19000±1000
325 mesh Residual % 0.01 0.005 0.05 0 0
Content <2um  % 34 38 46 54 60
Average Particle size: D50 μm 4.2 3.0 2.4 1.7 1.4
Size Distribution :D97 μm 28 23 19 14 9
Particle Size Cut Point μm 60 42 36 28 18
Mositure % 0.3 below 0.3 below 0.3 below 0.3 below 0.3 below
Power Consumption KW/Ton 37-39 38-48 45-51 50-55 110-125
Testing Method  1. Size distribution:  To be tested by Malvern3000 Laser Analyser
       from MALVERN UK company.
  2.  Specific surface area: Transffered by average particle size, the unit
       is related area of 1g powder.
  3. Average particle size: To be calculated according to particle size
      distribution.
  4. 325 mesh residual: To be marked  by percentage, by putting 1000g wet
       powder samples through 325 mesh sieve.
  5. Mositure: Put 5g sample on moisture analyzer, in 6 minutes with
      temperature 150℃
   6. Application materials: limestone, calcium carbonate, dolomite, talc
       barite, wollastonite, brucite, calcium hydroxide, gypsum, coking coal,
        slag, phosphate and other minerals.


Main Technical data of CLUM1632 Ultra Fine Vertical Roller Grinding Mill

Items Ultrafine GCC (CaCo3) Powders
Capacity T/H 13.0-17.0 11-13 9.0-10.0 7.0-8.0
Specific Surface Area cm2/g 11000±500 13500±500 15000±500 17000±500
325 mesh Residual % 0.01 0.005 0.05 0
Content <2um  % 34 38 46 54
Average Particle size: D50 μm 4.2 3.0 2.4 1.7
Size Distribution :D97 μm 28 23 19 14
Particle Size Cut Point μm 60 42 36 28
Mositure % below 0.3  below 0.3  below 0.3  below 0.3
Power Consumption KW/Ton 37~39 38~48 45~51 50~55
Testing Method  1. Size distribution:  To be tested by Malvern3000 Laser Analyser
       from MALVERN UK company.
  2.  Specific surface area: Transffered by average particle size, the unit
       is related area of 1g powder.
  3. Average particle size: To be calculated according to particle size
      distribution.
  4. 325 mesh residual: To be marked  by percentage, by putting 1000g wet
       powder samples through 325 mesh sieve.
  5. Mositure: Put 5g sample on moisture analyzer, in 6 minutes with
      temperature 150℃
   6. Application materials: limestone, calcium carbonate, dolomite, talc
       barite, wollastonite, brucite, calcium hydroxide, gypsum, coking coal,
        slag, phosphate and other minerals.

Main Technical data of CLUM1736 Ultra Fine Vertical Roller Grinding Mill

Items Ultrafine GCC (CaCo3) Powders
Capacity T/H 14.0-19.0 12.5-14.5 10.0-11.0
Specific Surface Area cm2/g 11000±500 13500±500 15000±500
325 mesh Residual % 0.01 0.005 0.05
Content <2um  % 34 38 46
Average Particle size: D50 μm 4.2 3.0 2.4
Size Distribution :D97 μm 28 23 19
Particle Size Cut Point μm 60 42 36
Mositure % below 0.3  below 0.3  below 0.3
Power Consumption KW/Ton 37~39 38~48 45~51
Testing Method  1. Size distribution:  To be tested by Malvern3000 Laser Analyser
       from MALVERN UK company.
  2.  Specific surface area: Transffered by average particle size, the unit
       is related area of 1g powder.
  3. Average particle size: To be calculated according to particle size
      distribution.
  4. 325 mesh residual: To be marked  by percentage, by putting 1000g wet
       powder samples through 325 mesh sieve.
  5. Mositure: Put 5g sample on moisture analyzer, in 6 minutes with
      temperature 150℃
   6. Application materials: limestone, calcium carbonate, dolomite, talc
       barite, wollastonite, brucite, calcium hydroxide, gypsum, coking coal,
        slag, phosphate and other minerals.
