HGM Ultrafine Grinding Mill
HGM Ultrafine Grinding Mill is a new generation of ultra-fine powder processing equipment. It overcomes the drawbacks of complex processes and high energy consumption found in traditional jet mills and ball mills, achieving high efficiency at a lower cost.
Capacity:
0.5-4 5T/H
Maximum feed particle size:
20mm
Output fineness:
150-3000mesh （5-100 microns）
Scope of application:
Medium to low hardness, Mohs hardness ≤ 6, moisture content ≤ 6%, non-flammable and non-explosive brittle materials, such as marble, calcium carbonate, calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, phosphate rock, barite, gypsum, carbon black, fluorite, and more than 100 other materials.
HGM Ultrafine Grinding Mill
HGM Ultrafine Grinding Mill is a new generation of ultra-fine powder processing equipment. It overcomes the drawbacks of complex processes and high energy consumption found in traditional jet mills and ball mills, achieving high efficiency at a lower cost.
Capacity:
0.5-45T/H
Maximum feed particle size:
20mm
Output fineness:
150-3000mesh （5-100 microns）
Capacity:
Medium to low hardness, Mohs hardness ≤ 6, moisture content ≤ 6%, non-flammable and non-explosive brittle materials, such as marble, calcium carbonate, calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, phosphate rock, barite, gypsum, carbon black, fluorite, and more than 100 other materials.
Product Advantages
Ultra-Stable Design
Symmetrical architecture and high-precision bearing system delivering stability even during 24/7 heavy-duty operations
Precision Classifying
The turbine type ultra-fine classifier can achieve high efficiency, accurate cutting size and no spillover of coarse powder.
Ultra-Fine Output
VFD control, convenient for the adjustment control, the finished products can reach D97≤5um at most.
Intelligent Control
Automatic feedback with fast and stable conversion of finished products; intelligent control,saving labor costs.
Eco-Friendly System
The efficient pulse bag filter has good dust removal effect and meets the environmental requirements of many countries.
Efficient Reducer Transmission
Reducer transmission ensures smoother, more stable operation. Achieve higher output with minimal energy waste.
Product Advantages
Ultra-Stable Design
Symmetrical architecture and high-precision bearing system delivering stability even during 24/7 heavy-duty operations
Precision Classifying
The turbine type ultra-fine classifier can achieve high efficiency, accurate cutting size and no spillover of coarse powder.
Ultra-Fine Output
VFD control, convenient for the adjustment control, the finished products can reach D97≤5um at most.
Intelligent Control
Automatic feedback with fast and stable conversion of finished products; intelligent control,saving labor costs.
Eco-Friendly System
The efficient pulse bag filter has good dust removal effect and meets the environmental requirements of many countries.
Efficient Reducer Transmission
Reducer transmission ensures smoother, more stable operation. Achieve higher output with minimal energy waste.
Parameter
Parameter
| Model | HGM80 | HGM100L-II | HGM100P | HGM100L-H | HGM125L | HGM125L-H | HGM1680L | HGM1680L-H |
| Ring Inner Diameter (mm) | 800 | 1000 | 1000 | 1000 | 1250 | 1250 | 1680 | 1680 |
| Grinding Layer (layers) | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Roller Number (piece) | 21 | 28 | 28 | 28 | 32 | 32 | 36 | 36 |
| Main Shaft Speed (r.p.m) | 230-240 | 180-200 | 180-200 | 180-200 | 135-155 | 135-155 | 120-130 | 120-130 |
| Input Size (mm) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
| Finished Size (μm/mesh) | 74-6.5 (200-2000) | 74-6.5 (200-2000) | 74-6.5 (200-2000) | 13-5 (1000-2500) | 74-69 (200-1500) | 13-5 (1000-2500) | 74-12 (200-1250) | 18-5 (800-2500) |
| Capacity (ton/hour) | 0.5-5.5 | 1.0-10 | 1.2-11 | 3-0.8 | 16-4 | 1-4 | 6-26 | 1.8-8 |
| Line Dimension (LWH, m) | 15.1*4.2*7.3 | 21.5*3.6*8.5 | 21*4.1*8.5 | 22*3.8*8.5 | 27.3*4.4*9.9 | 27.3*4.4*9.9 | 31.7*7.7*12.6 | 32.7*7.9*12.6 |
| Loading Power (KW) | 142 | 242 | 267 | 257 | 401 | 401 | 685 | 685 |
| Mill Motor (KW) | 75 | 132 | 2*75 | 132 | 185 | 185 | 315 | 315 |
| Classifier Motor (KW) | 18.5 | 30 | 37 | 3*15 | 75 | 15*5 | 132 | 6*22 |
| Blower Motor (KW) | 45 | 75 | 75 | 75 | 132 | 132 | 220 | 220 |
Note: The above data is based on the CaCO₃ powder factories’ feedback. Different materials vary greatly; this information is for reference only.
Raw Materials & Applications
HGM Ultrafine Grinding Mill is suitable for grinding and processing of most and soft non-inflammable and non-explosive brittle materials, such as calcium carbonate, limestone, gypsum, kaolin, bentonite, calcite, dolomite, talc, mica, attapulgite, barite and graphite.ect
It has been widely applied in paint, coating, paper-making, pigment,rubber, plastic, padding, cable, cosmetic, chemical supplies and many other industrial fields.
Focus on the field of micro powder grinding !
Industry Applications
HGM Ultrafine Grinding Mill is suitable for grinding and processing of modest and soft non-inflammable and non-explosive brittle materials, such as calcium carbonate, limestone, gypsum, kaolin, bentonite, calcite, dolomite, talc, mica, attapulgite, barite and graphite.
It has been widely applied in paint, coating, paper-making, pigment,rubber, plastic, padding, cable, cosmetic, chemical supplies and many other industrial fields.
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Working Principle
HGM Ultrafine Grinding Mill has been proved a new type of mill with outstanding features and stable quality by thousands of customers. It was designed by our engineer and technicians on the basis of multiple innovation, test and experience, and absorbed many advantages of manufacturing technique of mills domestic and aboard. It is the ideal equipment for production of ultrafine powder in the fields of mining, chemical industry, metallurgy and construction etc.

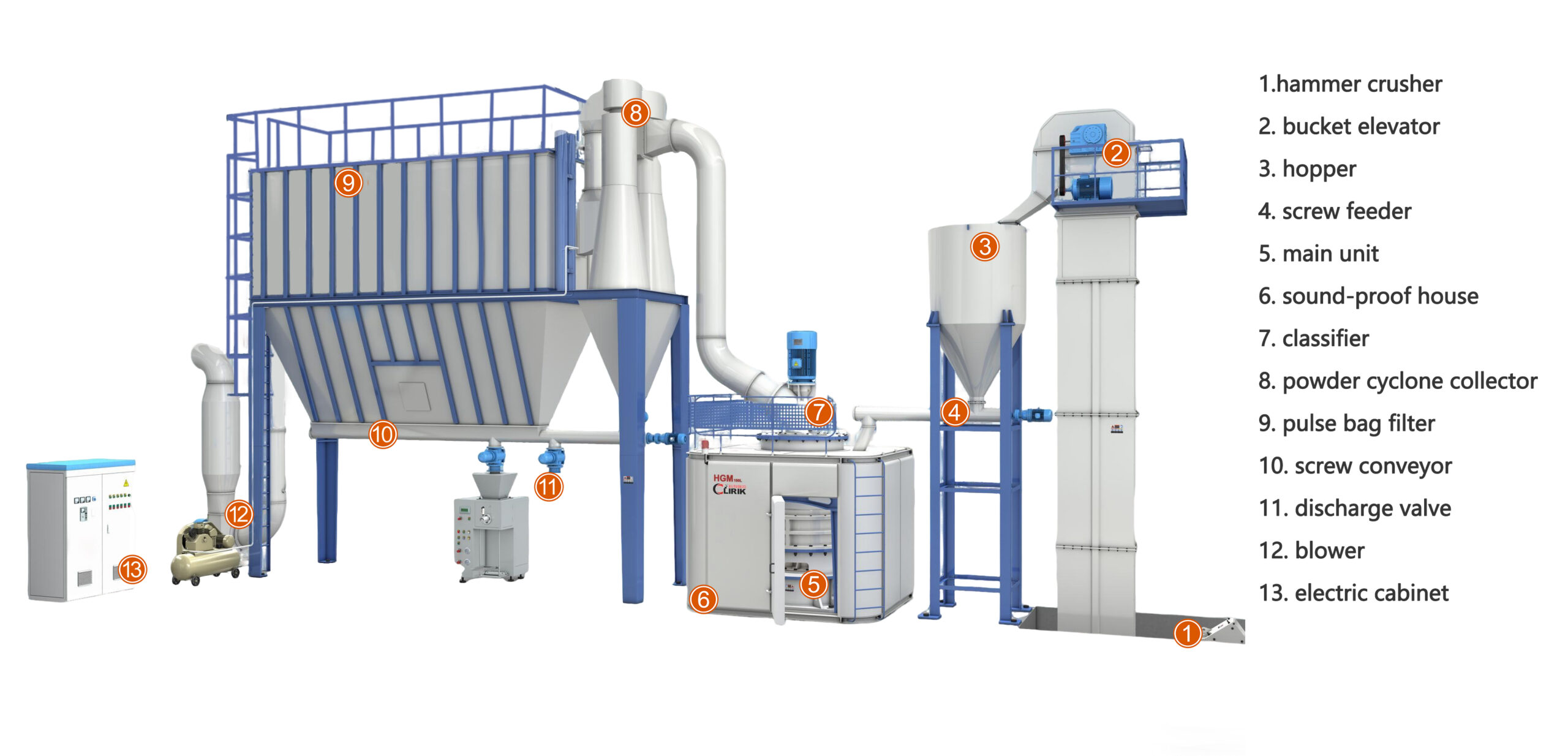

HGM Ultrafine Grinding Mill mainly consist of crusher, bucket elevator, storage hopper, belt feeder, main unit, sound-proof room, classifier, powder collector, bag filter, muffler, blower and electric cabinet.
