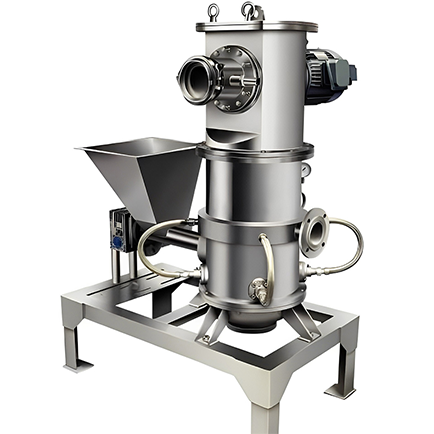

CLJM-L Fluidized Bed Jet Mill
Fluidized Bed Jet Mill is suitable to pulverize the hard, abrasive, or heat-sensitive materials, producing ultrafine powders with precise particle size control. This technology is ideal for producing high-purity products with narrow particle size distributions, typically within the range of d97 = 2-40 μm.
Capacity:
0.5-600 kg/h
Maximum feed particle size:
5mm
Output fineness:
0.5-75 μm
Applicable Materials:
Suitable for dry ultrafine grinding of various materials, especially effective for materials with viscosity. Widely used in chemicals, pharmaceuticals, food, minerals and other industries.

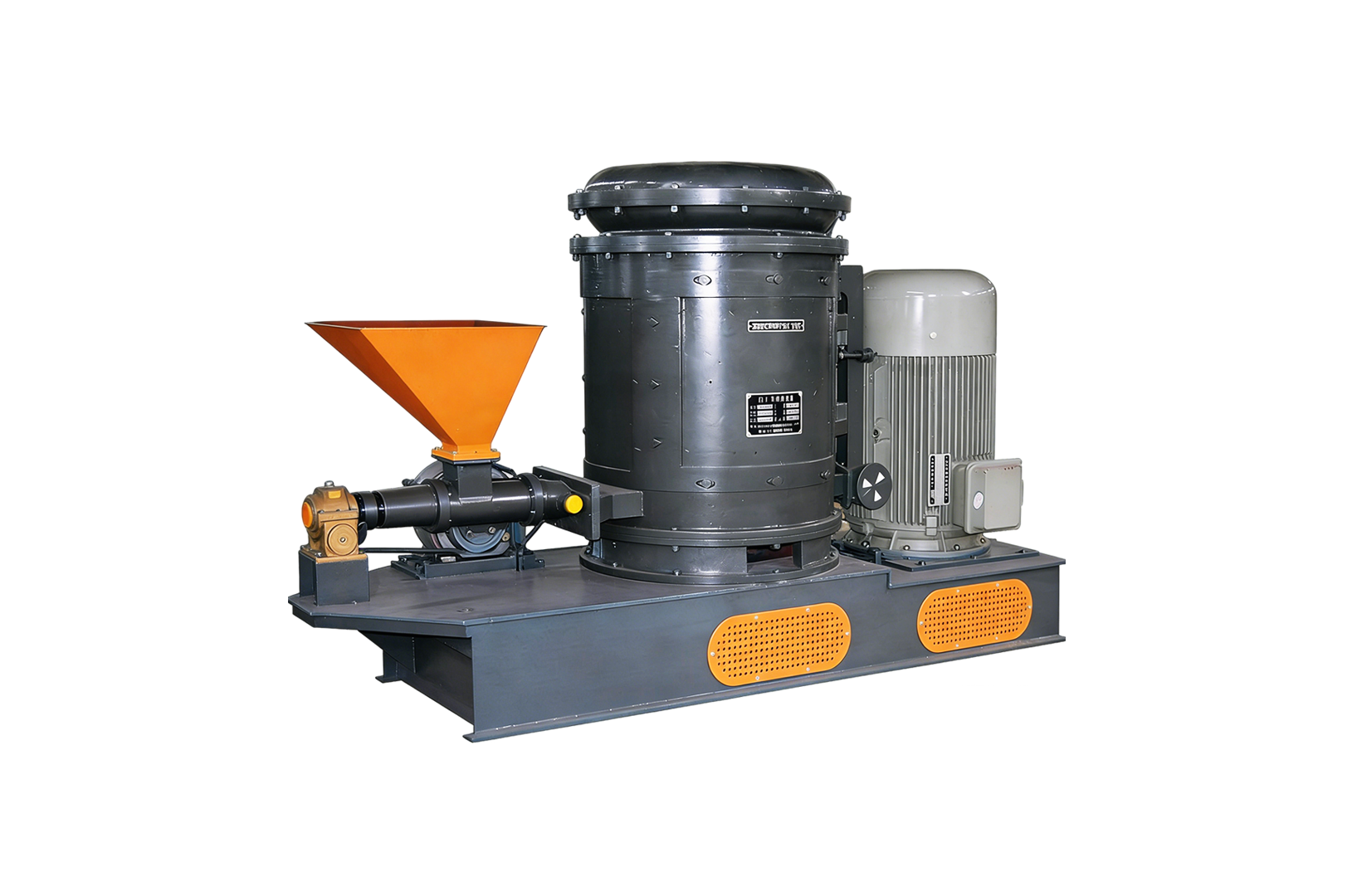

CLCM Vortex Air Classifier Mill
CLCM is one of today’s most widely used grinding machines for reducing dry fine chemicals, food products, and other materials. It combines a mechanical impact mill with dynamic air classifier for middle-small volume continuous processing. After several years experience, it can be customized to different materials. The mill can be equipped with different grinding tracks as well as different impact elements, depending on the product and final product specs.
Capacity:
0.5-600 kg/h
Maximum feed particle size:
5mm
Output fineness:
0.5-75 μm
Applicable Materials:
Suitable for dry ultrafine grinding of various materials, especially effective for materials with viscosity. Widely used in chemicals, pharmaceuticals, food, minerals and other industries.
Product Advantages
Ultrafine Fineness
With 80m/s line speeds, the patented classifier ensures precise d97 < 2 μm output and narrow particle distribution.
High Purity / No Contamination
Autogenous grinding ensures zero contamination via particle-to-particle impact, making it perfect for high-purity materials.
Wear-Free Operation
Minimal wall contact reduces wear. For abrasive materials, durable ceramic or Vulkollan linings ensure long-term service.
Low Temperature Grinding
Gas expansion creates a cooling Joule-Thomson effect, making this mill ideal for heat-sensitive or low-melting materials.
Steep Particle Size Distribution
The integrated classifier removes oversized particles, ensuring a sharp, consistent size profile and high quality.
Flexible Operation
Reducer transmission ensures smooth, stable operation, delivering higher output with minimal energy waste.
Product Advantages
Ultrafine Fineness
With 80m/s line speeds, the patented classifier ensures precise d97 < 2 μm output and narrow particle distribution.
High Purity / No Contamination
Autogenous grinding ensures zero contamination via particle-to-particle impact, making it perfect for high-purity materials.
Wear-Free Operation
Minimal wall contact reduces wear. For abrasive materials, durable ceramic or Vulkollan linings ensure long-term service.
Low Temperature Grinding
Gas expansion creates a cooling Joule-Thomson effect, making this mill ideal for heat-sensitive or low-melting materials.
Steep Particle Size Distribution
The integrated classifier removes oversized particles, ensuring a sharp, consistent size profile and high quality.
Flexible Operation
Reducer transmission ensures smooth, stable operation, delivering higher output with minimal energy waste.
Parameter
Parameter
| Model | Air Consumption (m3/min) | Working Pressure (mpa) | Feed Size (mesh) | Output Size (um) | Capacity (kg/h) | Motor(kw) |
| CLJM-100 | 3 | 0.75-0.85 | 50-325 | 0.5-75 | 0.5-10 | 25 |
| CLJM-200 | 4.5 | 0.75-0.85 | 50-325 | 0.5-75 | 10-100 | 40 |
| CLJM-300 | 6 | 0.75-0.85 | 50-325 | 0.5-75 | 80-120 | 60 |
| CLJM-400 | 10 | 0.75-0.85 | 50-325 | 0.5-75 | 50-260 | 95 |
| CLJM-600 | 20 | 0.75-0.85 | 50-325 | 0.5-75 | 80-450 | 188 |
| CLJM-800 | 40 | 0.75-0.85 | 50-325 | 0.5-75 | 200-600 | 380 |
Raw Materials & Applications
Talc, Calcite, Calcium Carbonate, Kaolin, Mica, Barite, Quartz, Zircon Sand, Alumina, Silicon Carbide,Activated Carbon, Graphite, Iron Oxide, Titanium Dioxide, Pesticides, Oxalates, Silica Gel, Pigments (Organic & Inorganic),Active Pharmaceutical Ingredients (APIs), Excipients, Inhalation-grade drugs,Lithium Cobalt Oxide, Manganese Oxide, Lithium Iron Phosphate, Graphite for anodes,Tungsten Carbide, Cobalt, Molybdenum, Metal Powders for Additive Manufacturing,Powder Coatings, Toner, Spices, Starches, Wax
Focus on the field of micro powder grinding !
Industry Applications
Talc, Calcite, Calcium Carbonate, Kaolin, Mica, Barite, Quartz, Zircon Sand, Alumina, Silicon Carbide,Activated Carbon, Graphite, Iron Oxide, Titanium Dioxide, Pesticides, Oxalates, Silica Gel, Pigments (Organic & Inorganic),Active Pharmaceutical Ingredients (APIs), Excipients, Inhalation-grade drugs,Lithium Cobalt Oxide, Manganese Oxide, Lithium Iron Phosphate, Graphite for anodes,Tungsten Carbide, Cobalt, Molybdenum, Metal Powders for Additive Manufacturing,Powder Coatings, Toner, Spices, Starches, Wax
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Working Principle
The raw materials are released and transmitted by the feeding belt conveyor from the raw material hopper, with the weight of the materials being controlled by the belt scale and the tramp iron in the materials being removed by the iron remover. Subsequently, the materials are sent to the elevator, via the air lock valve and screw conveyor, into the mill interior for pulverization. After pulverization, the qualified powder separated from the powder classifier is transmitted into the tank-type pulse dust collector, then after the screw conveyor and discharge valve they are transported to the final product hopper, packed as sold directly. A small amount of coarse materials (colloquially “slag”) is released out by the mill unit, and re-feed into the machine to be grinded again.
HGM Ultrafine Grinding Mill mainly consist of raw materials hopper, belt weigher, bucket elevator, screw conveyor, screw feeder, air-lock discharge valve, main unit, pulse dust collector, induced dtaft fan, pulse dust collector, silencer.
01
Step 1: Compressed Air Treatment
The fluid energy comes from the compressed air that has been filtered, refrigerated and dried.
02
Step 2: Energy Conversion
This pressurized gas is forced through a series of specially designed nozzles, converting the pressure energy into kinetic energy.
03
Step 3: Material Feeding
The material is introduced into the grinding chamber via venturi injector.
04
Step 4: Collection & Recirculation
The particles collide with each other and get pulverized under a high-speed jet stream.
05
Step 5: Airflow Conveying
The resulting fine particles leave the grinding chamber with the gas stream.
06
Step 6: Separation & Collection
After the particles and the gas are separated, the micronized product gets collected in a container. The filtered gas is vented.
Working Principle
The raw materials are released and transmitted by the feeding belt conveyor from the raw material hopper, with the weight of the materials being controlled by the belt scale and the tramp iron in the materials being removed by the iron remover. Subsequently, the materials are sent to the elevator, via the air lock valve and screw conveyor, into the mill interior for pulverization. After pulverization, the qualified powder separated from the powder classifier is transmitted into the tank-type pulse dust collector, then after the screw conveyor and discharge valve they are transported to the final product hopper, packed as sold directly. A small amount of coarse materials (colloquially “slag”) is released out by the mill unit, and re-feed into the machine to be grinded again.
HGM Ultrafine Grinding Mill mainly consist of raw materials hopper, belt weigher, bucket elevator, screw conveyor, screw feeder, air-lock discharge valve, main unit, pulse dust collector, induced dtaft fan, pulse dust collector, silencer.
01
Step 1: Compressed Air Treatment
The fluid energy comes from the compressed air that has been filtered, refrigerated and dried.
02
Step 2: Energy Conversion
This pressurized gas is forced through a series of specially designed nozzles, converting the pressure energy into kinetic energy.
03
Step 3: Material Feeding
The material is introduced into the grinding chamber via venturi injector.
04
Step 4: Collection & Recirculation
The particles collide with each other and get pulverized under a high-speed jet stream.
05
Step 5: Airflow Conveying
The resulting fine particles leave the grinding chamber with the gas stream.
06
Step 6: Separation & Collection
After the particles and the gas are separated, the micronized product gets collected in a container. The filtered gas is vented.
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote troubleshooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote trouble shooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
Honors and Qualifications
Honors and Qualifications
Other Products
CLUM Ultrafine Vertical Roller Mill
CLRM Raymond Roller Mill
Air Classifier Mill
Jet Mill
FAQ
1. What materials is CLJM-L suitable for?
Suitable for high-hardness and high-value materials such as silicon carbide, zirconia, alumina, rare earth materials, hard alloys, and heat-sensitive materials. Also effective for materials with viscosity.
2. Can it grind high-hardness materials?
Yes. The high-speed airflow impacts at Mach 2.5 or above, effectively crushing materials with Mohs hardness up to 7-8, such as silicon carbide and corundum.
3. How to ensure product purity for high-value materials?
No grinding media is used. Crushing is achieved by particle-to-particle impact and friction against the crushing wall, eliminating the risk of media contamination.
4. What is the fineness range?
0.5-75 μm (200-25000 mesh). Easy to obtain 1-10 μm particles, and even sub-micron particles for some materials.
5. What is the capacity range?
0.5-800 kg/h depending on the model and material characteristics.
FAQ
1. What materials is CLJM-L suitable for?
Suitable for high-hardness and high-value materials such as silicon carbide, zirconia, alumina, rare earth materials, hard alloys, and heat-sensitive materials. Also effective for materials with viscosity.
2. Can it grind high-hardness materials?
Yes. The high-speed airflow impacts at Mach 2.5 or above, effectively crushing materials with Mohs hardness up to 7-8, such as silicon carbide and corundum.
3. How to ensure product purity for high-value materials?
No grinding media is used. Crushing is achieved by particle-to-particle impact and friction against the crushing wall, eliminating the risk of media contamination.
4. What is the fineness range?
0.5-75 μm (200-25000 mesh). Easy to obtain 1-10 μm particles, and even sub-micron particles for some materials.
5. What is the capacity range?
0.5-800 kg/h depending on the model and material characteristics.
