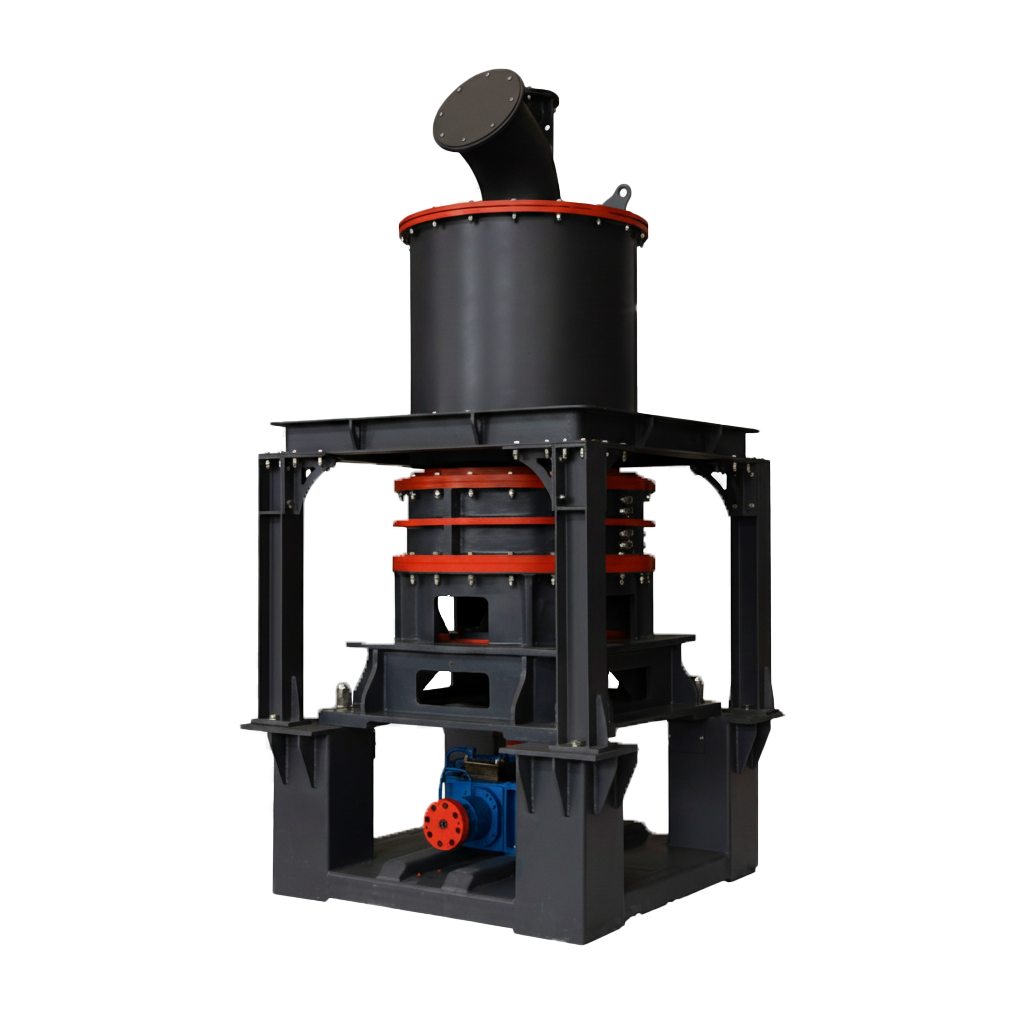

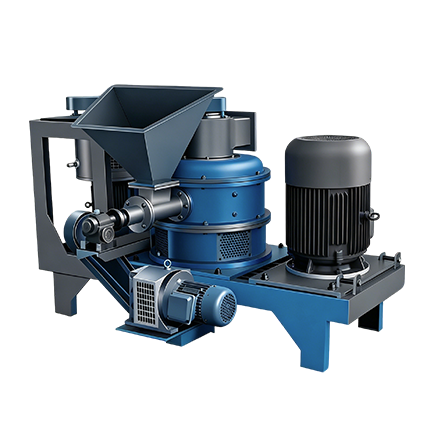

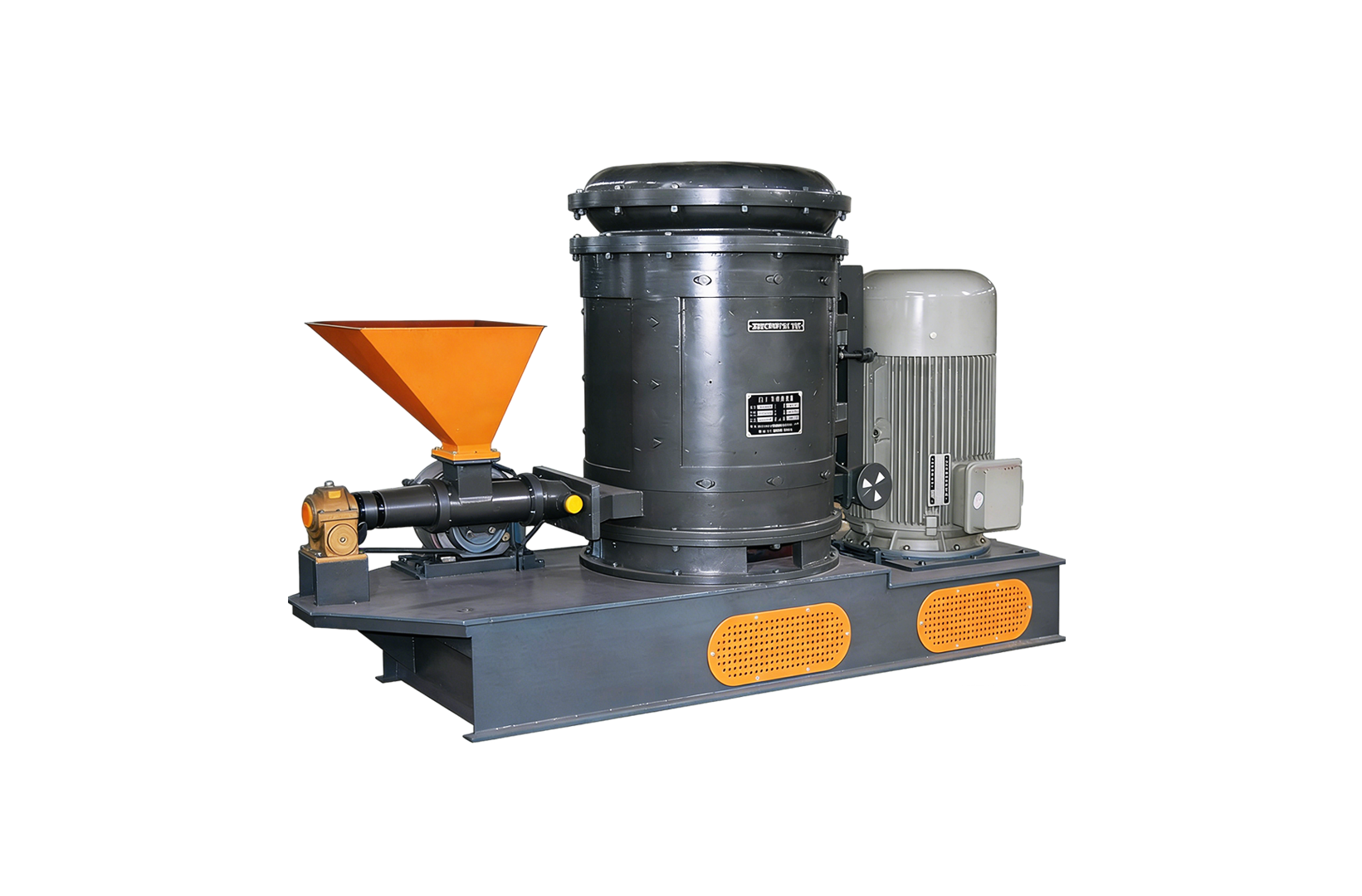

CLCM Vortex Air Classifier Mill
CLCM is one of today’s most widely used grinding machines for reducing dry fine chemicals, food products, and other materials. It combines a mechanical impact mill with dynamic air classifier for middle-small volume continuous processing. After several years experience, it can be customized to different materials. The mill can be equipped with different grinding tracks as well as different impact elements, depending on the product and final product specs.
Capacity:
10-5000 kg/h
Maximum feed particle size:
5mm
Output fineness:
3-300 μm
Applicable Materials:
Suitable for calcite, talc, gypsum, quartz, starch, sugar, resin, pigment, API, food additives, powder coatings, graphite, carbon black and other materials.

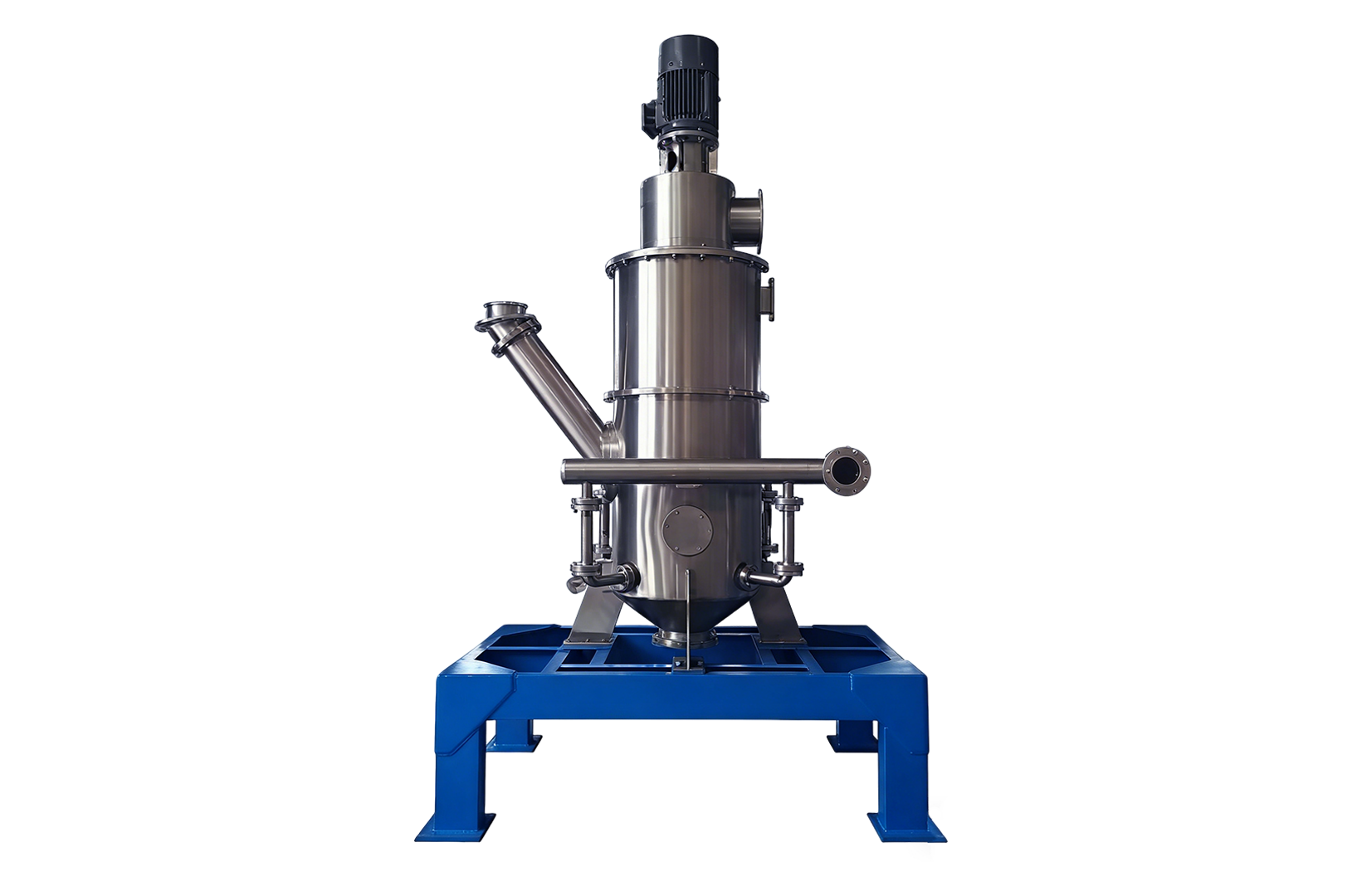

CLCM Vortex Air Classifier Mill
CLCM is one of today’s most widely used grinding machines for reducing dry fine chemicals, food products, and other materials. It combines a mechanical impact mill with dynamic air classifier for middle-small volume continuous processing. After several years experience, it can be customized to different materials. The mill can be equipped with different grinding tracks as well as different impact elements, depending on the product and final product specs.
Capacity:
10-5000 kg/h
Maximum feed particle size:
5mm
Output fineness:
3-300 μm
Applicable Materials:
Suitable for calcite, talc, gypsum, quartz, starch, sugar, resin, pigment, API, food additives, powder coatings, graphite, carbon black and other materials.
Product Advantages
Precise Particle Size Control
Equipped with dynamic air classifier, fineness adjustable by changing classifier speed and airflow volume (3-300μm).
Multi-function Integration
Cooling, drying, grinding and classifying integrated in one unit.
High Purity Processing
Key parts can be made of ceramic, ensuring no metal contamination.
Versatile Grinding Options
Pin, hammer, teeth or other grinding discs available for different materials.
High Efficiency & Low Energy
Combined grinding and classifying process improves efficiency and reduces energy consumption.
Easy Maintenance
Reducer transmission ensures smoother, more stable operation. Achieve higher output with minimal energy waste.
Product Advantages
Precise Particle Size Control
Equipped with dynamic air classifier, fineness adjustable by changing classifier speed and airflow volume (3-300μm).
Multi-function Integration
Cooling, drying, grinding and classifying integrated in one unit.
High Purity Processing
Key parts can be made of ceramic, ensuring no metal contamination.
Versatile Grinding Options
Pin, hammer, teeth or other grinding discs available for different materials.
High Efficiency & Low Energy
Combined grinding and classifying process improves efficiency and reduces energy consumption.
Easy Maintenance
Reducer transmission ensures smoother, more stable operation. Achieve higher output with minimal energy waste.
Parameter
Parameter
| Model | Motor(kw) – Main Unit | Motor(kw) – Classifier | Motor(kw) – Feeder | Rotated Speed(rpm) – Main Unit | Rotated Speed(rpm) – Classifier | Rotated Speed(rpm) – Feeder |
| CLCM-15 | 7.5 | 0.75 | 0.55 | 7000 | 800-3000 | 20-100 |
| CLCM-20 | 11 | 1.1 | 0.55 | 5500 | 750-3100 | 20-100 |
| CLCM-30 | 22 | 4 | 0.55 | 4000 | 700-2800 | 20-100 |
| CLCM-45 | 30 | 5.5 | 0.55 | 3500 | 650-2600 | 20-100 |
| CLCM-60 | 45 | 7.5 | 0.55 | 3000 | 600-2400 | 20-100 |
| CLCM-100 | 55-75 | 11 | 1.1 | 2000 | 500-2000 | 20-100 |
| CLCM-125 | 90-110 | 15 | 1.1 | 1600 | 400-1600 | 20-100 |
| Model | Diameter of rotor disc (mm) | Diameter of gear ring (mm) | Diameter of classifier (mm) | Linear speed of the outermost end of the rotor disc (m/s) |
| CLCM-15 | 300 | 366 | 175 | 110 |
| CLCM-20 | 300 | 366 | 175 | 87 |
| CLCM-30 | 400 | 470 | 242 | 84 |
| CLCM-45 | 550 | 601 | 274 | 102 |
| CLCM-60 | 700 | 774 | 350 | 110 |
| CLCM-100 | 1000 | 1080 | 414 | 106 |
| CLCM-125 | 1200 | 1295 | 461 | 101 |
| Model | Air volume (m3/h)(max) | Product fineness (um) | Output (kg/h) | Main Unit Dimension (L*W*H mm) |
| CLCM-15 | 700-1200 | 3-300 | 10-200 | 1450*900*1000 |
| CLCM-20 | 1300-2800 | 5-300 | 20-600 | 1450*900*1000 |
| CLCM-30 | 2200-3600 | 5-300 | 30-1000 | 1740*1190*1100 |
| CLCM-45 | 3600-6500 | 10-300 | 40-1200 | 1940*1250*1170 |
| CLCM-60 | 4000-7500 | 10-300 | 50-1500 | 2150*1460*1380 |
| CLCM-100 | 8000-12000 | 10-300 | 80-3000 | 2840*2150*1760 |
| CLCM-125 | 12000-16000 | 10-300 | 120-5000 | 3000*2380*2000 |
Note: The above data is based on the standard model. The mill can be adjusted to match the client’s requirement and material characters.
Raw Materials & Applications
With over 1000 references worldwide, it is used in the most industries:Bisphenol, tartaric acid, E-PVC, fungicides, herbicides, stearates,Epoxy, polyester, hybrids, UV-curing acrylates, polyamide,Sugar, cacao, starch, fish meal, xanthan, guar flour, lactose,Face powder, ascorbic acid, tartaric acid,Talc, kaolin, calcium sulphate, bauxite, limestone
Focus on the field of micro powder grinding !
Industry Applications
With over 1000 references worldwide, it is used in the most industries:Bisphenol, tartaric acid, E-PVC, fungicides, herbicides, stearates,Epoxy, polyester, hybrids, UV-curing acrylates, polyamide,Sugar, cacao, starch, fish meal, xanthan, guar flour, lactose,Face powder, ascorbic acid, tartaric acid,Talc, kaolin, calcium sulphate, bauxite, limestone

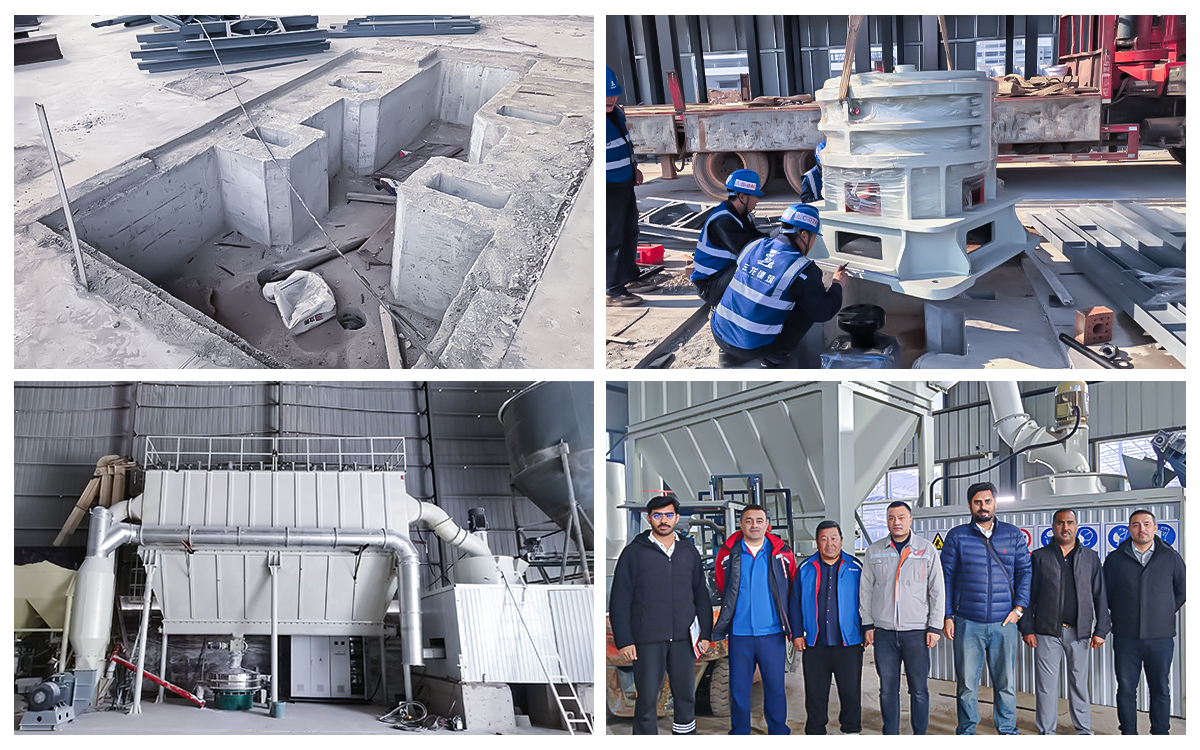

Project Cases

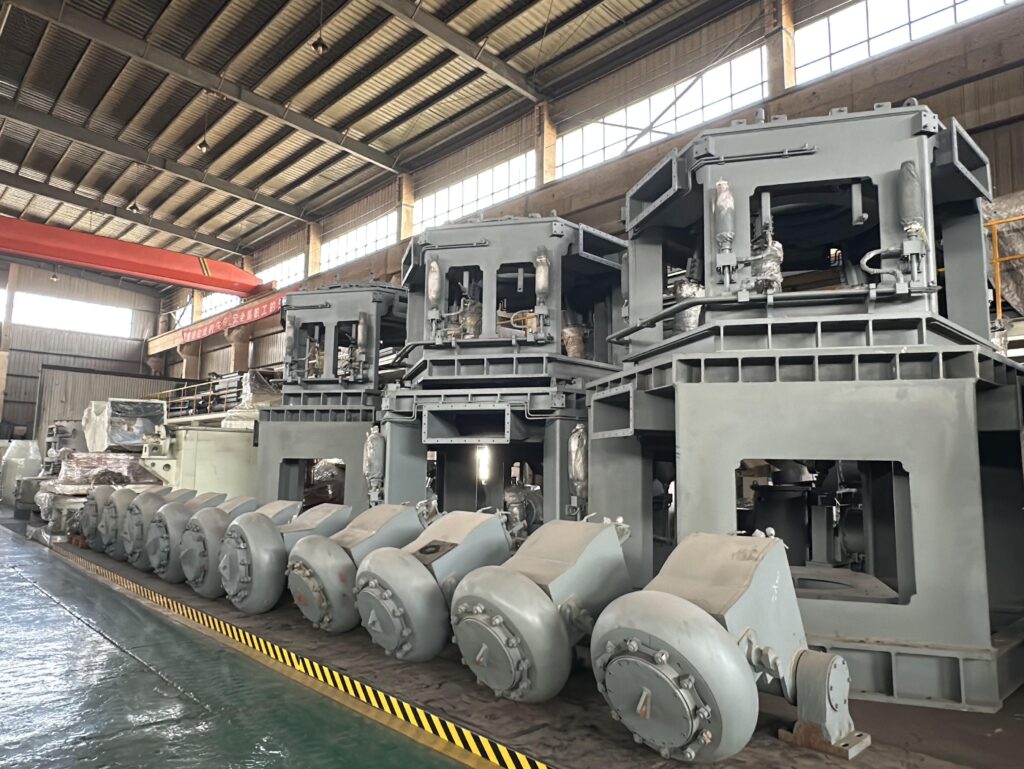

HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing

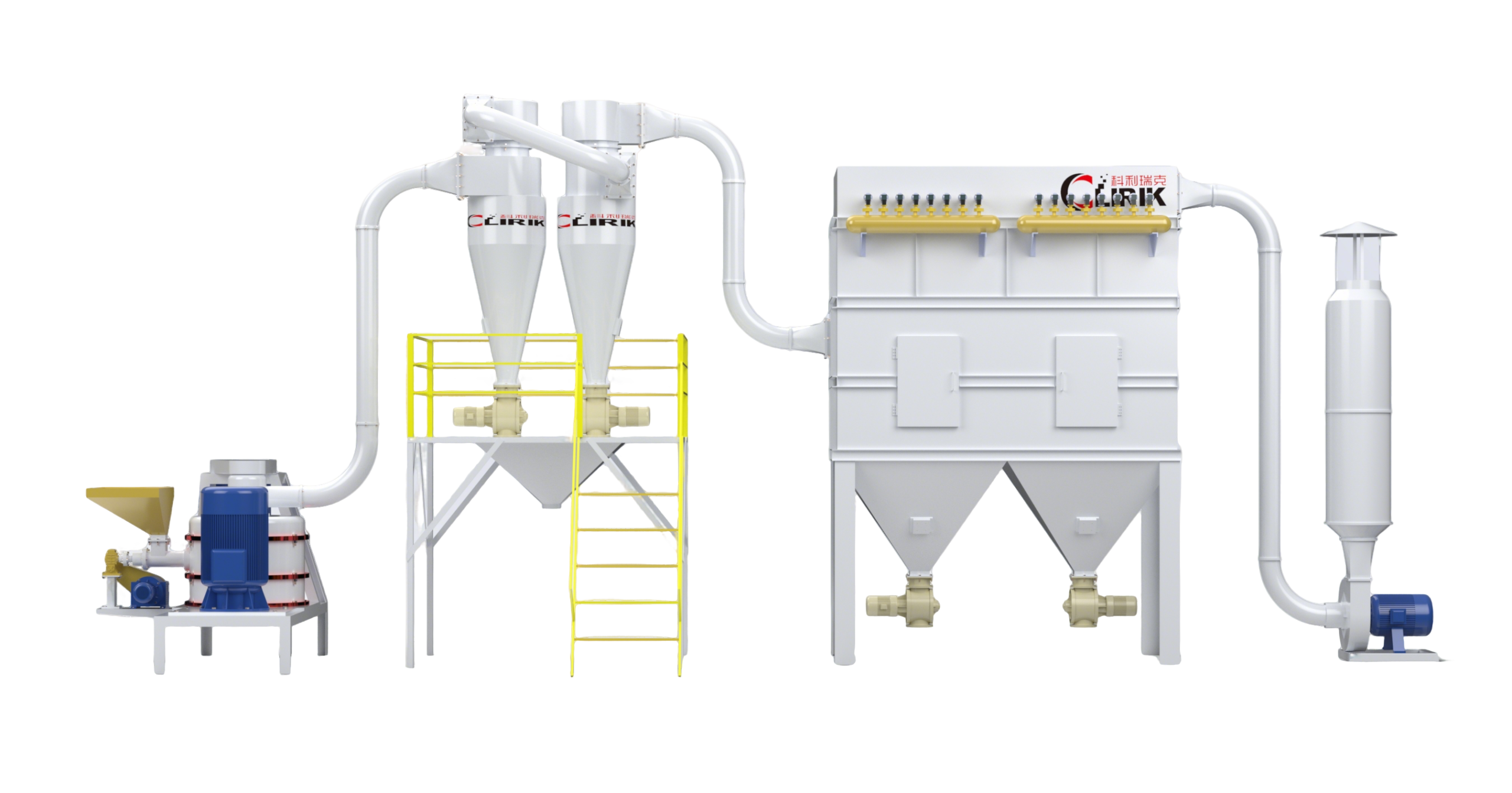

Working Principle
The raw materials are released and transmitted by the feeding belt conveyor from the raw material hopper, with the weight of the materials being controlled by the belt scale and the tramp iron in the materials being removed by the iron remover. Subsequently, the materials are sent to the elevator, via the air lock valve and screw conveyor, into the mill interior for pulverization. After pulverization, the qualified powder separated from the powder classifier is transmitted into the tank-type pulse dust collector, then after the screw conveyor and discharge valve they are transported to the final product hopper, packed as sold directly. A small amount of coarse materials (colloquially “slag”) is released out by the mill unit, and re-feed into the machine to be grinded again.

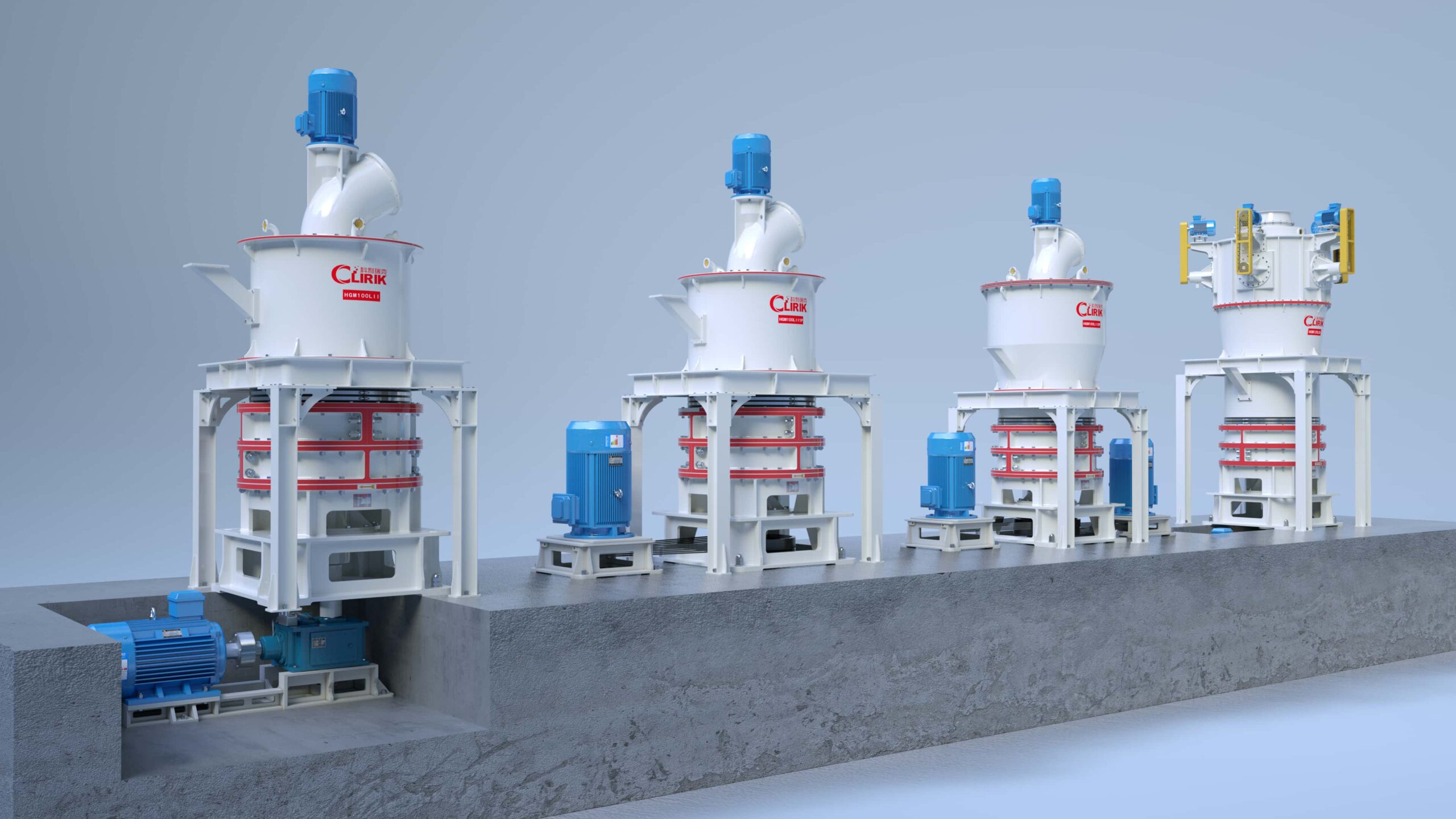

HGM Ultrafine Grinding Mill mainly consist of raw materials hopper, belt weigher, bucket elevator, screw conveyor, screw feeder, air-lock discharge valve, main unit, pulse dust collector, induced dtaft fan, pulse dust collector, silencer.
01

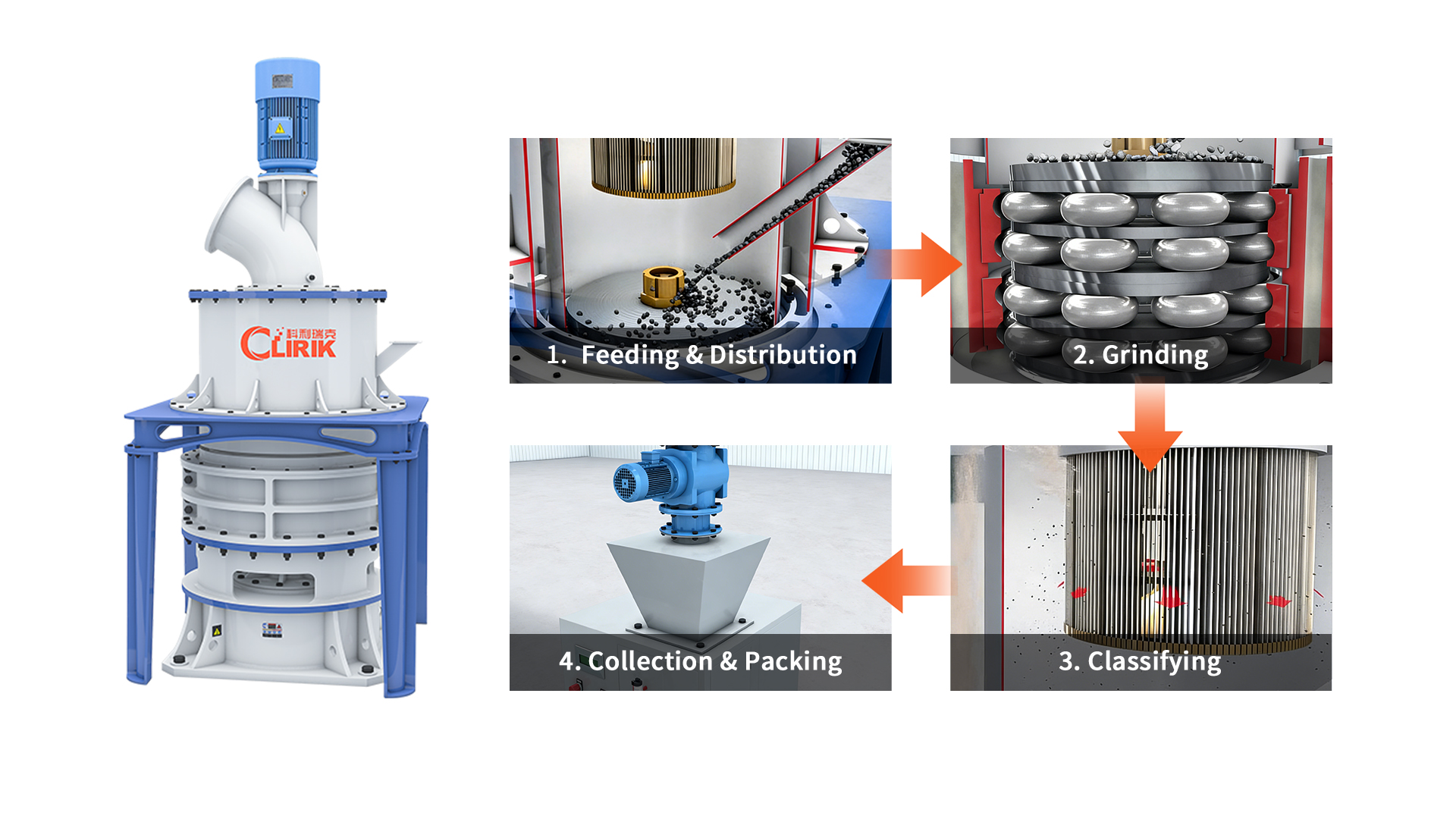

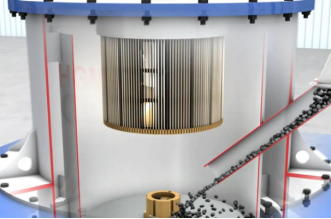

Step 1: Material Feeding
The material is evenly fed into the grinding chamber by the feeding system.
02
Step 2: Impact Grinding

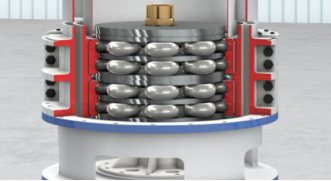

The material is strongly impacted by the high-speed rotating grinding disc. Under centrifugal force, it collides with the grinding ring gear, and is subjected to comprehensive forces such as shearing, friction, and collision to complete the grinding process.
03
Step 3: Airflow Classifying

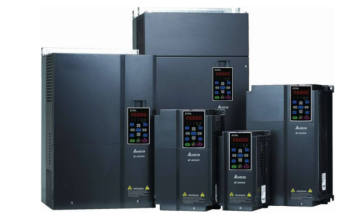

The ground material moves with the airflow to the classifying zone. The frequency-controlled classifier separates coarse and fine particles.
04
Step 4: Collection & Recirculation

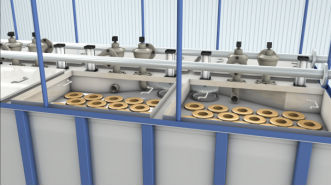

Fine particles meeting the fineness requirement enter the cyclone collector and dust collector for collection. Coarse particles return to the grinding chamber for secondary grinding.
Working Principle
The raw materials are released and transmitted by the feeding belt conveyor from the raw material hopper, with the weight of the materials being controlled by the belt scale and the tramp iron in the materials being removed by the iron remover. Subsequently, the materials are sent to the elevator, via the air lock valve and screw conveyor, into the mill interior for pulverization. After pulverization, the qualified powder separated from the powder classifier is transmitted into the tank-type pulse dust collector, then after the screw conveyor and discharge valve they are transported to the final product hopper, packed as sold directly. A small amount of coarse materials (colloquially “slag”) is released out by the mill unit, and re-feed into the machine to be grinded again.
HGM Ultrafine Grinding Mill mainly consist of raw materials hopper, belt weigher, bucket elevator, screw conveyor, screw feeder, air-lock discharge valve, main unit, pulse dust collector, induced dtaft fan, pulse dust collector, silencer.
01
Step 1: Material Feeding
The material is evenly fed into the grinding chamber by the feeding system.
02
Step 2: Impact Grinding
The material is strongly impacted by the high-speed rotating grinding disc. Under centrifugal force, it collides with the grinding ring gear, and is subjected to comprehensive forces such as shearing, friction, and collision to complete the grinding process.
03
Step 3: Airflow Classifying
The ground material moves with the airflow to the classifying zone. The frequency-controlled classifier separates coarse and fine particles.
04
Step 4: Collection & Recirculation
Fine particles meeting the fineness requirement enter the cyclone collector and dust collector for collection. Coarse particles return to the grinding chamber for secondary grinding.
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects

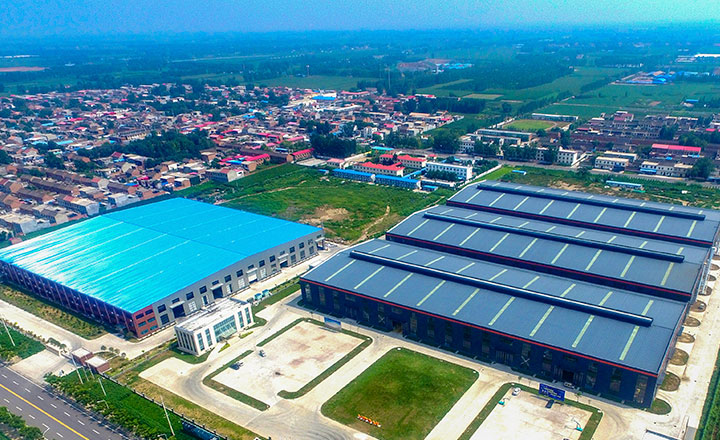

Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote troubleshooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.

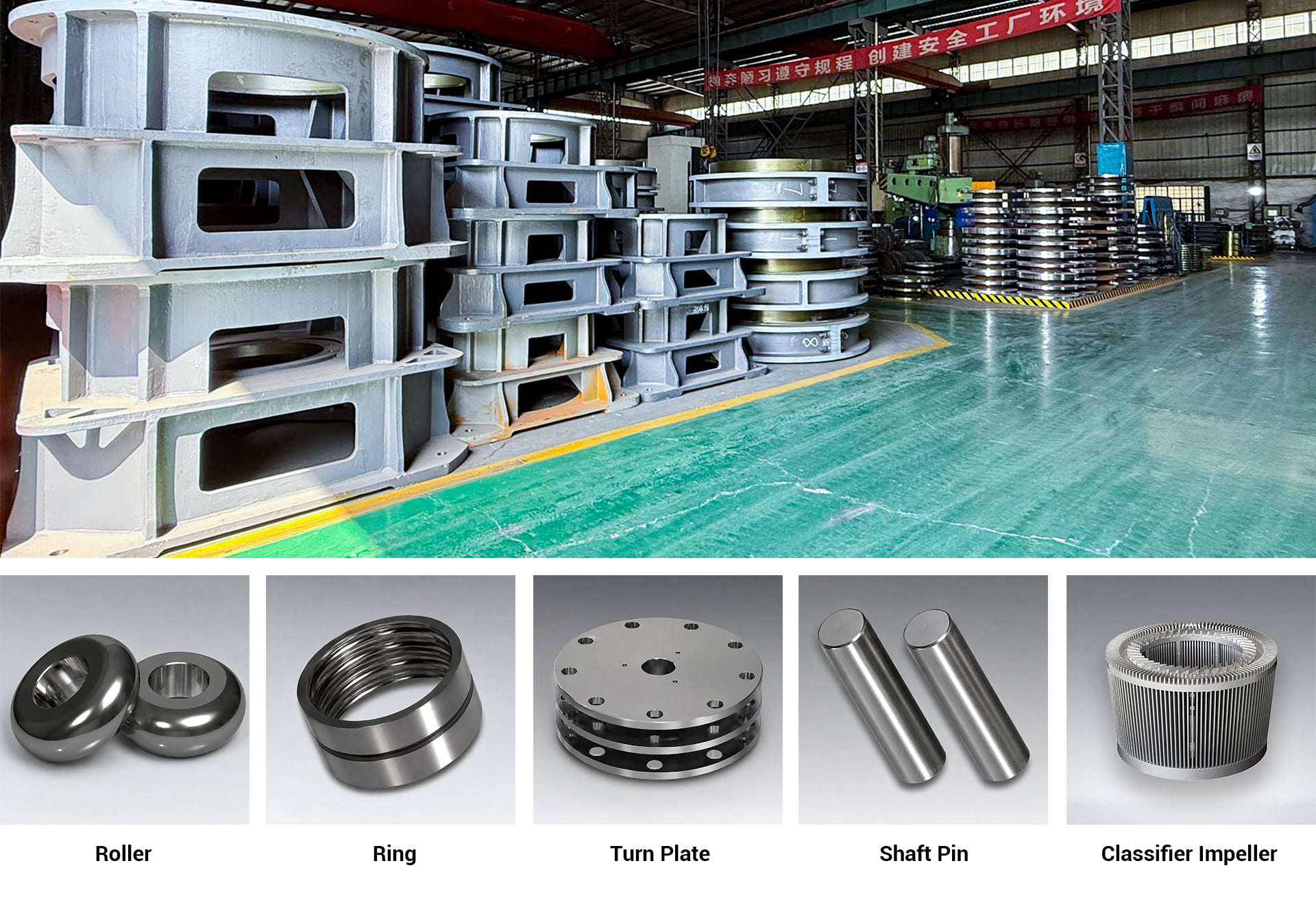

Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote trouble shooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.

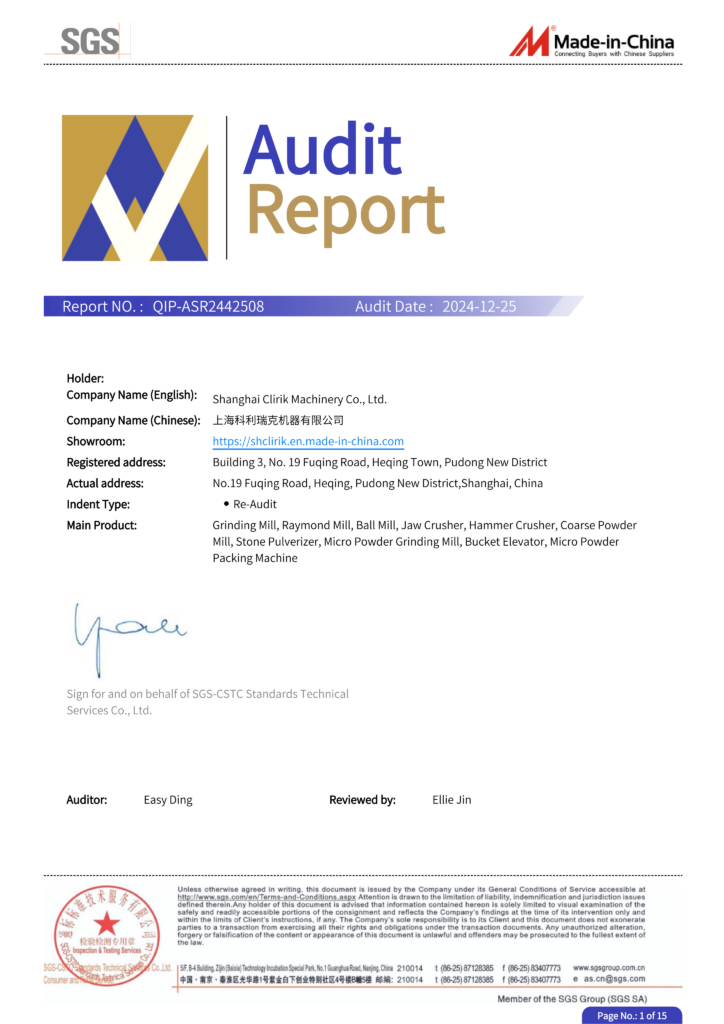

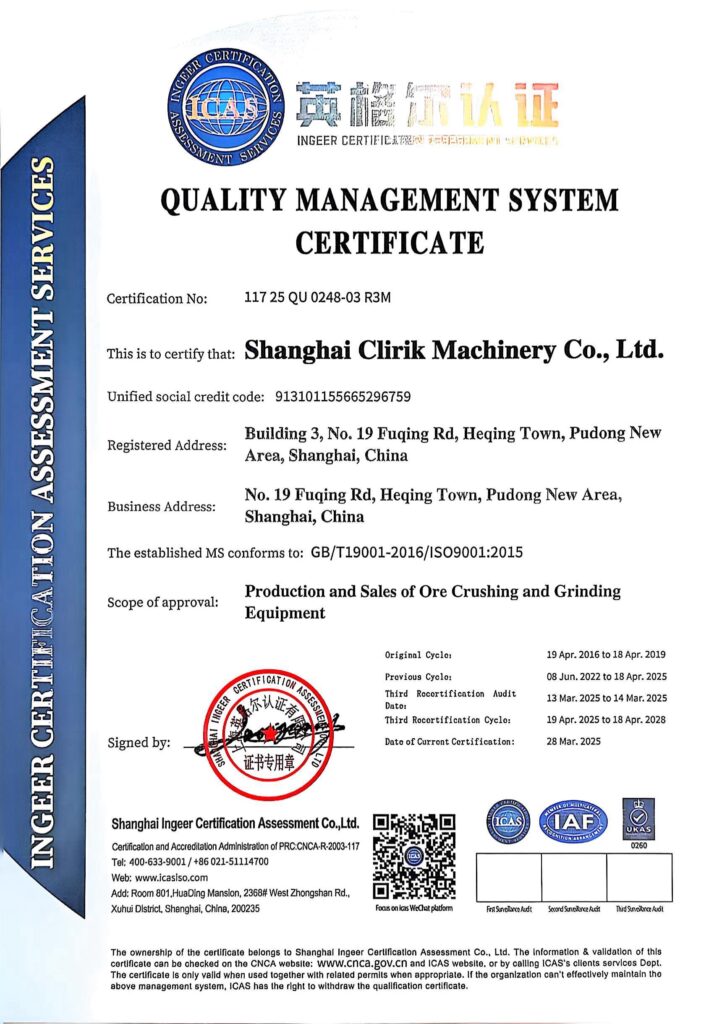

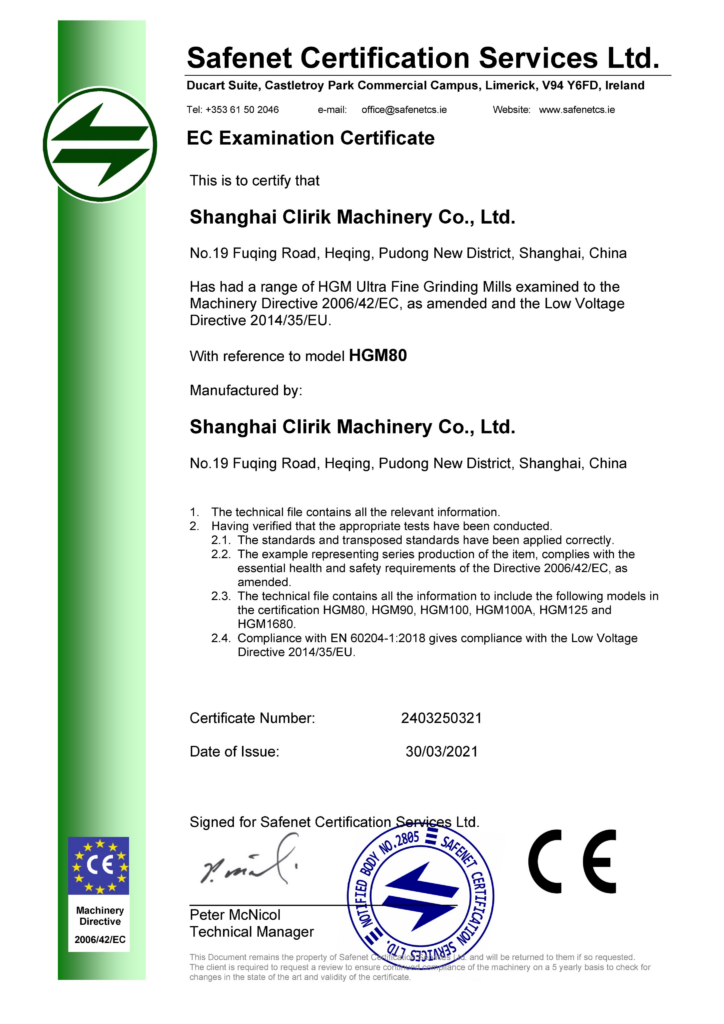

Honors and Qualifications
Honors and Qualifications
FAQ
1. What materials can CLCM process?
Suitable for chemicals, food, pharmaceuticals, minerals, powder coatings, and more. Typical materials include calcite, talc, starch, sugar, resin, pigment, API, graphite, etc.
2. Can it handle heat-sensitive or sticky materials?
Yes. Different grinding discs (pin, hammer, teeth) are available. The airflow also provides a cooling effect for heat-sensitive materials.
3. How to ensure high product purity?
Key parts (hammer, gear ring, classifier wheel) can be made of ceramic (alumina, zirconia, silicon carbide), ensuring no metal contact during grinding.
4. How long is the warranty? Does your company supply the spare parts?
3-300 μm (50-10000 mesh). Adjust by changing classifier wheel speed and airflow volume.
5. Is it easy to clean?
Yes. Compact structure, small footprint, easy to disassemble and clean.
FAQ
1. What materials can CLCM process?
Suitable for chemicals, food, pharmaceuticals, minerals, powder coatings, and more. Typical materials include calcite, talc, starch, sugar, resin, pigment, API, graphite, etc.
2. Can it handle heat-sensitive or sticky materials?
Yes. Different grinding discs (pin, hammer, teeth) are available. The airflow also provides a cooling effect for heat-sensitive materials.
3. How to ensure high product purity?
Key parts (hammer, gear ring, classifier wheel) can be made of ceramic (alumina, zirconia, silicon carbide), ensuring no metal contact during grinding.
4. What is the fineness range? How to adjust?
3-300 μm (50-10000 mesh). Adjust by changing classifier wheel speed and airflow volume.
5. Is it easy to clean?
Yes. Compact structure, small footprint, easy to disassemble and clean.
