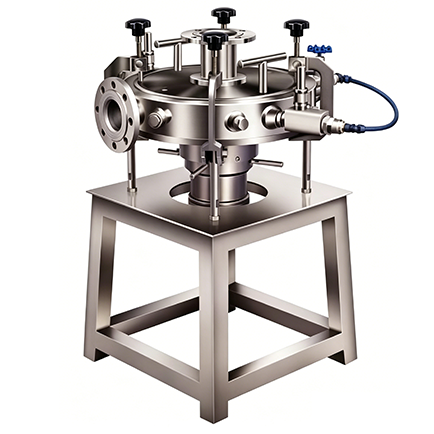

CLJM-Y Disc Jet Mill
CLJM-Y disc jet mill, also known as supersonic air mill, uses high-speed airflow to spray material tangentially onto the crushing wall for friction crushing. Fineness is controlled by adjusting chamber depth, crushing pressure or feeding speed. Compared with fluidized bed jet mill, it has less fineness controllability but better effect on viscous materials.
Capacity:
0.5-800 kg/h
Maximum feed particle size:
≤0.25 mm（≥60 mesh）
Output fineness:
200-25000 mesh（0.5-75 μm）
Applicable Materials:
Suitable for high-hardness, high-value materials such as silicon carbide, zirconia, alumina, rare earths, hard alloys, as well as heat-sensitive and viscous materials. Widely used in chemicals, pharmaceuticals, food, minerals and other industries.
HGM Ultrafine Grinding Mill
HGM Ultrafine Grinding Mill is a new generation of ultra-fine powder processing equipment. It overcomes the drawbacks of complex processes and high energy consumption found in traditional jet mills and ball mills, achieving high efficiency at a lower cost.
Capacity:
0.5-800 kg/h
Maximum feed particle size:
≤0.25 mm（≥60 mesh）
Output fineness:
200-25000 mesh（0.5-75 μm）
Applicable Materials:
Suitable for high-hardness, high-value materials such as silicon carbide, zirconia, alumina, rare earths, hard alloys, as well as heat-sensitive and viscous materials. Widely used in chemicals, pharmaceuticals, food, minerals and other industries.
Product Advantages
High Impact Speed
Airflow impact speed reaches Mach 2.5 or above, easily obtaining 1-10 micron ultrafine powder, even sub-micron for some materials.
Uniform Particles
No classifier wheel, coarse particles constantly recycled and crushed, narrow particle size distribution, uniform particles.
Suitable for Viscous Materials
Turbine absorbs large quantities of air during crushing, providing cooling effect to protect heat-sensitive materials.
Pure & Contamination-Free
No grinding media, particle-to-particle impact maintains material purity.
Low Noise & No Vibration
Low noise down to 72 dB, no vibration, friendly operating environment.
Simple Structure & Easy Fix
Short crushing time, simple structure, easy operation and maintenance, small footprint.
Product Advantages
High Impact Speed
Airflow impact speed reaches Mach 2.5 or above, easily obtaining 1-10 micron ultrafine powder, even sub-micron for some materials.
Uniform Particles
No classifier wheel, coarse particles constantly recycled and crushed, narrow particle size distribution, uniform particles.
Suitable for Viscous Materials
Turbine absorbs large quantities of air during crushing, providing cooling effect to protect heat-sensitive materials.
Pure & Contamination-Free
No grinding media, particle-to-particle impact maintains material purity.
Low Noise & No Vibration
No grinding media, particle-to-particle impact maintains material purity.
Simple Structure & Easy Fix
Reducer transmission ensures smoother, more stable operation. Achieve higher output with minimal energy waste.
Parameter
Parameter
| Model | Capacity (kg/h) | Air Consumption (m3/min) | Working Pressure (MPa) | Feed Size (mesh) | Grinding Fineness (mesh/um) | Power (kW) |
| CLJM-Y100 | 0.5-10 | 2 | 0.6-1.2 | >=60 | 200-25000 (0.5-75) | 18 |
| CLJM-Y200 | 10-60 | 3 | 0.6-1.2 | >=60 | 200-25000 (0.5-75) | 25 |
| CLJM-Y300 | 60-240 | 6 | 0.6-1.2 | >=60 | 200-25000 (0.5-75) | 58 |
| CLJM-Y400 | 200-500 | 10 | 0.6-1.2 | >=60 | 200-25000 (0.5-75) | 85 |
| CLJM-Y600 | 400-800 | 20 | 0.6-1.2 | >=60 | 200-25000 (0.5-75) | 155 |
Raw Materials & Applications
Disc jet mill is suitable for dry ultrafine technology, has a good grinding effect for materials with viscosity, widely used in chemical, pharmaceutical, food, mineral and other industries.
Focus on the field of micro powder grinding !
Industry Applications
Disc jet mill is suitable for dry ultrafine technology, has a good grinding effect for materials with viscosity, widely used in chemical, pharmaceutical, food, mineral and other industries.
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Working Principle
HGM Ultrafine Grinding Mill has been proved a new type of mill with outstanding features and stable quality by thousands of customers. It was designed by our engineer and technicians on the basis of multiple innovation, test and experience, and absorbed many advantages of manufacturing technique of mills domestic and aboard. It is the ideal equipment for production of ultrafine powder in the fields of mining, chemical industry, metallurgy and construction etc.
01
Step 1: Material Feeding
The compressed gas is brought into the crushing chamber through the feeding injector.
02
Step 2: High-Speed Injection
Driven by the high-speed airflow sprayed by multiple nozzles, the material is sprayed to the crushing wall in a tangential way.
03
Step 3: Friction Crushing
The material rubs against the crushing wall to achieve the crushing effect.
04
Step 4: Fineness Control
The grinding fineness is controlled by adjusting the longitudinal depth of the crushing chamber, adjusting the crushing pressure or the feeding speed.
Working Principle
HGM Ultrafine Grinding Mill has been proved a new type of mill with outstanding features and stable quality by thousands of customers. It was designed by our engineer and technicians on the basis of multiple innovation, test and experience, and absorbed many advantages of manufacturing technique of mills domestic and aboard. It is the ideal equipment for production of ultrafine powder in the fields of mining, chemical industry, metallurgy and construction etc.
01
Step 1: Material Feeding
The compressed gas is brought into the crushing chamber through the feeding injector.
02
Step 2: High-Speed Injection
Driven by the high-speed airflow sprayed by multiple nozzles, the material is sprayed to the crushing wall in a tangential way.
03
Step 3: Friction Crushing
The material rubs against the crushing wall to achieve the crushing effect.
04
Step 4: Fineness Control
The grinding fineness is controlled by adjusting the longitudinal depth of the crushing chamber, adjusting the crushing pressure or the feeding speed.
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote troubleshooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote trouble shooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
Honors and Qualifications
Honors and Qualifications
FAQ
1. What materials is CLJM-Y suitable for?
Suitable for high-hardness, high-value materials such as silicon carbide, zirconia, alumina, rare earths, hard alloys, as well as heat-sensitive and viscous materials.
2. Can it grind high-hardness materials?
Yes. High-speed airflow impact reaches Mach 2.5 or above, effectively crushing materials with Mohs hardness up to 7-8.
3. How to ensure product purity for high-value materials?
No grinding media is used. Crushing is achieved by particle-to-particle impact and friction against the crushing wall, eliminating media contamination risk.
4. What is the fineness range?
0.5-75 μm (200-25000 mesh). Easily obtain 1-10 μm particles, even sub-micron for some materials.
5. Is it suitable for viscous materials?
Yes. Unlike fluidized bed jet mills, CLJM-Y has excellent grinding effect for viscous materials.
FAQ
1. What materials is CLJM-Y suitable for?
Suitable for high-hardness, high-value materials such as silicon carbide, zirconia, alumina, rare earths, hard alloys, as well as heat-sensitive and viscous materials.
2. Can it grind high-hardness materials?
Yes. High-speed airflow impact reaches Mach 2.5 or above, effectively crushing materials with Mohs hardness up to 7-8.
3. How to ensure product purity for high-value materials?
No grinding media is used. Crushing is achieved by particle-to-particle impact and friction against the crushing wall, eliminating media contamination risk.
4. What is the fineness range?
0.5-75 μm (200-25000 mesh). Easily obtain 1-10 μm particles, even sub-micron for some materials.
5. Is it suitable for viscous materials?
Yes. Unlike fluidized bed jet mills, CLJM-Y has excellent grinding effect for viscous materials.
