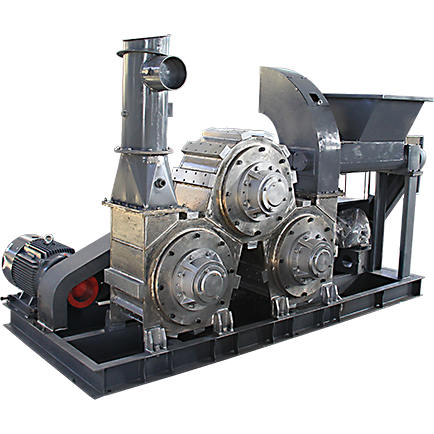

CLIRIK CLG Series Powder Surface Coating Machine
CLIRIK CLG Series enhances mineral-polymer compatibility, serving as a core component for high-value composite fillers. Its unique triangular structure and friction-heating technology ensure a 98% activation rate with low energy and zero emissions.
Capacity:
0.5-7 t/h
Feeding Size:
200 – 3000 mesh
Coating Ratio:
≥ 98%
Applicable Materials:
Ground Calcium Carbonate (GCC), Precipitated Calcium Carbonate (PCC), Kaolin, Talc,barium sulfate, white carbon black, magnesium hydrate, Mica, Zinc Oxide, and other non-metallic mineral powders.
CLIRIK CLG Series Powder Surface Coating Machine
CLIRIK CLG Series enhances mineral-polymer compatibility, serving as a core component for high-value composite fillers. Its unique triangular structure and friction-heating technology ensure a 98% activation rate with low energy and zero emissions.
Capacity:
0.5-7 t/h
Feeding Size:
200 – 3000 mesh
Coating Ratio:
≥ 98%
Applicable Materials:
Ground Calcium Carbonate (GCC), Precipitated Calcium Carbonate (PCC), Kaolin, Talc,barium sulfate, white carbon black, magnesium hydrate, Mica, Zinc Oxide, and other non-metallic mineral powders.
Product Advantages
Steady Industrial Output
Our continuous design and double-screw precision conveying ensure steady material flow for stable, high-capacity output.
High Coating Ratio (≥98%)
CLIRIK ensures max coating and activity with low agent use, via independent fluid/non-fluid adding systems.
Dual: Modify & Disperse
Unique chamber design modifies and depolymerizes fine, high-volume materials like mica, talc, and white carbon.
Eco-Friendly Vacuum System
Sealed negative pressure and advanced pulse dust collectors ensure a clean, dust-free workshop with zero leakage.
Advanced Trio Structure
A triangular 3-roller core creates high-speed vortexes for thorough mixing while preserving original granulate shapes.
Efficient Friction Heat Tech
Self-generated heat from high-speed shearing eliminates the need for extra heating, significantly cutting power costs.
Product Advantages
Steady Industrial Output
Our continuous design and double-screw precision conveying ensure steady material flow for stable, high-capacity output.
High Coating Ratio (≥98%)
CLIRIK ensures max coating and activity with low agent use, via independent fluid/non-fluid adding systems.
Dual: Modify & Disperse
Unique chamber design modifies and depolymerizes fine, high-volume materials like mica, talc, and white carbon.
Eco-Friendly Vacuum System
Sealed negative pressure and advanced pulse dust collectors ensure a clean, dust-free workshop with zero leakage.
Advanced Trio Structure
A triangular 3-roller core creates high-speed vortexes for thorough mixing while preserving original granulate shapes.
Efficient Friction Heat Tech
Self-generated heat from high-speed shearing eliminates the need for extra heating, significantly cutting power costs.
Parameter
Parameter
| Model | Main Power (kw) | Blower Power (kw) | Speed of Shaft (r.p.m) | Capacity (kg/h) | Weight (t) | Overall Dimension (L*W*H)mm |
| CLG-200D | 11 | 2.2 | 4600 | 40-150 | 1 | 3200*600*2200 |
| CLG-3/300 | 3-18.5 | 5.5 | 4500 | 500-1800 | 3 | 5800*1800*5600 |
| CLG-3/600 | 3-37 | 15-22 | 2700 | 2000-4000 | 10 | 11200*3100*6200 |
| CLG-3/900 | 3-75 | 45 | 1800 | 4000-7000 | 20 | 21000*3800*6500 |
Raw Materials & Applications
Enhance stiffness and impact strength of your PVC, PE, and PP products.Improve whiteness, opacity, and weather resistance for premium coatings.Reduce raw material costs while maintaining high tensile strength for tires and gaskets.Optimize surface smoothness and ink receptivity in specialized papermaking.
Focus on the field of micro powder grinding !
Industry Applications
Enhance stiffness and impact strength of your PVC, PE, and PP products.Improve whiteness, opacity, and weather resistance for premium coatings.Reduce raw material costs while maintaining high tensile strength for tires and gaskets.Optimize surface smoothness and ink receptivity in specialized papermaking.
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Working Principle
The CLIRIK CLG series machine utilizes three modifying rollers in a unique triangle structure. When you feed the dry powder and a precise amount of agent into the chamber, the high-speed rotation creates fluidizing vortexes. The heat generated by friction and shearing ensures perfect film formation on every single particle.
01
Step 1: Raw Material Feeding
Raw material is fed into the hopper from silos or bags. A screw conveying device with adjustable speed ensures a steady and synchronized flow of dry powder into the modification chamber.
02
Step 2: Intelligent Dosing & Atomization
The integrated agent-adding system automatically melts the modifier (solid or liquid). It precisely doses and atomizes the agent into the chamber based on a pre-set temperature control system to ensure perfect coverage.
03
Step 3: High-Speed Vortex Modification
Inside the chamber, three modifying rollers in a triangle structure rotate at high speed, creating powerful gas-solid fluidizing vortexes. This ensures every single particle is fully dispersed and interacts with the coating agent.
04
Step 4: Friction Self-Heating & Bonding
The high-speed shearing and collision generate natural friction heat, which triggers the chemical bonding or physical coating on the particle surface without the need for external heating.
05

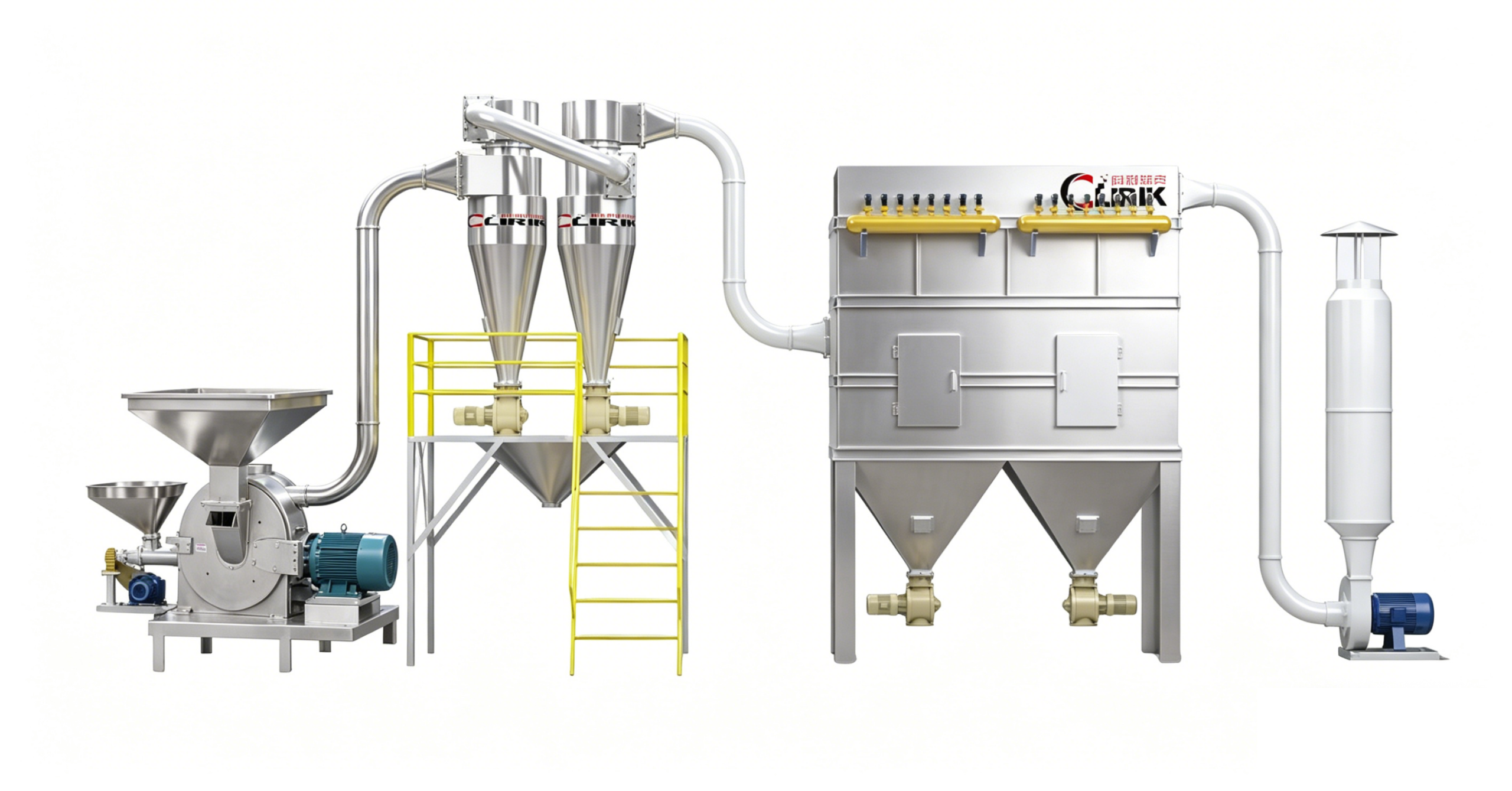

Step 5: High-Efficiency Collection
The modified powder is carried by airflow into the cyclone and the new generation impulse bag dust collector, where the finished product is separated with zero dust leakage and high purity.
Working Principle
The CLIRIK CLG series machine utilizes three modifying rollers in a unique triangle structure. When you feed the dry powder and a precise amount of agent into the chamber, the high-speed rotation creates fluidizing vortexes. The heat generated by friction and shearing ensures perfect film formation on every single particle.
01
Step 1: Raw Material Feeding
Raw material is fed into the hopper from silos or bags. A screw conveying device with adjustable speed ensures a steady and synchronized flow of dry powder into the modification chamber.
02
Step 2: Intelligent Dosing & Atomization
The integrated agent-adding system automatically melts the modifier (solid or liquid). It precisely doses and atomizes the agent into the chamber based on a pre-set temperature control system to ensure perfect coverage.
03
Step 3: High-Speed Vortex Modification
Inside the chamber, three modifying rollers in a triangle structure rotate at high speed, creating powerful gas-solid fluidizing vortexes. This ensures every single particle is fully dispersed and interacts with the coating agent.
04
Step 4: Friction Self-Heating & Bonding
The high-speed shearing and collision generate natural friction heat, which triggers the chemical bonding or physical coating on the particle surface without the need for external heating.
05
Step 5: High-Efficiency Collection
The modified powder is carried by airflow into the cyclone and the new generation impulse bag dust collector, where the finished product is separated with zero dust leakage and high purity.
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote troubleshooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote trouble shooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
Honors and Qualifications
Honors and Qualifications
FAQ
1. Does the machine need extra heating?
No, it uses self-generated friction heat.
2. Can I use different coating agents?
Yes, our system supports Titanate, Silane, Stearic Acid, etc.
3. What is the typical addition ratio of modifying agents?
This directly affects your cost. Generally, the consumption ranges from 0.5% to 1.5% per ton of powder, depending on your material and requirements.
4. Does the dosing system synchronize with the feeding volume?
Yes. The intelligent PLC system automatically adjusts the agent dosing rate to match your material flow, preventing waste or clumping.
5. Will the coating process affect the whiteness of my powder?
No. CLIRIK uses high-grade wear-resistant liners to prevent iron contamination. This ensures your powder maintains its premium whiteness and purity.
FAQ
1. Does the machine need extra heating?
No, it uses self-generated friction heat.
2. Can I use different coating agents?
Yes, our system supports Titanate, Silane, Stearic Acid, etc.
3. What is the typical addition ratio of modifying agents?
This directly affects your cost. Generally, the consumption ranges from 0.5% to 1.5% per ton of powder, depending on your material and requirements.
4. Does the dosing system synchronize with the feeding volume?
Yes. The intelligent PLC system automatically adjusts the agent dosing rate to match your material flow, preventing waste or clumping.
5.Will the coating process affect the whiteness of my powder?
No. CLIRIK uses high-grade wear-resistant liners to prevent iron contamination. This ensures your powder maintains its premium whiteness and purity.
