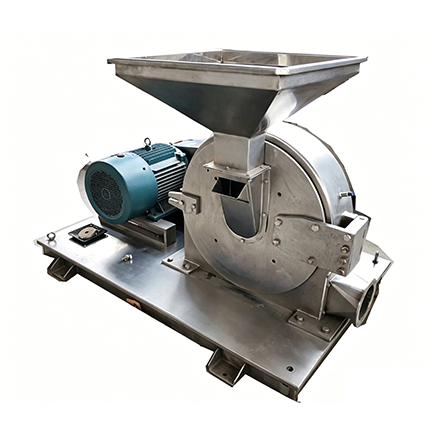

CLDJ Turbo Pulverizer
CLDJ turbine pulverizer is mainly used in plastics (PS/PVC/ABS etc.), pharmaceuticals, chemicals, and food (chilli, pepper, wheat, soybean, vegetables). In the crushing process of low hardness materials, the fineness of 30-150 mesh can be adjusted. It features high output yield, fine grain size, low noise, low energy consumption, simple maintenance, and easy installation. Especially suitable for oily, viscous, heat-sensitive, and fibrous materials in low hardness crushing processes.
Capacity:
3-2000 kg/h
Maximum feed particle size:
10mm
Output fineness:
10-325mesh
Applicable Materials:
Suitable for plastics (PS, PVC, ABS), pharmaceuticals, chemicals, food (chilli, pepper, wheat, soybean, vegetables), as well as oily, viscous, heat-sensitive and fibrous materials.
HGM Ultrafine Grinding Mill
HGM Ultrafine Grinding Mill is a new generation of ultra-fine powder processing equipment. It overcomes the drawbacks of complex processes and high energy consumption found in traditional jet mills and ball mills, achieving high efficiency at a lower cost.
Capacity:
3-2000 kg/h
Maximum feed particle size:
10mm
Output fineness:
10-325 mesh
Applicable Materials:
Suitable for plastics (PS, PVC, ABS), pharmaceuticals, chemicals, food (chilli, pepper, wheat, soybean, vegetables), as well as oily, viscous, heat-sensitive and fibrous materials.
Product Advantages
Wide Application Range
Suitable for plastics, pharmaceuticals, chemicals, food, and low hardness oily, viscous, heat-sensitive, fibrous materials.
Adjustable Fineness
Particle size adjustable between 30-150 mesh to meet different requirements.
Cooling Effect
Turbine absorbs large quantities of air during crushing, providing cooling effect to protect heat-sensitive materials.
Pure & Contamination-Free
Special seal and dust-proof design ensure no contamination during processing.
Efficient & Low Energy
High output yield, fine particle size, low noise, low energy consumption.
Easy Maintenance
Reducer transmission ensures smoother, more stable operation. Achieve higher output with minimal energy waste.
Product Advantages
Wide Application Range
Suitable for plastics, pharmaceuticals, chemicals, food, and low hardness oily, viscous, heat-sensitive, fibrous materials.
Adjustable Fineness
Particle size adjustable between 30-150 mesh to meet different requirements.
Cooling Effect
Turbine absorbs large quantities of air during crushing, providing cooling effect to protect heat-sensitive materials.
Pure & Contamination-Free
Special seal and dust-proof design ensure no contamination during processing.
Efficient & Low Energy
High output yield, fine particle size, low noise, low energy consumption.
Easy Maintenance
Reducer transmission ensures smoother, more stable operation. Achieve higher output with minimal energy waste.
Parameter
Parameter
| Model | Diameter of rotor disc (mm) | Rotated speed of main unit (r/min) | Capacity (kg/h) | Output size (mesh) | Dimension (mm) |
| CLDJ-130 | 130 | 7500 | 3-50 | 10-325 | 320*150*255 |
| CLDJ-150 | 150 | 7300 | 5-70 | 10-325 | 350*165*280 |
| CLDJ-220 | 220 | 6000 | 50-150 | 10-325 | 505*220*405 |
| CLDJ-250 | 250 | 6000 | 20-200 | 10-325 | 615*212*480 |
| CLDJ-350 | 350 | 4500 | 25-500 | 10-325 | 830*290*660 |
| CLDJ-500 | 500 | 3250 | 30-1200 | 10-325 | 1060*350*835 |
| CLDJ-550 | 550 | 2930 | 50-1500 | 10-325 | 1080*400*903 |
| CLDJ-750 | 750 | 2250 | 60-2000 | 10-325 | 1400*400*1130 |
Raw Materials & Applications
PS, PVC, ABS, etc.Various pharmaceutical materials,Chemical raw materials,Chilli, pepper, wheat, soybean, vegetables, etc.Oily, viscous, heat-sensitive, fibrous materials
Focus on the field of micro powder grinding !
Industry Applications
PS, PVC, ABS, etc.Various pharmaceutical materials,Chemical raw materials,Chilli, pepper, wheat, soybean, vegetables, etc.Oily, viscous, heat-sensitive, fibrous materials
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Project Cases
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
Working Principle
HGM Ultrafine Grinding Mill has been proved a new type of mill with outstanding features and stable quality by thousands of customers. It was designed by our engineer and technicians on the basis of multiple innovation, test and experience, and absorbed many advantages of manufacturing technique of mills domestic and aboard. It is the ideal equipment for production of ultrafine powder in the fields of mining, chemical industry, metallurgy and construction etc.
01
Step 1: Material Feeding
Material enters the machine from the hopper into the crushing cavity.
02
Step 2: High-Speed Impact
The motor drives the shaft and turbine to rotate at high speed. Under the high-speed rotation of the turbine, material is strongly impacted by the turbine blades, and undergoes friction and impact between the ring on the turbine and the screen grinding blocks.
03
Step 3: Grinding & Cooling
The fine powder is carried by a high-pressure airflow toward the classifier. Our high-speed impeller acts as a precision gatekeeper: it screens the particle size with surgical accuracy. Qualified fine particles pass through to the collector, while over-sized particles are rejected and fall back to the grinding chamber for regrinding.
04
Step 4: Screening & Collection
The final product is separated in the high-efficiency cyclone collector and discharged via the bottom valve for packing. To ensure a dust-free environment, a pulse bag filter captures 99.9% of residual dust. The vibration system ensures the powder falls automatically into the conveyor, while filtered clean air is silently released through the muffler.
Working Principle
HGM Ultrafine Grinding Mill has been proved a new type of mill with outstanding features and stable quality by thousands of customers. It was designed by our engineer and technicians on the basis of multiple innovation, test and experience, and absorbed many advantages of manufacturing technique of mills domestic and aboard. It is the ideal equipment for production of ultrafine powder in the fields of mining, chemical industry, metallurgy and construction etc.
01
Step 1: Material Feeding
Material enters the machine from the hopper into the crushing cavity.
02
Step 2: High-Speed Impact
The motor drives the shaft and turbine to rotate at high speed. Under the high-speed rotation of the turbine, material is strongly impacted by the turbine blades, and undergoes friction and impact between the ring on the turbine and the screen grinding blocks.
03
Step 3: Grinding & Cooling
The fine powder is carried by a high-pressure airflow toward the classifier. Our high-speed impeller acts as a precision gatekeeper: it screens the particle size with surgical accuracy. Qualified fine particles pass through to the collector, while over-sized particles are rejected and fall back to the grinding chamber for regrinding.
04
Step 4: Screening & Collection
The final product is separated in the high-efficiency cyclone collector and discharged via the bottom valve for packing. To ensure a dust-free environment, a pulse bag filter captures 99.9% of residual dust. The vibration system ensures the powder falls automatically into the conveyor, while filtered clean air is silently released through the muffler.
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
High-Performance Solutions for
High-Value Powder
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
Professional Material Testing & Trial Run Services
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote troubleshooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
After-sales & Installation Support
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote trouble shooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
Honors and Qualifications
Honors and Qualifications
FAQ
1. What materials can CLDJ handle?
Suitable for plastics (PS, PVC, ABS), pharmaceuticals, chemicals, food (chilli, pepper, wheat, soybean, vegetables), as well as oily, viscous, heat-sensitive and fibrous materials.
2. What materials can be processed by the turbo pulverizer?
The mill is suitable for plastics (PS, PVC, ABS), pharmaceuticals, chemicals, food (chilli, pepper, wheat, soybean, vegetables), and low hardness oily, viscous, heat-sensitive, fibrous materials.
3. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you at the lowest cost, including wear parts such as screens, bearings, and seals.
4. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We have already built many projects in China and overseas.
5. Does the machine have a cooling effect for heat-sensitive materials?
Yes. During the crushing process, the turbine absorbs large quantities of air, providing a cooling effect that helps protect heat-sensitive materials.
FAQ
1. What materials can CLDJ handle?
Suitable for plastics (PS, PVC, ABS), pharmaceuticals, chemicals, food (chilli, pepper, wheat, soybean, vegetables), as well as oily, viscous, heat-sensitive and fibrous materials.
2. What materials can be processed by the turbo pulverizer?
The mill is suitable for plastics (PS, PVC, ABS), pharmaceuticals, chemicals, food (chilli, pepper, wheat, soybean, vegetables), and low hardness oily, viscous, heat-sensitive, fibrous materials.
3. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you at the lowest cost, including wear parts such as screens, bearings, and seals.
4. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We have already built many projects in China and overseas.
5. Does the machine have a cooling effect for heat-sensitive materials?
Yes. During the crushing process, the turbine absorbs large quantities of air, providing a cooling effect that helps protect heat-sensitive materials.
