Material: Calcium Oxide
Annual Production Capacity: 21000 tons/year
Output Fineness Required: 400 mesh
Project Installation time:2025
Clirik Solution: HGM100L-II Ultrafine Grinding Mill

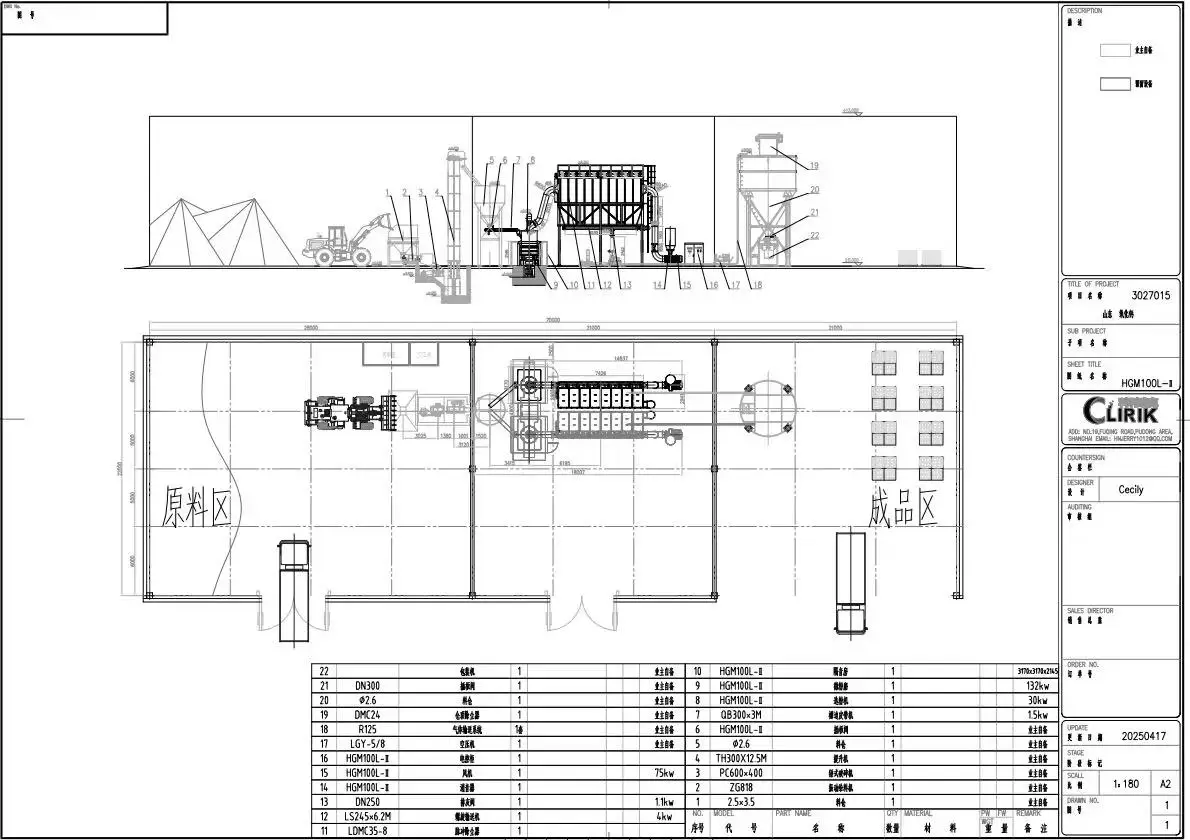

Equipment Configuration: Hopper, Vibrating Feeder, HGM Main Unit, Classifier, Blower, Pulse Dust Collector, Electronic Control Cabinet, Screw Conveyor and Packaging Machine.
Service Support: on-site installation guidance by professional installation engineers.
Project Background
Driven by the rapid expansion of the industrial environmental protection sector, a regional supplier sought to scale up production of high-grade calcium oxide sorbents for large-scale flue gas desulfurization (FGD) plants. However, meeting the soaring market demand with a strict 400 mesh (D97=38 micron) fineness posed a major economic challenge: traditional processing routes consumed excessive electricity and failed to deliver the large hourly output needed to secure long-term utility contracts profitably.
To solve this, Shanghai Clirik engineered a high-capacity, cost-effective grinding line powered by our HGM100L-II Ultra-Fine Grinding Mill, equipped with an advanced air classifier. This configuration optimized mechanical grinding efficiency and particle throughput, delivering high continuous capacity, precise powder gradation, and over 25% lower energy consumption per ton compared to standard solutions. Today, the plant operates at full capacity, significantly lowering operational costs and helping the client emerge as the leading, most cost-competitive sorbent supplier in the regional environmental market.
Location:
China
Material:
Calcium Oxide
Annual Production Capacity:
21000 tons/year
Output Fineness Required:
400 mesh
Project Installation time:
2025
Clirik Solution: HGM100L-II Ultrafine Grinding Mill
Equipment Configuration: Hopper, Vibrating Feeder, HGM Main Unit, Classifier, Blower, Pulse Dust Collector, Electronic Control Cabinet, Screw Conveyor and Packaging Machine.
Service Support: on-site installation guidance by professional installation engineers.
Project Background
Driven by the rapid expansion of the industrial environmental protection sector, a regional supplier sought to scale up production of high-grade calcium oxide sorbents for large-scale flue gas desulfurization (FGD) plants. However, meeting the soaring market demand with a strict 400 mesh (D97=38 micron) fineness posed a major economic challenge: traditional processing routes consumed excessive electricity and failed to deliver the large hourly output needed to secure long-term utility contracts profitably.
To solve this, Shanghai Clirik engineered a high-capacity, cost-effective grinding line powered by our HGM100L-II Ultra-Fine Grinding Mill, equipped with an advanced air classifier. This configuration optimized mechanical grinding efficiency and particle throughput, delivering high continuous capacity, precise powder gradation, and over 25% lower energy consumption per ton compared to standard solutions. Today, the plant operates at full capacity, significantly lowering operational costs and helping the client emerge as the leading, most cost-competitive sorbent supplier in the regional environmental market

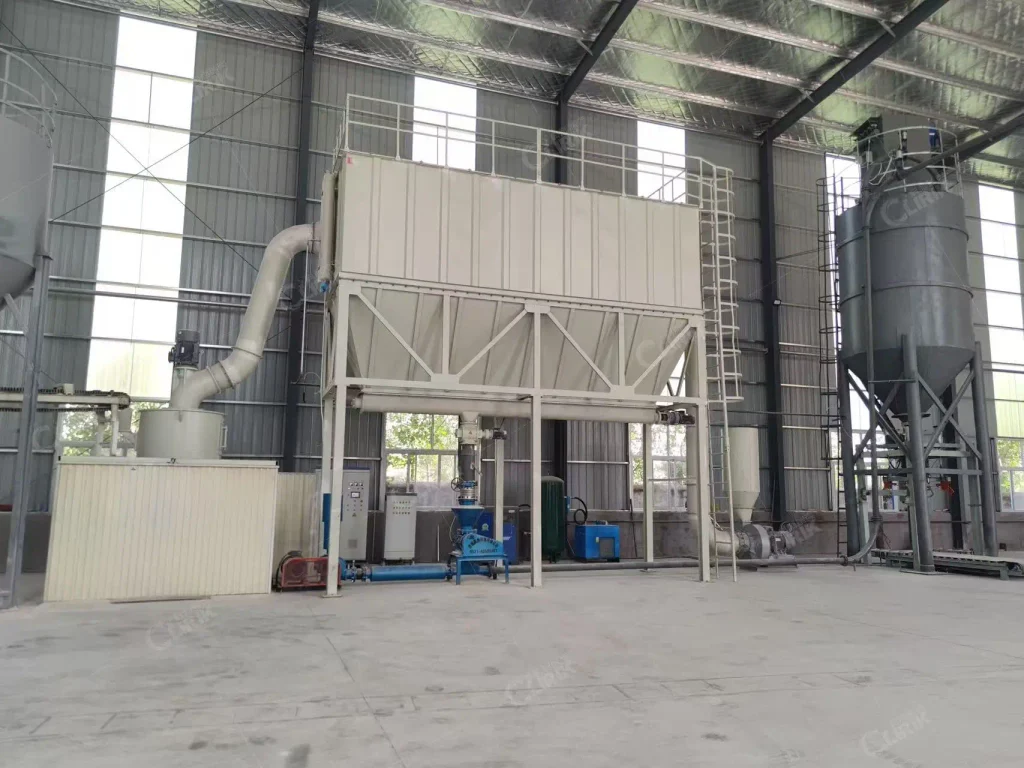

Feeding and Conveying (Material Preparation):
The raw material is crushed to particles smaller than 20 mm and lifted by the bucket elevator to the storage hopper. A frequency-controlled vibrating feeder ensures a continuous and uniform material flow into the grinding chamber, preventing mechanical overload.
HGM Main Unit (Multi-Layer Grinding System):
The core of the production line, featuring a unique 4-layer grinding design. Utilizing centrifugal force, the rollers crush, roll, and shear the material against the rings. This multi-stage grinding logic delivers significantly higher fineness and throughput compared to traditional impact mills.
High-Efficiency Classifier (Precision Screening):
Integrated at the top of the main unit, this variable-frequency classifier uses centrifugal airflow to separate particles. It allows for the precise adjustment of the D97 cut-off point between 325 and 3000 mesh, ensuring that only the qualified ultra-fine powder proceeds to the collection stage.
Pulse Dust Collector (Environmental Protection):
This high-efficiency tank-type collector utilizes premium filter bags to capture 100% of the finished powder directly from the airflow. Operating under negative pressure, it ensures zero dust leakage and a 99.9% recovery rate, making it ideal for ultra-fine applications where total product recovery is critical.
High-Pressure Blower (Airflow Circulation):
The “lungs” of the system, providing the necessary negative pressure and high-velocity airflow to lift and transport the powder. Equipped with a professional silencer, it ensures a stable pneumatic environment for the entire closed-loop grinding circuit.
PLC Intelligent Control System (Centralized Operation):
The “brain” of the plant, allowing engineers to monitor vibration, motor frequency, temperature, and system pressure in real-time. This automated interface ensures high batch-to-batch consistency and protects the equipment through intelligent fault-diagnostics and emergency shutdowns.
Feeding and Conveying (Material Preparation):
The raw material is crushed to particles smaller than 20 mm and lifted by the bucket elevator to the storage hopper. A frequency-controlled vibrating feeder ensures a continuous and uniform material flow into the grinding chamber, preventing mechanical overload.
HGM Main Unit (Multi-Layer Grinding System):
The core of the production line, featuring a unique 4-layer grinding design. Utilizing centrifugal force, the rollers crush, roll, and shear the material against the rings. This multi-stage grinding logic delivers significantly higher fineness and throughput compared to traditional impact mills.
High-Efficiency Classifier (Precision Screening):
Integrated at the top of the main unit, this variable-frequency classifier uses centrifugal airflow to separate particles. It allows for the precise adjustment of the D97 cut-off point between 325 and 3000 mesh, ensuring that only the qualified ultra-fine powder proceeds to the collection stage.
Pulse Dust Collector (Environmental Protection):
This high-efficiency tank-type collector utilizes premium filter bags to capture 100% of the finished powder directly from the airflow. Operating under negative pressure, it ensures zero dust leakage and a 99.9% recovery rate, making it ideal for ultra-fine applications where total product recovery is critical.
High-Pressure Blower (Airflow Circulation):
The “lungs” of the system, providing the necessary negative pressure and high-velocity airflow to lift and transport the powder. Equipped with a professional silencer, it ensures a stable pneumatic environment for the entire closed-loop grinding circuit.
PLC Intelligent Control System (Centralized Operation):
The “brain” of the plant, allowing engineers to monitor vibration, motor frequency, temperature, and system pressure in real-time. This automated interface ensures high batch-to-batch consistency and protects the equipment through intelligent fault-diagnostics and emergency shutdowns.

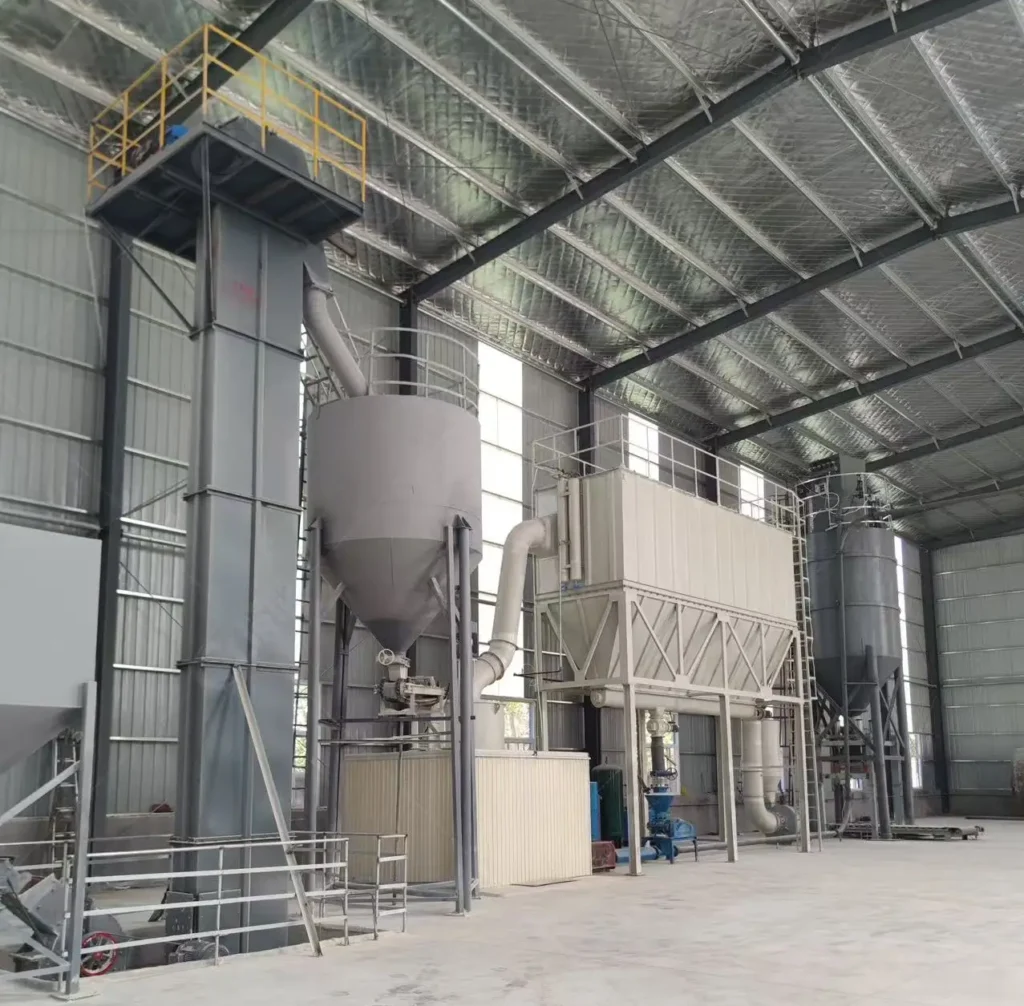

To ensure smooth project delivery, our field engineers provide full-process installation and on-site commissioning services. Beyond assembling and fine-tuning our grinding system, our mechanical team also takes responsibility for seamlessly bridging and integrating your self-supplied upstream and downstream equipment—including raw material silos, jaw crushers, bucket elevators, pneumatic conveying systems, finished product silos, and automated bagging machines—into a unified, continuous production line with optimized material flow.

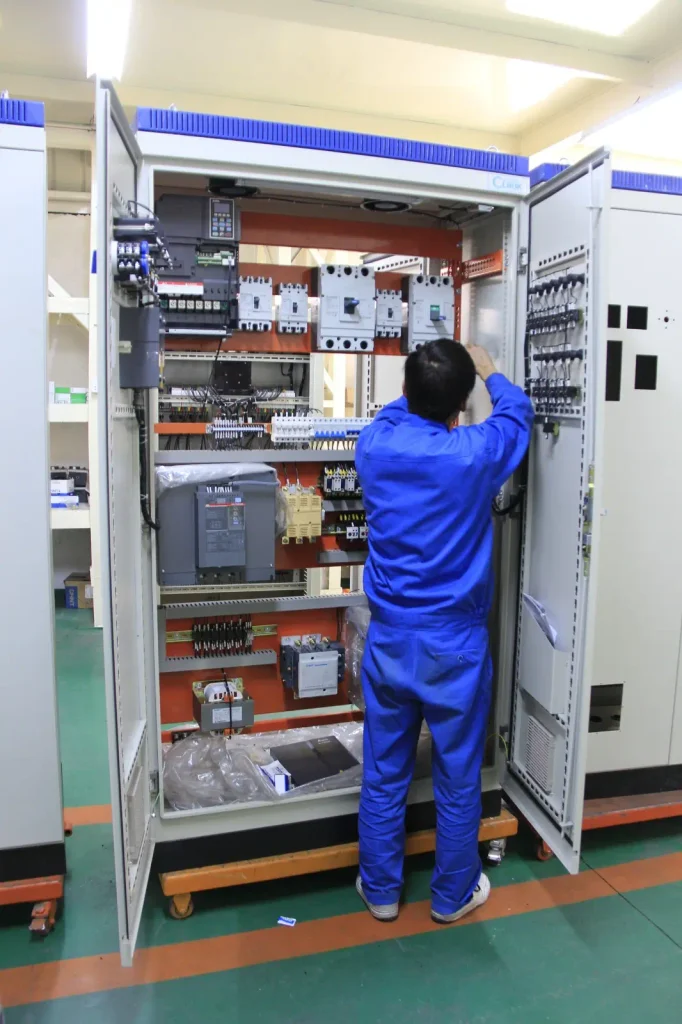

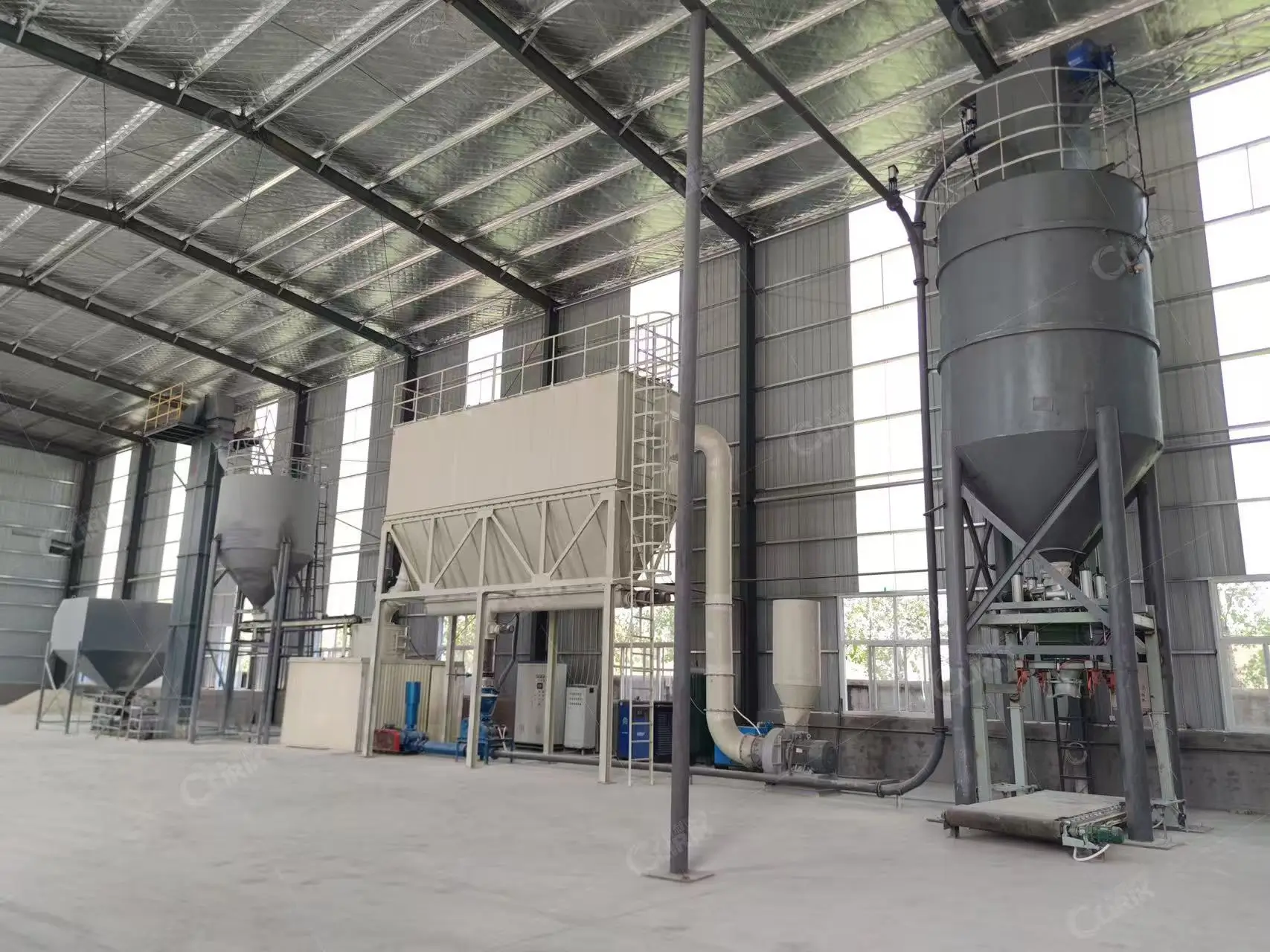

Additionally, our intelligent central electrical control cabinet is custom-built with pre-allocated control loops, PLC expansion modules, and terminal ports specifically reserved for your existing auxiliary machinery. During site commissioning, our electrical automation engineers will wire, configure, and synchronize all self-supplied units into our master system. This guarantees full interlocking protection, automated signal feedback, and true one-stop centralized operation across the entire plant from a single control interface, eliminating operational silos and maximizing overall production efficiency.
To ensure smooth project delivery, our field engineers provide full-process installation and on-site commissioning services. Beyond assembling and fine-tuning our grinding system, our mechanical team also takes responsibility for seamlessly bridging and integrating your self-supplied upstream and downstream equipment—including raw material silos, jaw crushers, bucket elevators, pneumatic conveying systems, finished product silos, and automated bagging machines—into a unified, continuous production line with optimized material flow.
Additionally, our intelligent central electrical control cabinet is custom-built with pre-allocated control loops, PLC expansion modules, and terminal ports specifically reserved for your existing auxiliary machinery. During site commissioning, our electrical automation engineers will wire, configure, and synchronize all self-supplied units into our master system. This guarantees full interlocking protection, automated signal feedback, and true one-stop centralized operation across the entire plant from a single control interface, eliminating operational silos and maximizing overall production efficiency.
Zero-Dust Operation (Negative Pressure System):
Closed-loop negative pressure system with pulse dust collection ensures a clean, dust-free workshop compliant with local environmental standards.
Precision Control (VFD):
Achieve a sharp D97 cut-off (800–2500mesh) with a high-precision classifier, ensuring uniform particle distribution for premium fillers.
Smart Automation (PLC Integration):
Features real-time touchscreen monitoring and one-touch operation for easy integration into centralized plant systems.
Power Optimization:
Engineered for unstable power supplies and high electricity costs. The system ensures stable performance under voltage fluctuations while maximizing energy efficiency to minimize operational expenses.
Zero-Dust Operation (Negative Pressure System):
Closed-loop negative pressure system with pulse dust collection ensures a clean, dust-free workshop compliant with local environmental standards.
Precision Control (VFD):
Achieve a sharp D97 cut-off (800–2500mesh) with a high-precision classifier, ensuring uniform particle distribution for premium fillers.
Smart Automation (PLC Integration):
Features real-time touchscreen monitoring and one-touch operation for easy integration into centralized plant systems.
Power Optimization:
Engineered for unstable power supplies and high electricity costs. The system ensures stable performance under voltage fluctuations while maximizing energy efficiency to minimize operational expenses.
