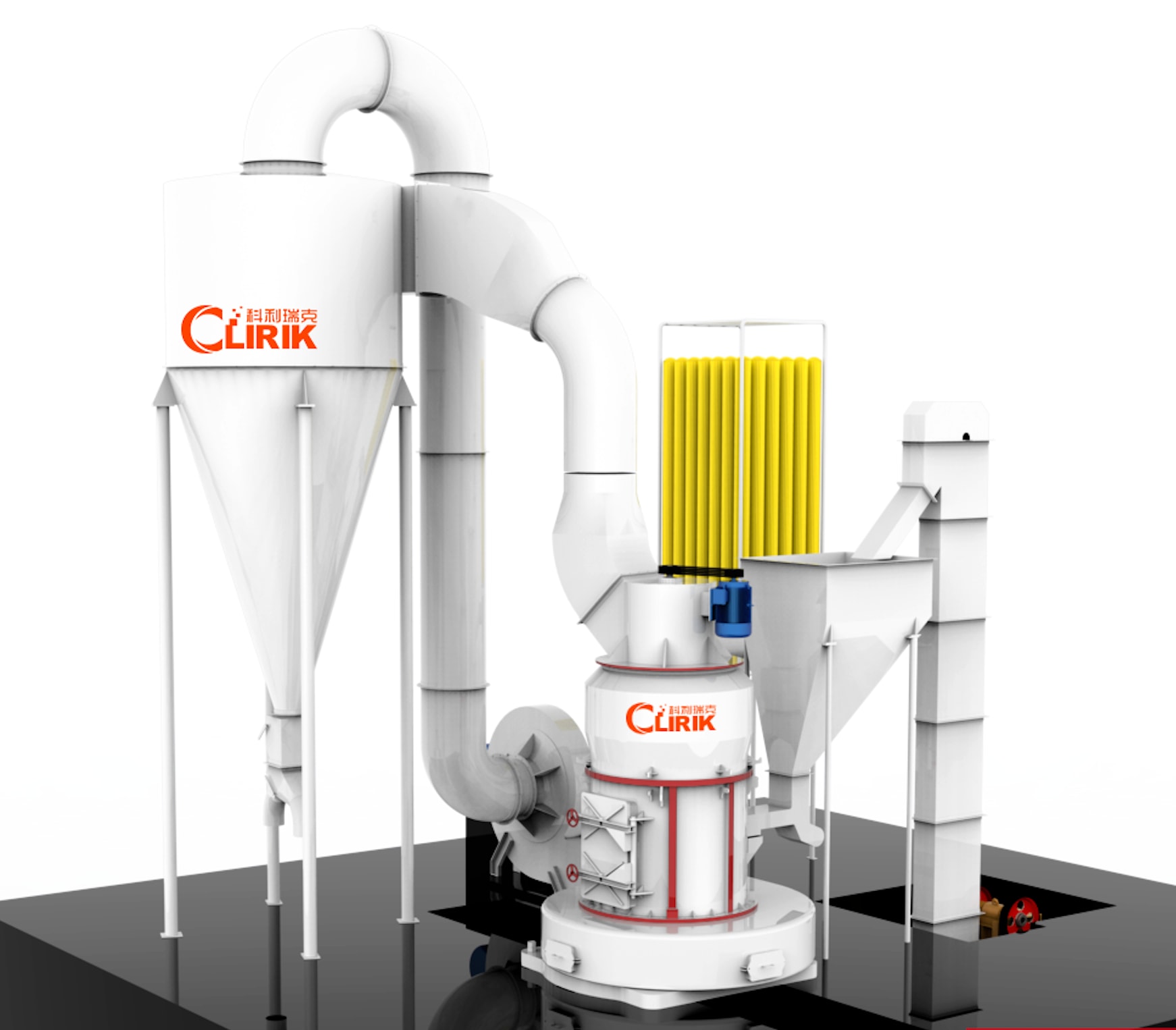

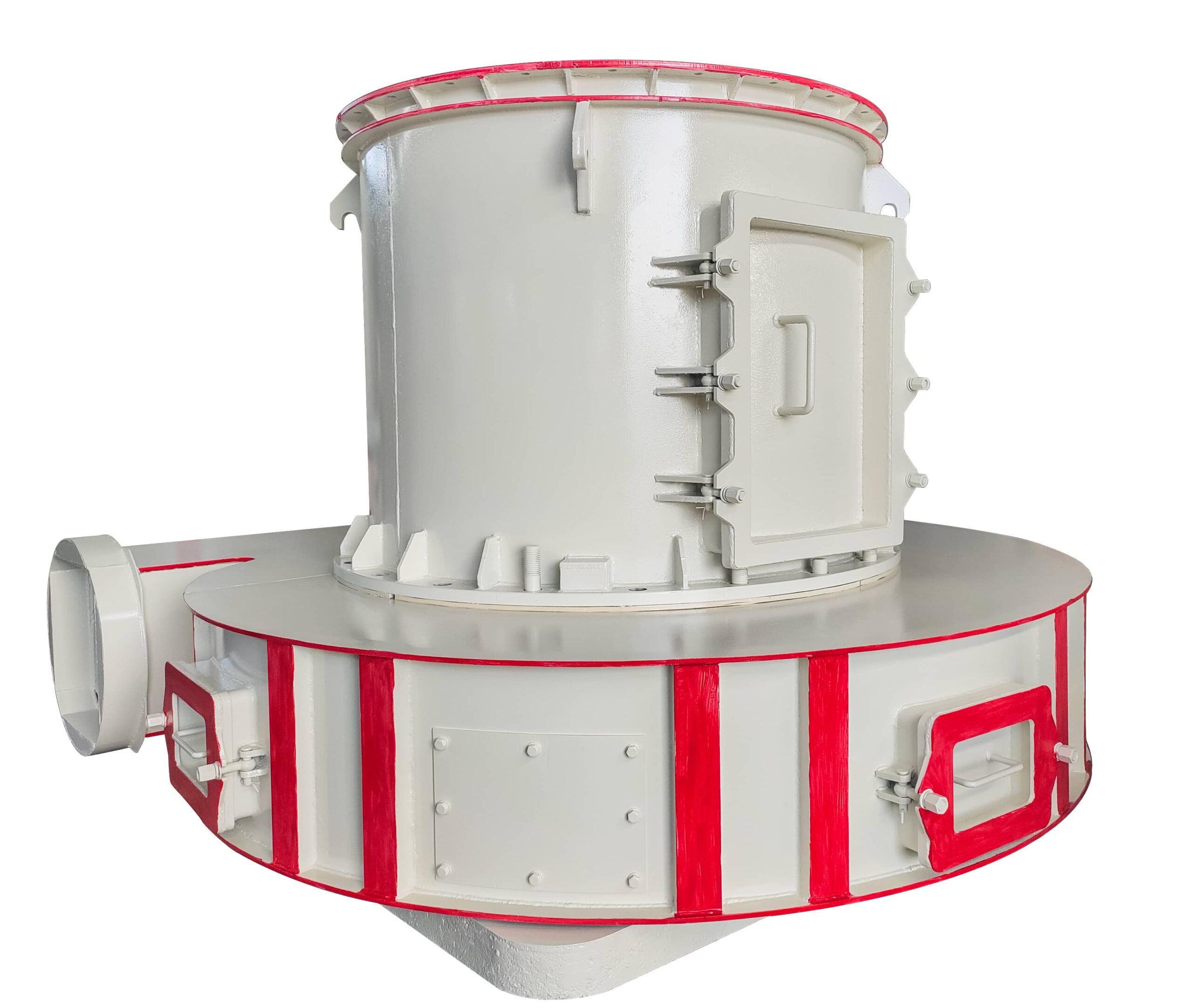

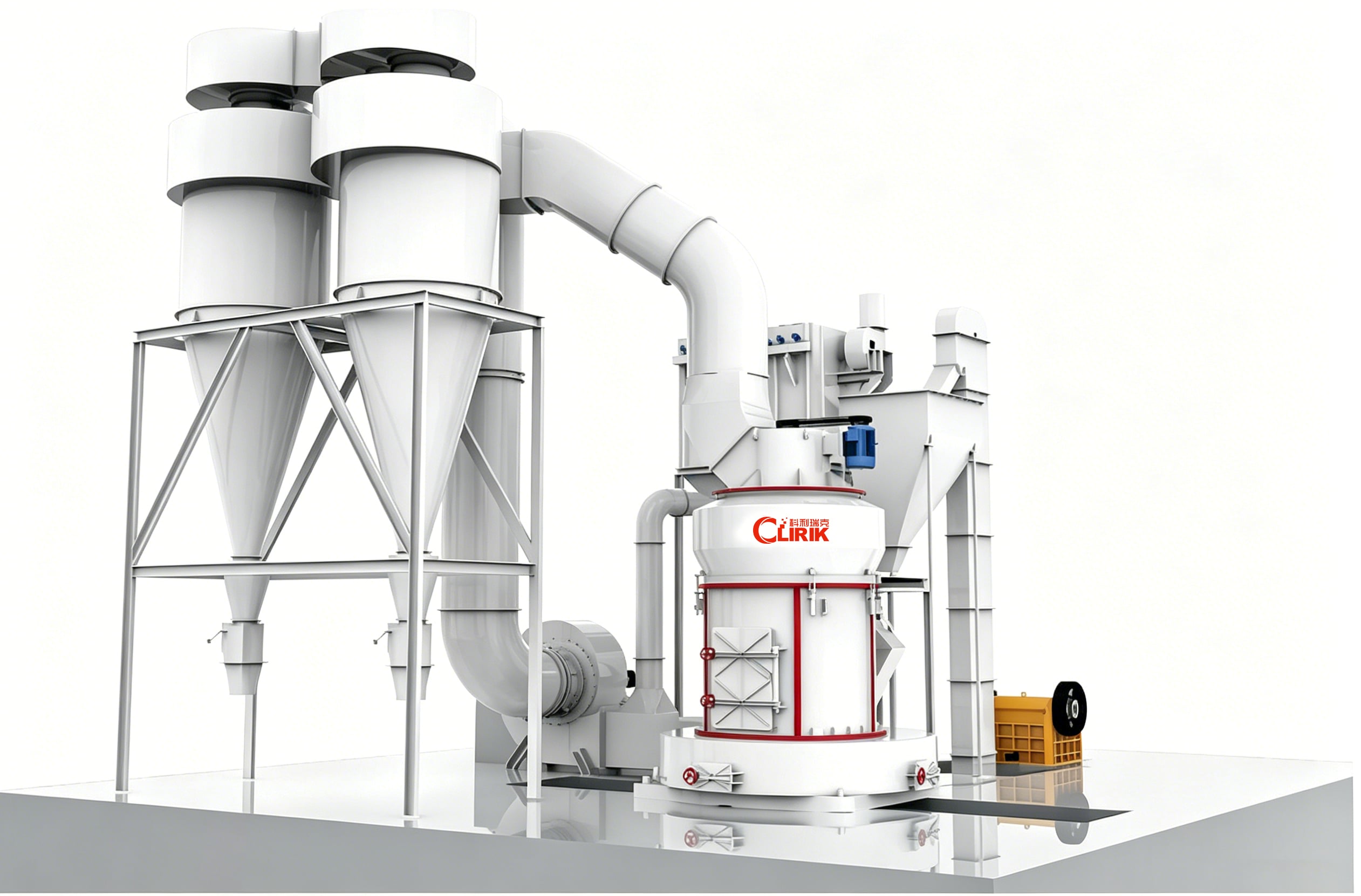

Clirik enhanced roller grinding mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 6 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc. The granularity of the finished powder size can be adjusted between 80 and 500 meshes. Examples of processing materials include quartz, feldspar, barite, calcite, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.
Capacity:
1-35T/H
Maximum feed particle size:
35mm
Output fineness:
80-500mesh
Applicable Materials:
Suitable for quartz, feldspar, barite, calcite, limestone, talc, ceramic, iron ore, bauxite, rock phosphate, coal and more than 400 kinds of non-flammable and non-explosive mineral materials.
Clirik enhanced roller grinding mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 6 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc. The granularity of the finished powder size can be adjusted between 80 and 500 meshes. Examples of processing materials include quartz, feldspar, barite, calcite, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.
Capacity:
1-35T/H
Maximum feed particle size:
35mm
Output fineness:
80-500mesh
Applicable Materials:
Suitable for quartz, feldspar, barite, calcite, limestone, talc, ceramic, iron ore, bauxite, rock phosphate, coal and more than 400 kinds of non-flammable and non-explosive mineral materials.

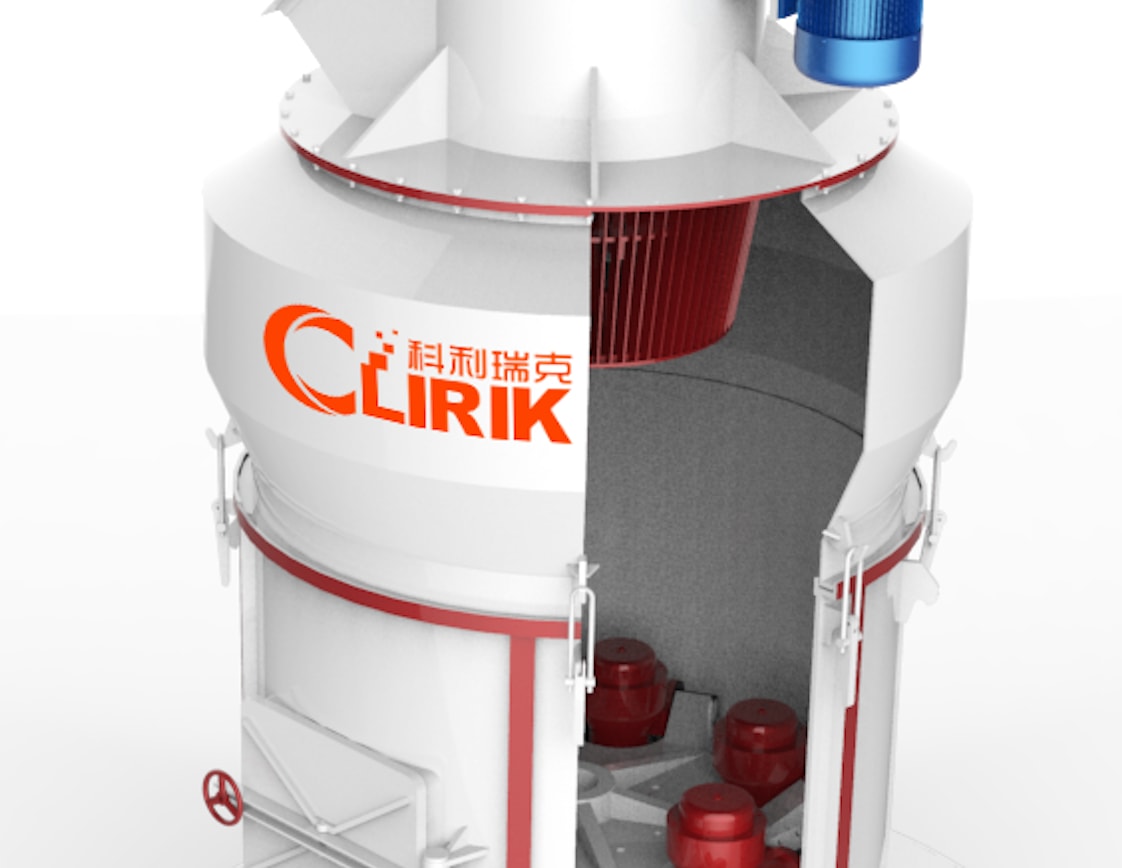

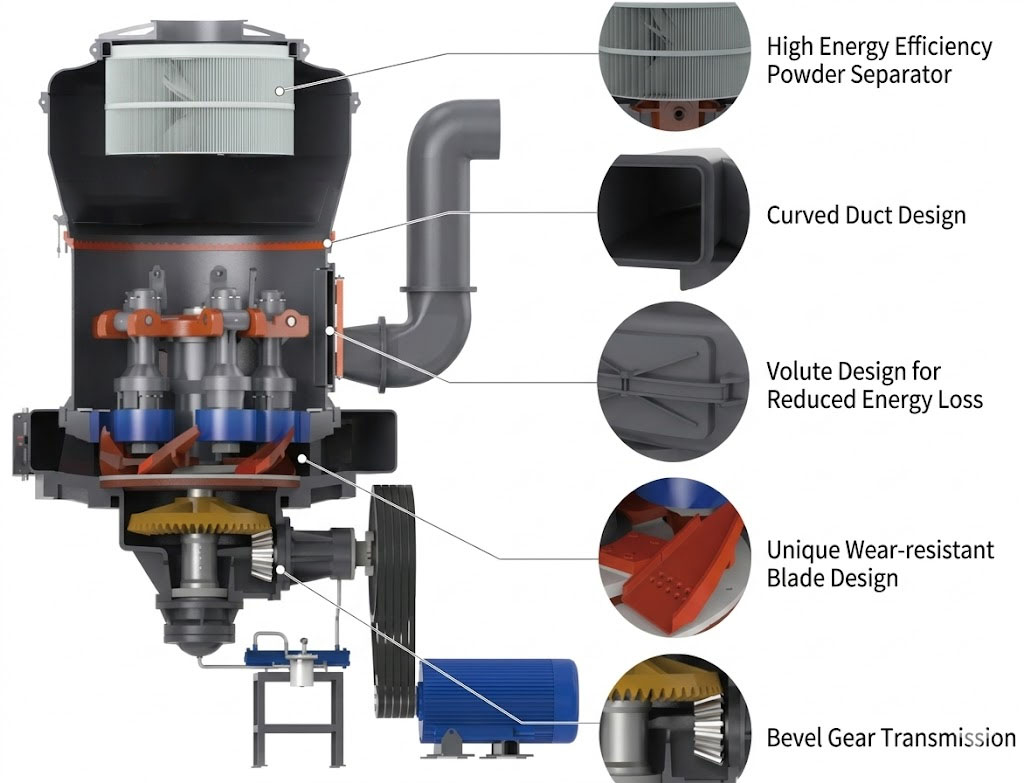

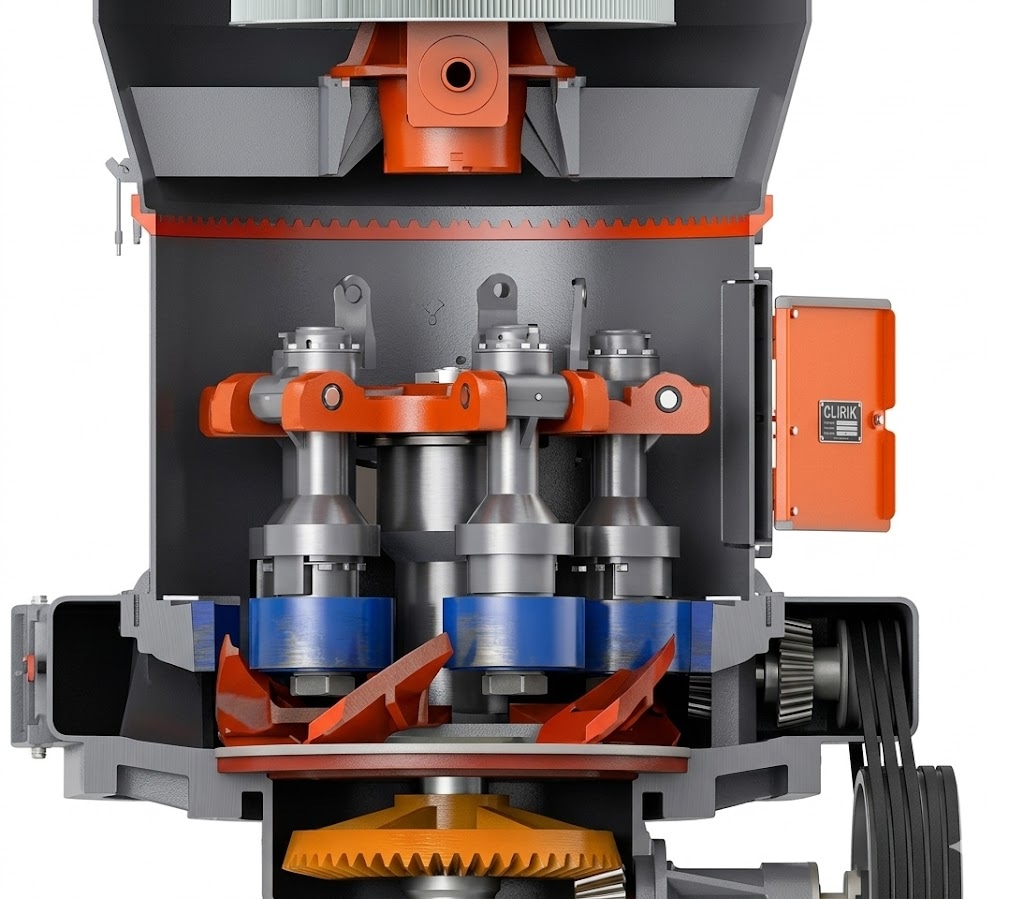

Optimized Grinding Part
Compared to previous models, this mill increases grinding pressure by 10% and area by 15-20%, optimizing layout for maximum efficiency.
Triple Vibrating Damping
Triple damping to resist the vibrating transmit in the main unit base, volute airflow house, unit body, grinding part. Be sure the stable grinding condition.
New Type Impeller with VFD
Equipped the new cage type impeller for classifier, adjust the speed freely by VFD, enlarge the output size range to 80-425 mesh.
Superimposed Multistage Seal
Grinding device adopts superimposed multistage seal, prolong the lubricating cycle, good sealing performance.
Modular Design, High ROI
Vertical structure with small footprint forms an independent system. Low investment, short payback period.
Broad Material Adaptability
Applicable for over 100 minerals under 7 Mohs hardness. High efficiency with stable performance.
Optimized Grinding Part
Compared to previous models, this mill increases grinding pressure by 10% and area by 15-20%, optimizing layout for maximum efficiency.
Triple Vibrating Damping
Triple damping to resist the vibrating transmit in the main unit base, volute airflow house, unit body, grinding part. Be sure the stable grinding condition.
New Type Impeller with VFD
Equipped the new cage type impeller for classifier, adjust the speed freely by VFD, enlarge the output size range to 80-425 mesh.
Superimposed Multistage Seal
Grinding device adopts superimposed multistage seal, prolong the lubricating cycle, good sealing performance.
Modular Design, High ROI
Vertical structure with small footprint forms an independent system. Low investment, short payback period.
Broad Material Adaptability
Applicable for over 100 minerals under 7 Mohs hardness. High efficiency with stable performance.
| Model | Roller Qty (pcs) | Roller Size (mm) | Ring External Dia (mm) | Ring Height H (mm) | Main Shaft Speed (r/min) | Feeding Size (mm) | mesh | Motor (kw) | Capacity (t/h) |
| CLRM9720 | 3–4 | Φ320*200 | 1077 | 200 | 145 | <20 | 80-500 | 45*15*37 | 1–7 |
| CLRM1280 | 3 | Φ370*240 | 1280 | 240 | 125 | <20 | 80-400 | 75*15*55 | 2–12 |
| CLRM1300 | 4 | Φ410*280 | 1390 | 280 | 112 | <20 | 80-400 | 110*22*90 | 3–15 |
| CLRM1620 | 4 | Φ450*300 | 1620 | 300 | 102 | <20 | 80-400 | 160*30*132 | 5–20 |
| CLRM1700A | 4 | Φ510*300 | 1700 | 300 | 102 | <30 | 80-325 | 185*37*160 | 6–25 |
| CLRM1720 | 4 | Φ510*300 | 1850 | 300 | 92 | <35 | 80-325 | 250*45*185 | 6–25 |
| CLRM1900A | 4 | Φ600*300 | 1900 | 300 | 92 | <35 | 80-325 | 250*45*220 | 8–32 |
| CLRM2150 | 4 | Φ600*300 | 2150 | 300 | 85 | <35 | 80-325 | 315*45*280 | 12–35 |
Note: For the motor data such as “45×15×37” means the main motor × classifier motor × blower motor.
Widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc. Suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 6 and humidity less than 6%.
Widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc. Suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 6 and humidity less than 6%.
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
HGM80 Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM80 Layout Drawing
HGM100L-Ⅱ Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM100L-Ⅱ Layout Drawing
HGM125L Layout Drawing
Thousands of production lines operating stably, earning a global reputation for excellence.
HGM125L Layout Drawing
01
Step 1: Material Crushing & Feeding
Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding.
02
Step 2: Grinding Process
The materials are pressed and grinded by the grinding rollers in the main unit.
03
Step 3: Classifying Process
The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector, the coarse particles return to the grinding chamber for regrinding.
04
Step 4: Collection & Discharge
The fine particles are separated and collected, then discharged at the discharging valve as finished products. The airflow is sucked to the blower by return pipe on the top of cyclone collector, forming a sealed circulation system.
01
Step 1: Material Feeding
Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding.
02
Step 2: High-Pressure Multi-Layer Grinding
The materials are pressed and grinded by the grinding rollers in the main unit.
03
Step 3: High-Speed Precision Classifying
The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector, the coarse particles return to the grinding chamber for regrinding.
04
Step 4: Efficient Collection & Eco-Friendly Output
The fine particles are separated and collected, then discharged at the discharging valve as finished products. The airflow is sucked to the blower by return pipe on the top of cyclone collector, forming a sealed circulation system.
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
Production Capacity Advantage
Equipped with 6 specialized HGM production lines, we guarantee robust output and rapid delivery cycles, ensuring a stable and timely supply for even the largest global industrial projects
Location Advantages
Ideally situated just 20 minutes from Shanghai Pudong International Airport (PVG), Clirik or our company offers seamless accessibility for international factory inspections and a high-speed logistics gateway for rapid global shipping.
20+
Years Excellence
120+
Countries
280+
Materials
3600+
Projects
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
Advanced Mineral Analysis (XRF/XRD)
We provide precise chemical and physical testing to identify your mineral’s industrial potential and ensure the most accurate equipment selection.
Industrial-Scale Trial Runs
Ship your raw materials to our facility for a live demonstration on our dedicated HGM80 pilot line to witness real working performance purchase.
Certified Performance Data
Receive detailed technical reports on achievable fineness (D97), hourly output, and power consumption to provide an empirical foundation for your investment.
Tailored Technical Consulting
Based on test results, we customize your system configuration and provide ROI projections to maximize your long-term operational profitability.
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote troubleshooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
Experienced Global Installation Team
Our seasoned engineers provide on-site assembly, precision alignment, and seamless commissioning worldwide, ensuring your production line starts correctly from day one.
Advanced Remote Diagnostic Support
Leveraging real-time data monitoring, our senior electrical experts provide instant remote trouble shooting and ‘cloud-based’ technical guidance to minimize project downtime.
Comprehensive Technical Training
We offer thorough hands-on training for your local operators, covering safety protocols, routine maintenance, and system optimization to ensure long-term operational success.
Rapid Response & Lifecycle Service
With a focus on customer success, our rapid-response system provides lifetime technical support and genuine spare parts delivery to keep your factory running at peak efficiency.
We are a direct manufacturer with an extensive nationwide production, ensuring factory-direct quality and competitive pricing.
Our CLRM mill features optimized grinding parts with 10% higher grinding pressure and 15-20% larger grinding area. Triple vibration damping ensures stable operation. The output size range is enlarged to 80-425 mesh, offering higher capacity and better efficiency.
The mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 6 and humidity less than 6%, including quartz, calcite, limestone, talc, barite, gypsum, and more than 400 kinds of materials.
One year. We supply spare parts for you at the lowest cost.
Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
We are a direct manufacturer with an extensive nationwide production, ensuring factory-direct quality and competitive pricing.
Our CLRM mill features optimized grinding parts with 10% higher grinding pressure and 15-20% larger grinding area. Triple vibration damping ensures stable operation. The output size range is enlarged to 80-425 mesh, offering higher capacity and better efficiency.
The mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 6 and humidity less than 6%, including quartz, calcite, limestone, talc, barite, gypsum, and more than 400 kinds of materials.
One year. We supply spare parts for you at the lowest cost.
Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
