Products

Mica Powder Making Machine

Mica Powder Making Machine There are minaly three different kind of micr powder making machines in Shanghai Clirik, they are HGM micro powder grinding mill, YGM Raymond mill and CLUM vertical roller mill, all of them can be used in mica powder grinding, besides mica, our grinbding mill also can be used in more than 300 kinds of minerals powder grinding, such as: calcium carbonate, calcite, gypsum,

Over View
Features
Applications
Technical Data

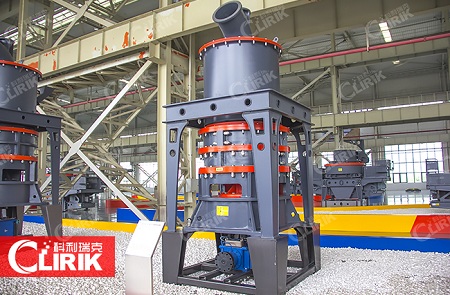

Mica Powder Making Machine

There are minaly three different kind of  micr powder making machines in Shanghai Clirik, they are HGM micro powder grinding mill, YGM Raymond mill and CLUM vertical roller mill, all of them can be used in mica powder grinding, besides mica, our grinbding mill also can be used in more than 300 kinds of minerals powder grinding, such as: calcium carbonate, calcite, gypsum, marble, kaolin, limestone, dolomite and so on.

mica powder making machine processing minerals

1. High powder fineness process, the powder fineness can be adjusted between 300-2500 mesh;

2. High capacity, there are 5 models mica powder making machine in Shanghai Clirik, the highest capacity can up to 45 t/h;

3. Environment friend, Clirik mica powder making machine id environment friendly, it was popularity by our customers;

4. Factory price, compare with other brand, Clirik is grinding mill machine manufacurer, so we can supply our customer machines in a lower price;

5. Good after sales service, 24 hours hot line can help you relove any problems you meet.

Shanghai Clirik mica powder making machine, can be used in 50 mesh~3000mesh, 5-47 micron. The capacity (ton/hour) ranges from 0.4T/H to 45T/H. Clirik ore mineral crushing, screening, fine powder grinding machine has been exported to many countries which includes China, India, Pakistan, Malaysia, Vietnam, Thailand, Egypt, Nigeria, South Africa, Brazil, Canada, Columbia, Chile, Australia, Russia and so on.

mica powder making machine
Prrameter of Clirik Mica Powder Making Machine

HGM micro powder grinding mill

Model HGM80 HGM90 HGM100 HGM125 HGM1680
Ring Diameter(mm) 800 900 1000 1250 1680
Ring Number (PCS) 3 3-4 4 4 4
Roller Number(PCS) 18-21 24-29 28-36 30-44 30-40
Main Shaft Speed (r. p. min) 230-240 200-220 180-200 135-155 120-130
Input Size (mm) ≤10 ≤10 ≤15 ≤15 ≤20
Finished Size (um/mesh) 74-5
(200-2500)
74-5
(200-2500)
74-5
(200-2500)
100-6
(150-2000)
100-9
(150-1500)
Capacity (t/h) 0.4-4.5 0.6-6.5 1-9 2-16 3.8-30
Outlet Size L*W*H (m) 13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 14*9*10.25 26.3*7.5*11.9

YGM Raymond mill

Type Roller Max. feeding size(mm) Fineness of product(mm) Output (t/h) Power of machine(KW) Size(mm)
No. Dimension(mm) Height(mm)
YGM7815 3 260 150 15-20 0.025-0.005 0.28-3 18.5 4300*3500*5100
YGM8314 3 270 140 15-20 0.025-0.005 0.35-3.4 22 5300*4100*5200
YGM9517 4 310 170 15-25 0.025-0.005 1.5-6.5 37 7100*5900*7900
YGM4121 5 410 210 15-25 0.613-0.044 3-12 75 7850*8000*9700

CLUM vertical roller mill

Main configuration and production
     Model
Item
CLUM1425 CLUM1632 CLUM1736
Working Diameters(mm) 1400 1600 1700
Number of rollers(pieces) 3 3 3
Number of classifier(pieces) 5 7 7
Power of classifier(Kw) 5X15 7X15 7X(15~18.5)
Main unit power (Kw) 250 315 355
Blower power(Kw) 200 250 315
Feed size (mm) <10mm <10mm <10mm
Moisture of feeding material <3% <3% <3%
Less than 2μm=34%
output(t/h)
11-14 13-17 15-19
Less than 2μm=46%
output(t/h)
7-8 9-10 11-12
Less than 2μm=60%
output(t/h)
3-4 / /
Material: based on calcite
Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments
