Location:
Tajikistan
Material:
Marble
Annual Production Capacity:
3900 tons/year
Output Fineness Required:
5 micron
Project Installation time:
2026
Clirik Solution: HGM100L-II with Multi-impeller Classifier

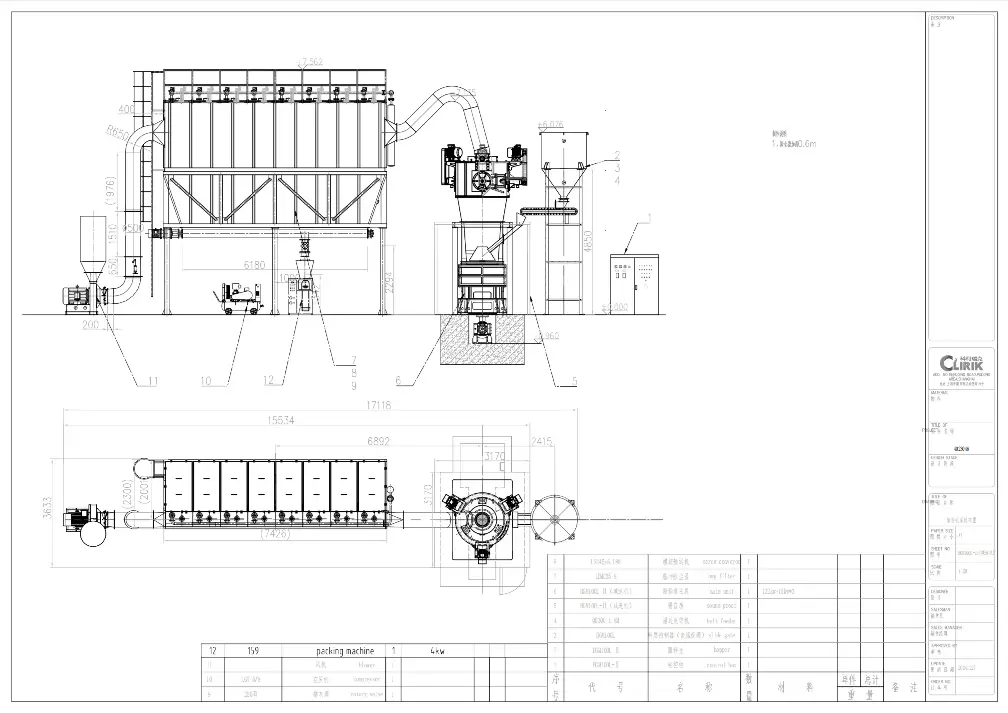

Equipment Configuration: Jaw Crusher, Bucket Elevator, Hopper, Vibrating Feeder, HGM Main Unit, Classifier, Blower, Pulse Dust Collector, and Electronic Control Cabinet.
Service Support: on-site installation guidance by professional installation engineers.
Project Background
We are supporting our partner in Tajikistan in setting up a modern limestone processing line. Given the local site conditions and the specific requirements for material granularity, the project aims to replace outdated crushing methods with a more precise, high-capacity configuration. The goal is simple: to increase daily output while ensuring the final product meets strict industrial quality standards and maintains highly consistent sizing.
Location:
Tajikistan
Material:
Marble
Annual Production Capacity:
3900 tons/year
Output Fineness Required:
5 micron
Project Installation time:
2025
Clirik Solution: HGM100L-II with Multi-impeller Classifier
Equipment Configuration: Jaw Crusher, Bucket Elevator, Hopper, Vibrating Feeder, HGM Main Unit , Classifier, Blower, Pulse Dust Collector, and Electronic Control Cabinet.
Service Support: on-site installation guidance by professional installation engineers.
Project Background
We are supporting our partner in Tajikistan in setting up a modern limestone processing line. Given the local site conditions and the specific requirements for material granularity, the project aims to replace outdated crushing methods with a more precise, high-capacity configuration. The goal is simple: to increase daily output while ensuring the final product meets strict industrial quality standards and maintains highly consistent sizing.
Feeding and Conveying (Material Preparation):
The raw material is crushed to particles smaller than 20 mm and lifted by the bucket elevator to the storage hopper. A frequency-controlled vibrating feeder ensures a continuous and uniform material flow into the grinding chamber, preventing mechanical overload.
HGM Main Unit (Multi-Layer Grinding System):
The core of the production line, featuring a unique 4-layer grinding design. Utilizing centrifugal force, the rollers crush, roll, and shear the material against the rings. This multi-stage grinding logic delivers significantly higher fineness and throughput compared to traditional impact mills.
Multi-Impeller Classifier (Precision Screening):
Integrated at the main unit’s top, this advanced classifier features three independent frequency-controlled motors. By optimizing centrifugal airflow through synchronized multi-rotor rotation, it precisely adjusts the D97 cut-off point, ensuring a sharp particle size distribution and efficient powder collection.

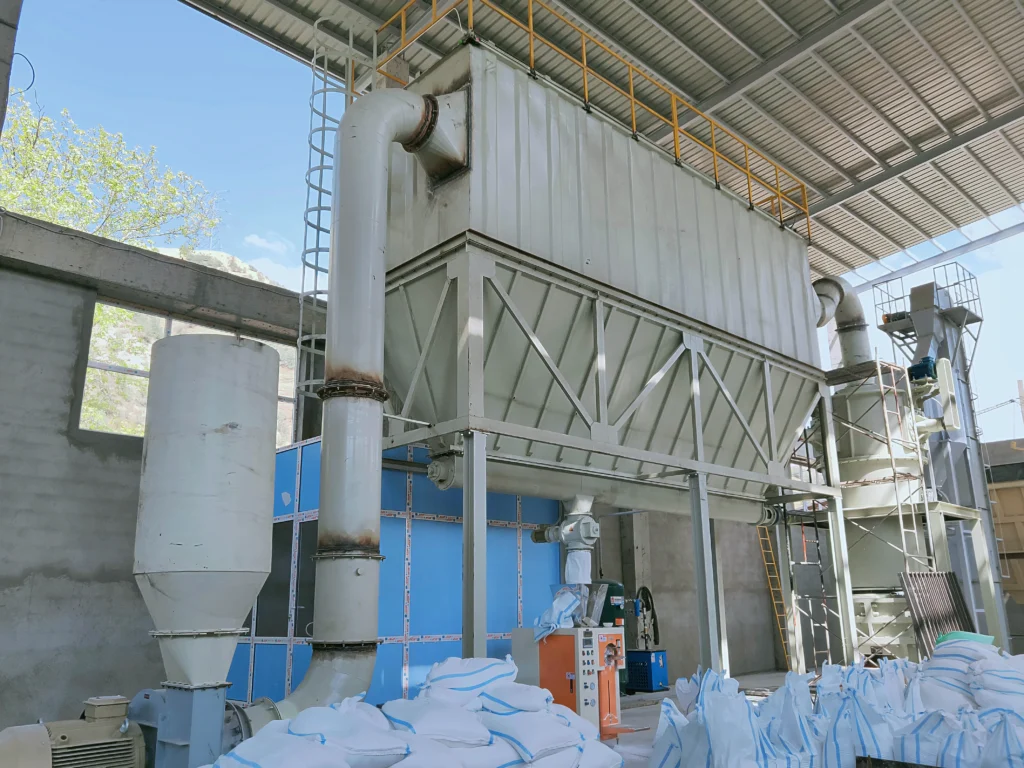

Pulse Dust Collector (Environmental Protection):
This high-efficiency tank-type collector utilizes premium filter bags to capture 100% of the finished powder directly from the airflow. Operating under negative pressure, it ensures zero dust leakage and a 99.9% recovery rate, making it ideal for ultra-fine applications where total product recovery is critical.
High-Pressure Blower (Airflow Circulation):
The “lungs” of the system, providing the necessary negative pressure and high-velocity airflow to lift and transport the powder. Equipped with a professional silencer, it ensures a stable pneumatic environment for the entire closed-loop grinding circuit.
PLC Intelligent Control System (Centralized Operation):
The “brain” of the plant, allowing engineers to monitor vibration, motor frequency, temperature, and system pressure in real-time. This automated interface ensures high batch-to-batch consistency and protects the equipment through intelligent fault-diagnostics and emergency shutdowns.
Feeding and Conveying (Material Preparation):
The raw material is crushed to particles smaller than 20 mm and lifted by the bucket elevator to the storage hopper. A frequency-controlled vibrating feeder ensures a continuous and uniform material flow into the grinding chamber, preventing mechanical overload.
HGM Main Unit (Multi-Layer Grinding System):
The core of the production line, featuring a unique 4-layer grinding design. Utilizing centrifugal force, the rollers crush, roll, and shear the material against the rings. This multi-stage grinding logic delivers significantly higher fineness and throughput compared to traditional impact mills.
Multi-Impeller Classifier (Precision Screening):
Integrated at the main unit’s top, this advanced classifier features three independent frequency-controlled motors. By optimizing centrifugal airflow through synchronized multi-rotor rotation, it precisely adjusts the D97 cut-off point (325–3000 mesh), ensuring a sharp particle size distribution and highly efficient ultra-fine powder collection.
Pulse Dust Collector (Environmental Protection):
This high-efficiency tank-type collector utilizes premium filter bags to capture 100% of the finished powder directly from the airflow. Operating under negative pressure, it ensures zero dust leakage and a 99.9% recovery rate, making it ideal for ultra-fine applications where total product recovery is critical.
High-Pressure Blower (Airflow Circulation):
The “lungs” of the system, providing the necessary negative pressure and high-velocity airflow to lift and transport the powder. Equipped with a professional silencer, it ensures a stable pneumatic environment for the entire closed-loop grinding circuit.
PLC Intelligent Control System (Centralized Operation):
The “brain” of the plant, allowing engineers to monitor vibration, motor frequency, temperature, and system pressure in real-time. This automated interface ensures high batch-to-batch consistency and protects the equipment through intelligent fault-diagnostics and emergency shutdowns.

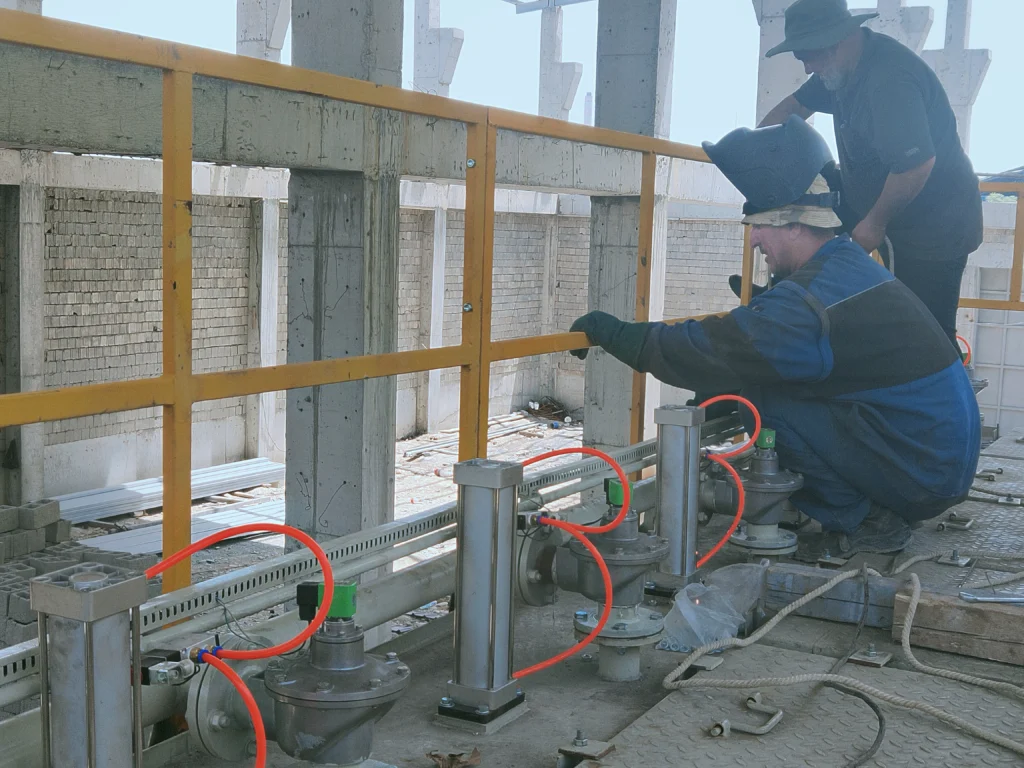

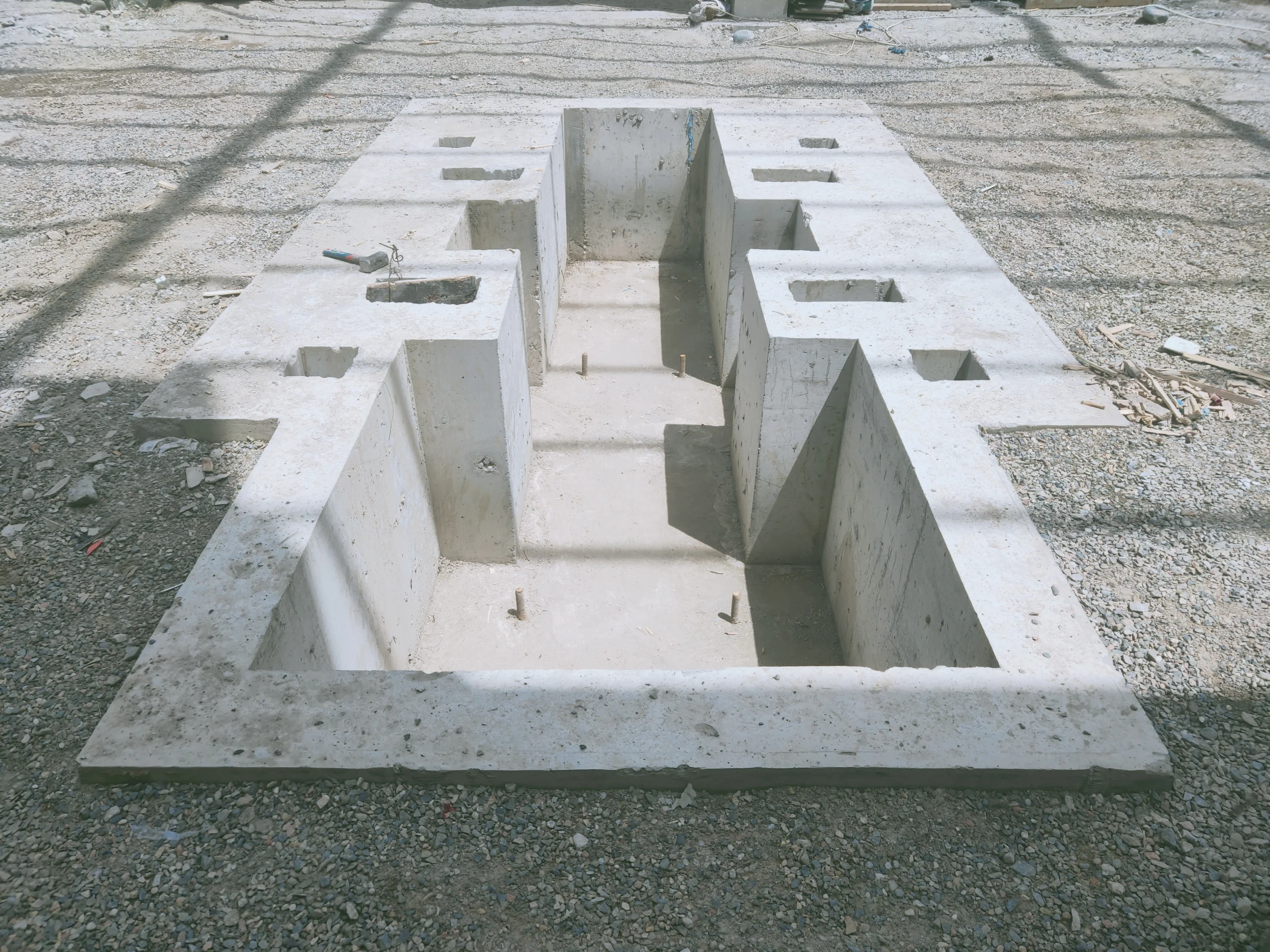

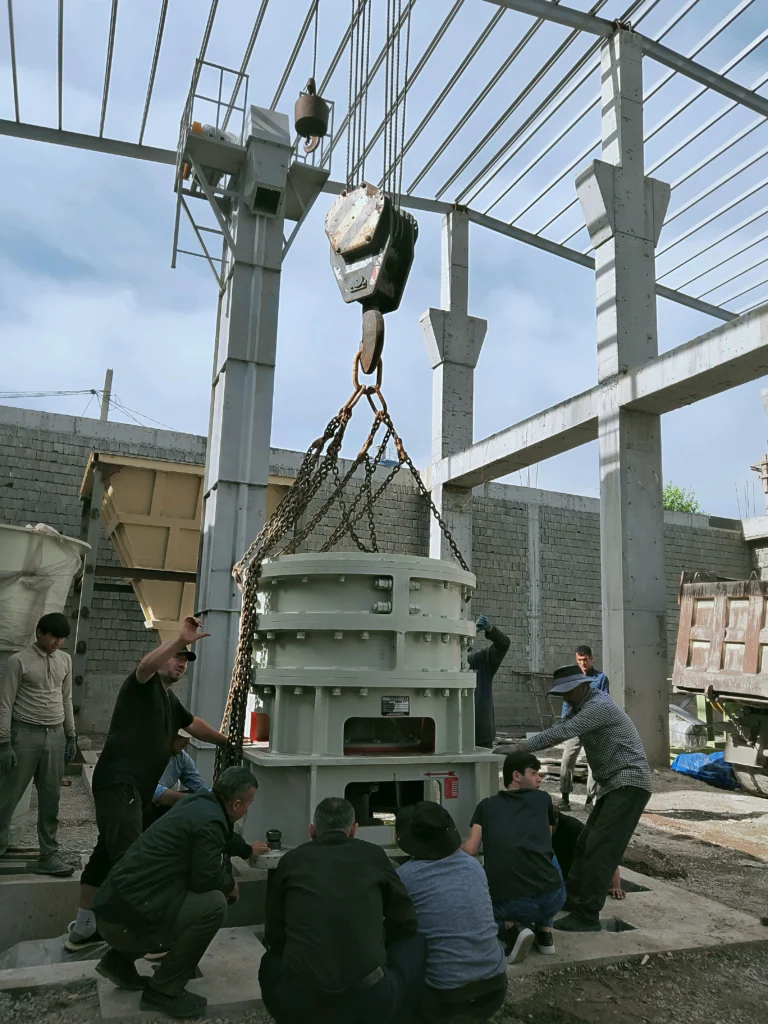

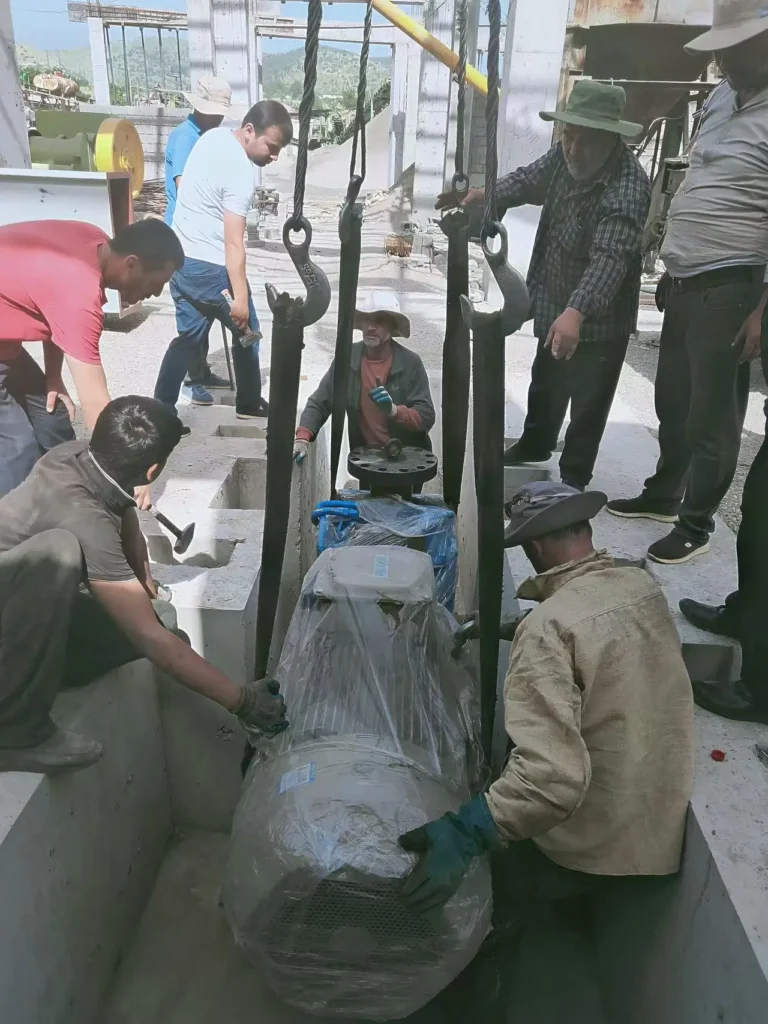

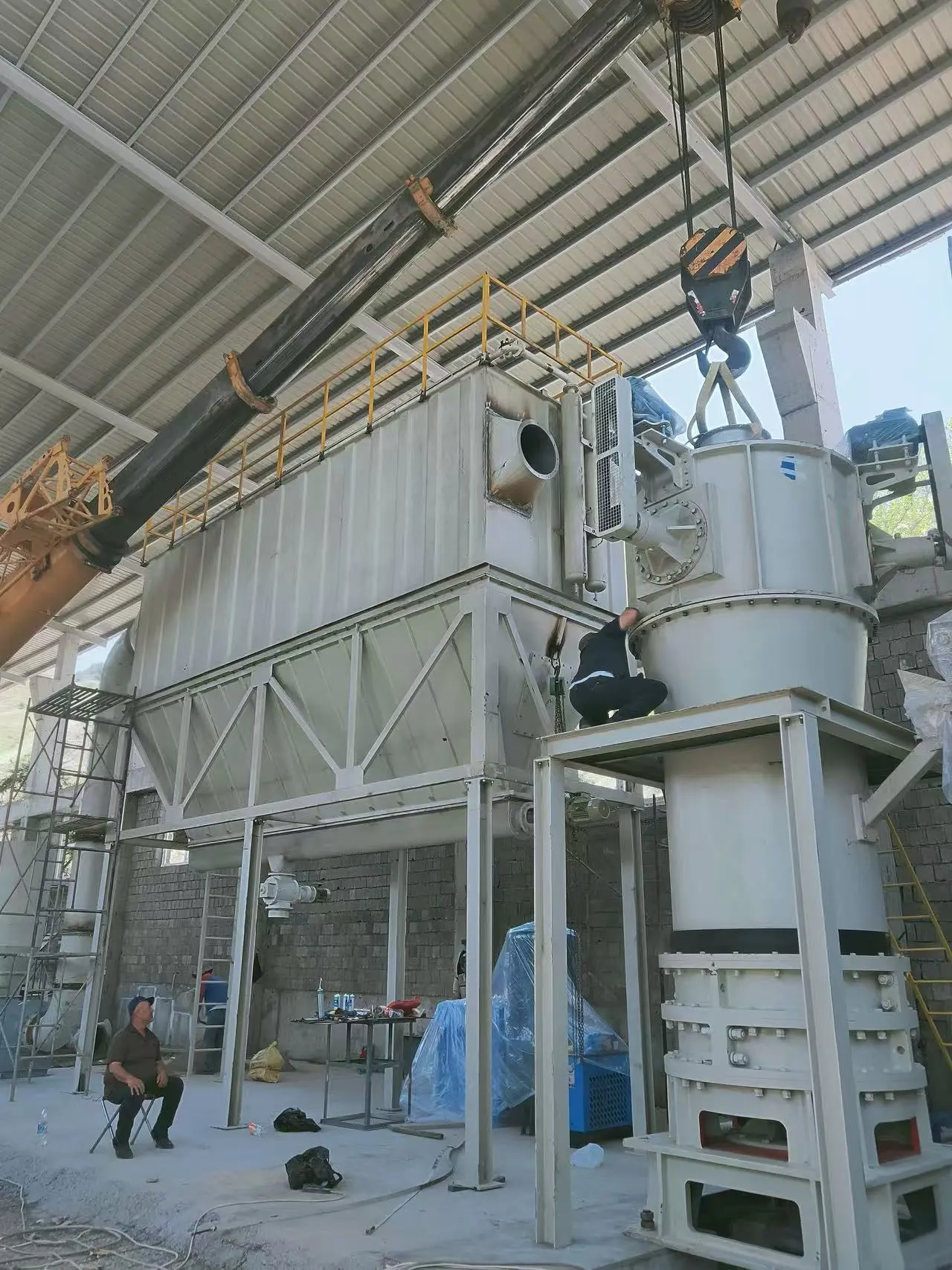

Our engineering team manages every detail of the installation process with precision. From on-site preparation to the careful assembly of core components, we ensure that every machine is set up to operate at peak efficiency from the very first day.
Final precision tuning and system testing are the last steps before official handover. Our commissioning process guarantees that every machine is running at peak performance, ready to deliver consistent output and high efficiency from the very first day of production.
Our engineering team manages every detail of the installation process with precision. From on-site preparation to the careful assembly of core components, we ensure that every machine is set up to operate at peak efficiency from the very first day.
Final precision tuning and system testing are the last steps before official handover. Our commissioning process guarantees that every machine is running at peak performance, ready to deliver consistent output and high efficiency from the very first day of production.
