Focus on the field of micro powder grinding
Focus on the field of micro powder grinding
Location:
China
Material:
Marble
Annual Production Capacity:
15000 tons/year
Output Fineness Required:
1500 mesh
Project Installation time:
2025
Clirik Solution: CLUM1736 Vertical Roller Mill
Equipment Configuration: CLUM1736 Vertical Roller Mill, Cursher, Belt Conveyor,Raw material hopper,Belt weigher, bucket elevator,screw feeder,air-lock discharging valve,pulse dust collector,Silencer, control cabinet, blower.
Service Support: On-site installation guidance by professional installation engineers
Project Background
The client, a long-standing partner operating in the non-metallic mineral processing sector, specializes in processing high-grade limestone and marble for key industries such as paints, coatings, and plastics. Having previously successfully integrated our company’s HGM ring roller mill and CLUM1425 vertical roller mill into their operations, the client is now experiencing rapid business growth and expanding their production capacity.
To meet increasing market demand for higher-purity and finer mineral powders, the client has decided to invest in a new production line featuring our flagship CLUM1736 Ultrafine Vertical Roller Mill. This new setup is engineered to process marble efficiently across multiple specifications—delivering targeted hourly outputs of 15 tons for 600 mesh, 13 tons for 800 mesh, and 5 tons for 1500 mesh—further strengthening their market competitiveness and production efficiency.
Location:
China
Material:
Marble
Annual Production Capacity:
15000 tons/year
Output Fineness Required:
1500 mesh
Project Installation time:
2025
Clirik Solution: CLUM1736 Vertical Roller Mill
Equipment Configuration: CLUM1736 Vertical Roller Mill, Cursher, Belt Conveyor,Raw material hopper,Belt weigher, bucket elevator,screw feeder,air-lock discharging valve,pulse dust collector,Silencer, control cabinet, blower.
Service Support: On-site installation guidance by professional installation engineers
Project Background
The client, a long-standing partner operating in the non-metallic mineral processing sector, specializes in processing high-grade limestone and marble for key industries such as paints, coatings, and plastics. Having previously successfully integrated our company’s HGM ring roller mill and CLUM1425 vertical roller mill into their operations, the client is now experiencing rapid business growth and expanding their production capacity.
To meet increasing market demand for higher-purity and finer mineral powders, the client has decided to invest in a new production line featuring our flagship CLUM1736 Ultrafine Vertical Roller Mill. This new setup is engineered to process marble efficiently across multiple specifications—delivering targeted hourly outputs of 15 tons for 600 mesh, 13 tons for 800 mesh, and 5 tons for 1500 mesh—further strengthening their market competitiveness and production efficiency.
Feeding and Conveying(Material Preparation):
The crushed Calcite is lifted by the bucket elevator and stored in the raw material silo. The weighting belt and feeder ensure a stable and controlled feeding process into the CLUM1736 roller mill.
CLUM1736 Main Unit (Grinding System):
The core of the line, utilizing an advanced grinding curve design where rollers and plate liners create a stable material bed. It crushes and pulverizes raw calcite with 30-40% higher efficiency than traditional ball mills.
Multi-heads Classifier (Precision Screening):
Integrated at the top of the mill, this high-precision classifier system uses centrifugal force to separate fine powder. For our client, the 6-heads configuration ensures the D70 cut-off point is strictly maintained at 2μm.
Secondary Classifying System (Quality Enhancement):
Added specifically for high-end PVC requirements, this system further refines the powder to increase the 2μm content, ensuring a superior “ultra-fine” grade that blends seamlessly with resin.
Pulse Dust Collector (Environmental Protection):
A high-efficiency tank-type collector that captures finished powder with zero dust leakage, maintaining a clean production environment under negative pressure.
Central Control System
(PLC/DCS):
The “brain” of the plant, allowing our client’s engineers to monitor vibration, temperature, and pressure in real-time from a visual operation room, ensuring 24/7 stable running.
Feeding and Conveying(Material Preparation):
The crushed Calcite is lifted by the bucket elevator and stored in the raw material silo. The weighting belt and feeder ensure a stable and controlled feeding process into the CLUM1736 roller mill.
CLUM1736 Main Unit (Grinding System)
The core of the line, utilizing an advanced grinding curve design where rollers and plate liners create a stable material bed. It crushes and pulverizes raw calcite with 30-40% higher efficiency than traditional ball mills.
Multi-heads Classifier (Precision Screening)
Integrated at the top of the mill, this high-precision classifier system uses centrifugal force to separate fine powder. For our client, the 6-heads configuration ensures the D70 cut-off point is strictly maintained at 2μm.
Secondary Classifying System (Quality Enhancement)
Added specifically for high-end PVC requirements, this system further refines the powder to increase the 2μm content, ensuring a superior “ultra-fine” grade that blends seamlessly with resin.
Pulse Dust Collector (Environmental Protection)
A high-efficiency tank-type collector that captures finished powder with zero dust leakage, maintaining a clean production environment under negative pressure.
Central Control System (PLC/DCS)
The “brain” of the plant, allowing our client’s engineers to monitor vibration, temperature, and pressure in real-time from a visual operation room, ensuring 24/7 stable running.
To ensure the optimal performance and longevity of the newly acquired CLUM1632 Ultrafine Vertical Roller Mill, we provided the client with comprehensive, end-to-end technical support throughout the entire installation and commissioning process. Our service model emphasizes precision and structural integrity, ensuring that every phase of the project meets international engineering standards.

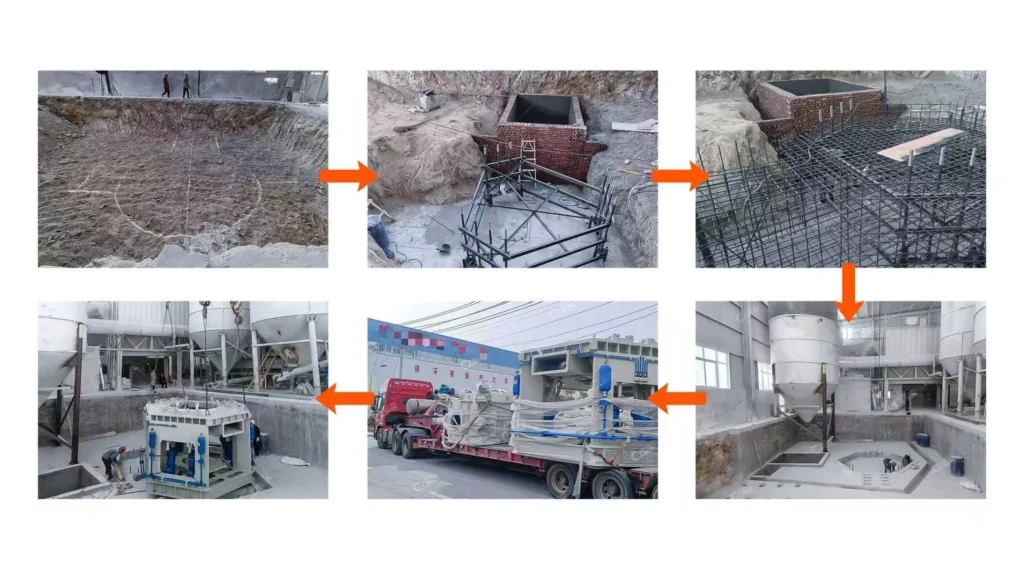

Foundation Construction and Preparation
We provided step-by-step guidance for the foundation construction to ensure a stable and vibration-free operating environment. Our support encompassed the entire lifecycle of the foundation:
Precision Installation
Following the completion of the foundation, our technical team directed the precise installation of the grinding system:
Commissioning and Optimization
Upon mechanical completion, we conducted a rigorous multi-stage commissioning process:
By adhering to this systematic approach, we have ensured that the CLUM1736 is not only installed to peak specifications but is also fully optimized to integrate with the client’s existing production workflow.
The Shift from Volume to Value:
China remains a dominant global force in the mineral powder sector, but the market is undergoing a profound structural evolution. The era of mass-producing low-grade fillers is being replaced by a focus on high-value specialization. Industrial leaders are pivoting toward the production of functional, ultra-fine powders designed for high-end downstream sectors such as precision polymers, advanced coatings, and specialized papermaking.
Precision as a Market Prerequisite:
Technological requirements are no longer just about “fineness” but about absolute consistency. The market now demands a rigorous “top-cut” control, ensuring the total absence of oversized particles. This level of precision is the new standard for suppliers aiming to integrate into the supply chains of global high-tech manufacturers, where particle uniformity directly dictates the quality of the final product.
The Sustainability Mandate:
Environmental compliance has transitioned from a regulatory burden to a core competitive advantage. Under national “Green Industry” initiatives, the sector is rapidly adopting closed-loop production systems. Preference is shifting toward equipment that offers superior dust suppression and lower energy consumption, as sustainable manufacturing is now a mandatory “license to operate” in major industrial hubs.
The Rise of the Smart Factory:
To combat rising operational costs and ensure product stability, the industry is embracing digital transformation. The new benchmark for success is “Lean Production”—utilizing centralized control systems to manage massive production clusters with minimal human intervention. This shift toward highly automated, continuous-operation facilities allows domestic producers to maintain a competitive edge through optimized labor efficiency and predictable output quality.
The Shift from Volume to Value:
China remains a dominant global force in the mineral powder sector, but the market is undergoing a profound structural evolution. The era of mass-producing low-grade fillers is being replaced by a focus on high-value specialization. Industrial leaders are pivoting toward the production of functional, ultra-fine powders designed for high-end downstream sectors such as precision polymers, advanced coatings, and specialized papermaking.
Precision as a Market Prerequisite:
Technological requirements are no longer just about “fineness” but about absolute consistency. The market now demands a rigorous “top-cut” control, ensuring the total absence of oversized particles. This level of precision is the new standard for suppliers aiming to integrate into the supply chains of global high-tech manufacturers, where particle uniformity directly dictates the quality of the final product.
The Sustainability Mandate:
Environmental compliance has transitioned from a regulatory burden to a core competitive advantage. Under national “Green Industry” initiatives, the sector is rapidly adopting closed-loop production systems. Preference is shifting toward equipment that offers superior dust suppression and lower energy consumption, as sustainable manufacturing is now a mandatory “license to operate” in major industrial hubs.
The Rise of the Smart Factory:
To combat rising operational costs and ensure product stability, the industry is embracing digital transformation. The new benchmark for success is “Lean Production”—utilizing centralized control systems to manage massive production clusters with minimal human intervention. This shift toward highly automated, continuous-operation facilities allows domestic producers to maintain a competitive edge through optimized labor efficiency and predictable output quality.
