Location:
India
Material:
Calcite & Marble
Annual Production Capacity:
9000 tons/year
Output Fineness Required:
5-10 micron
Project Installation time:
2025
Clirik Solution: HGM100L-II with Multi-impeller Classifier
Equipment Configuration: Jaw Crusher, Bucket Elevator, Hopper, Vibrating Feeder, HGM Main Unit, Classifier, Blower, Pulse Dust Collector, and Electronic Control Cabinet.
Service Support: on-site installation guidance by professional installation engineers.
Project Background
Following the successful operation of their first HGM100L-II line, the Indian client has achieved remarkable business growth and profitability. Based on their deep trust in our equipment quality and technical expertise, the client has decided to cooperate with us again to diversify their product fineness.
For this expansion, the client invested in the HGM100L-II with 3-Impeller Classifier Grinding Production Line. This advanced system will process calcite and marble into ultra-fine powder (5–10 microns), specifically catering to high-end applications in the plastic and paint industries.
Location:
India
Material:
Calcite & Marble
Annual Production Capacity:
9000 tons/year
Output Fineness Required:
5-10 micron
Project Installation time:
2025
Clirik Solution: HGM100L-II with Multi-impeller Classifier
Equipment Configuration: Jaw Crusher, Bucket Elevator, Hopper, Vibrating Feeder, HGM Main Unit , Classifier, Blower, Pulse Dust Collector, and Electronic Control Cabinet.
Service Support: on-site installation guidance by professional installation engineers.
Project Background
Following the successful operation of their first HGM100L-II line, the Indian client has achieved remarkable business growth and profitability. Based on their deep trust in our equipment quality and technical expertise, the client has decided to cooperate with us again to diversify their product fineness.
For this expansion, the client invested in the HGM100L-II with 3-Impeller Classifier Grinding Production Line. This advanced system will process calcite and marble into ultra-fine powder (5–10 microns), specifically catering to high-end applications in the plastic and paint industries.
Feeding and Conveying (Material Preparation):
The raw material is crushed to particles smaller than 20 mm and lifted by the bucket elevator to the storage hopper. A frequency-controlled vibrating feeder ensures a continuous and uniform material flow into the grinding chamber, preventing mechanical overload.
HGM Main Unit (Multi-Layer Grinding System):
The core of the production line, featuring a unique 4-layer grinding design. Utilizing centrifugal force, the rollers crush, roll, and shear the material against the rings. This multi-stage grinding logic delivers significantly higher fineness and throughput compared to traditional impact mills.
Multi-Impeller Classifier (Precision Screening):
Integrated at the main unit’s top, this advanced classifier features three independent frequency-controlled motors. By optimizing centrifugal airflow through synchronized multi-rotor rotation, it precisely adjusts the D97 cut-off point, ensuring a sharp particle size distribution and efficient powder collection.

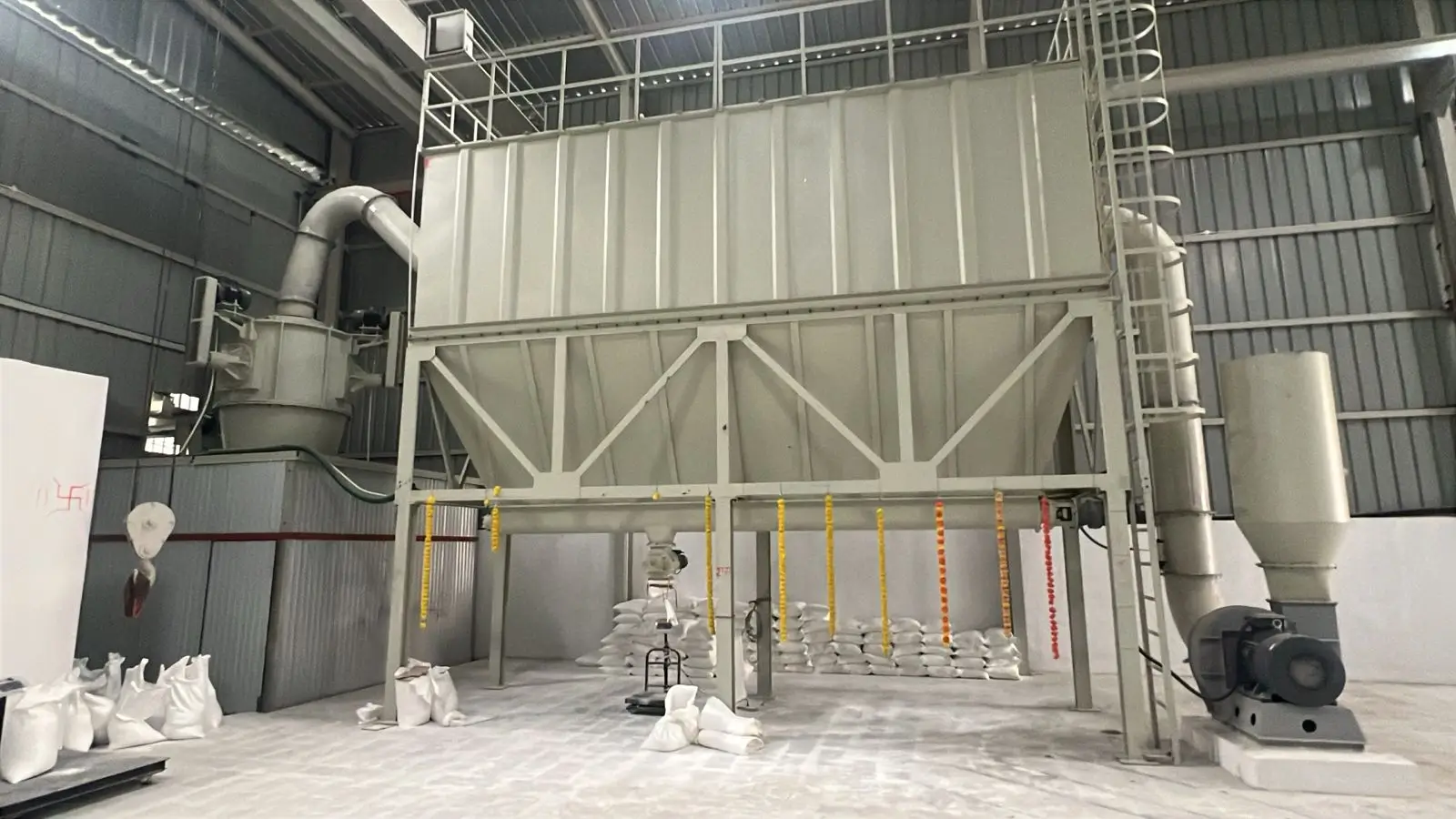

Pulse Dust Collector (Environmental Protection):
This high-efficiency tank-type collector utilizes premium filter bags to capture 100% of the finished powder directly from the airflow. Operating under negative pressure, it ensures zero dust leakage and a 99.9% recovery rate, making it ideal for ultra-fine applications where total product recovery is critical.
High-Pressure Blower (Airflow Circulation):
The “lungs” of the system, providing the necessary negative pressure and high-velocity airflow to lift and transport the powder. Equipped with a professional silencer, it ensures a stable pneumatic environment for the entire closed-loop grinding circuit.
PLC Intelligent Control System (Centralized Operation):
The “brain” of the plant, allowing engineers to monitor vibration, motor frequency, temperature, and system pressure in real-time. This automated interface ensures high batch-to-batch consistency and protects the equipment through intelligent fault-diagnostics and emergency shutdowns.
Feeding and Conveying (Material Preparation):
The raw material is crushed to particles smaller than 20 mm and lifted by the bucket elevator to the storage hopper. A frequency-controlled vibrating feeder ensures a continuous and uniform material flow into the grinding chamber, preventing mechanical overload.
HGM Main Unit (Multi-Layer Grinding System):
The core of the production line, featuring a unique 4-layer grinding design. Utilizing centrifugal force, the rollers crush, roll, and shear the material against the rings. This multi-stage grinding logic delivers significantly higher fineness and throughput compared to traditional impact mills.
Multi-Impeller Classifier (Precision Screening):
Integrated at the main unit’s top, this advanced classifier features three independent frequency-controlled motors. By optimizing centrifugal airflow through synchronized multi-rotor rotation, it precisely adjusts the D97 cut-off point (325–3000 mesh), ensuring a sharp particle size distribution and highly efficient ultra-fine powder collection.
Pulse Dust Collector (Environmental Protection):
This high-efficiency tank-type collector utilizes premium filter bags to capture 100% of the finished powder directly from the airflow. Operating under negative pressure, it ensures zero dust leakage and a 99.9% recovery rate, making it ideal for ultra-fine applications where total product recovery is critical.
High-Pressure Blower (Airflow Circulation):
The “lungs” of the system, providing the necessary negative pressure and high-velocity airflow to lift and transport the powder. Equipped with a professional silencer, it ensures a stable pneumatic environment for the entire closed-loop grinding circuit.
PLC Intelligent Control System (Centralized Operation):
The “brain” of the plant, allowing engineers to monitor vibration, motor frequency, temperature, and system pressure in real-time. This automated interface ensures high batch-to-batch consistency and protects the equipment through intelligent fault-diagnostics and emergency shutdowns.

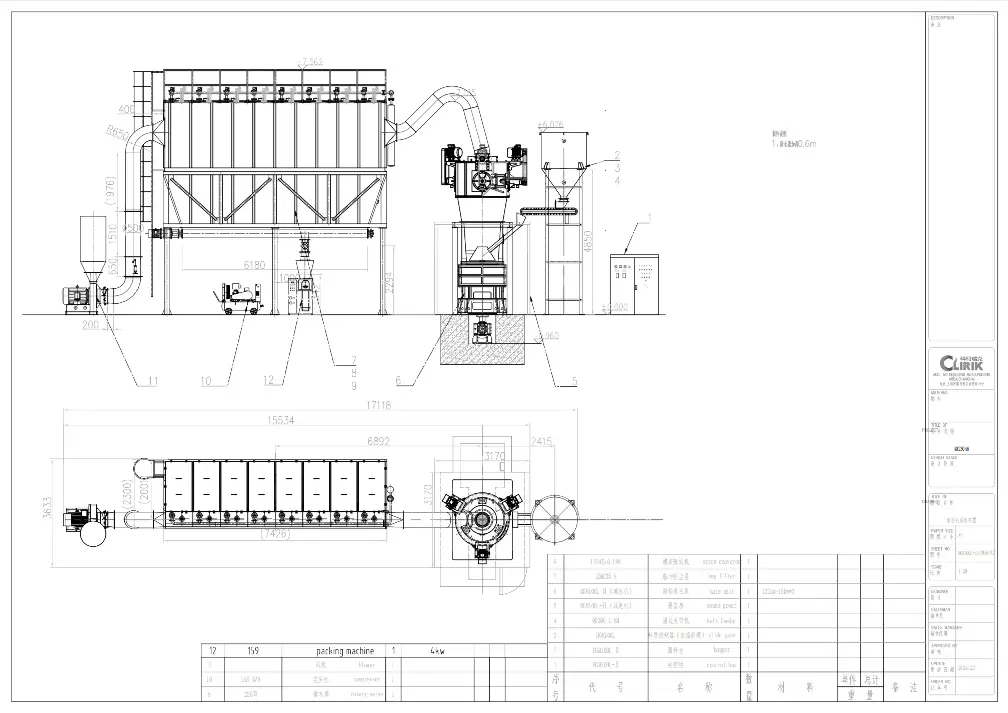

Our Indian partner visited our office to meet face-to-face with our engineers to discuss the production line details and equipment layout. By analyzing their actual factory space together, we quickly designed a customized solution centered on the HGM100L-II with 3-Impeller Classifier line. This direct communication made our cooperation highly efficient and smooth, ensuring the plant layout perfectly meets their goals for producing 5–10μm powder for the plastic and paint industries.

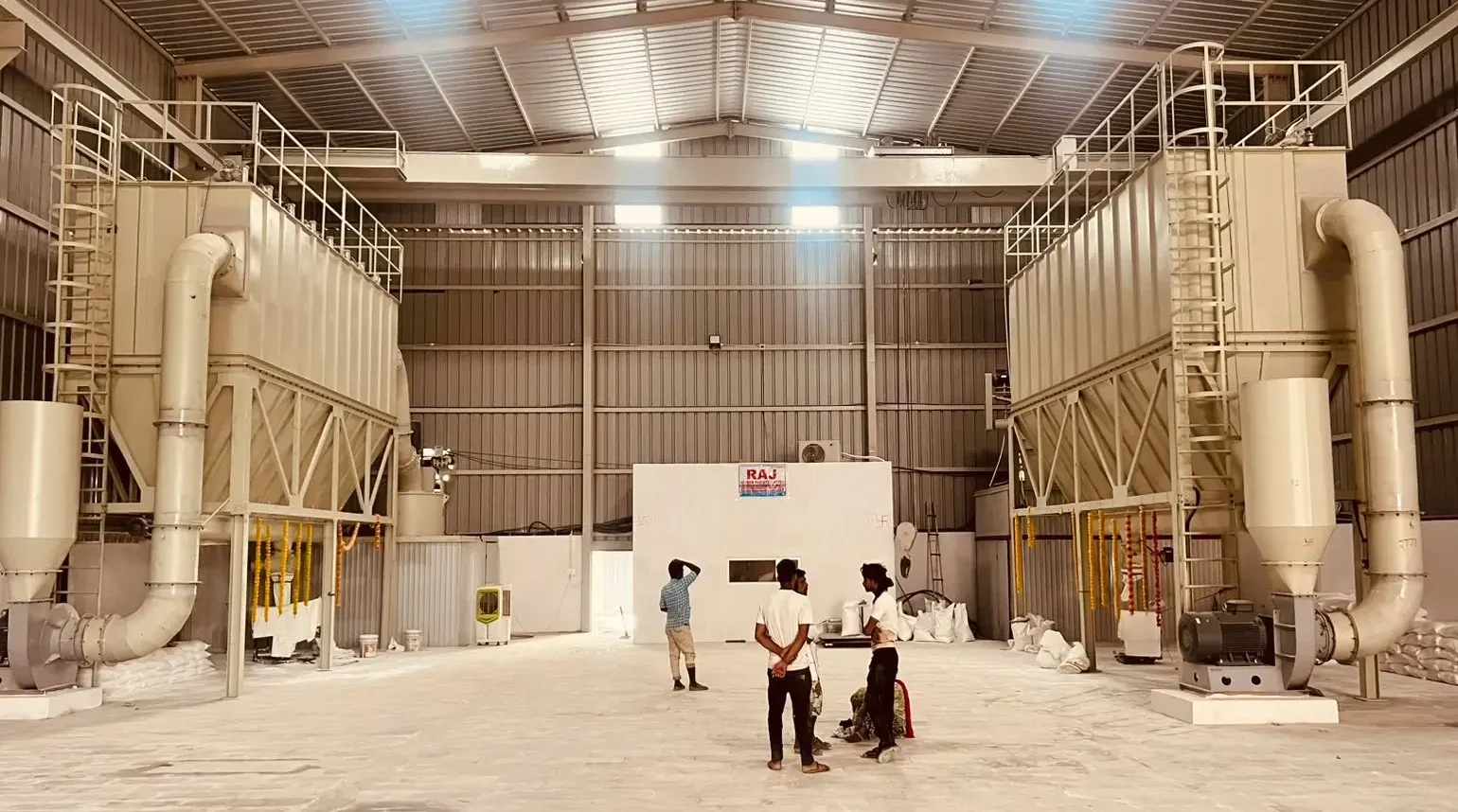

To guarantee a smooth start from design to actual production, our engineers will provide full on-site installation and testing support. We will manage the exact positioning of the HGM100L-II with 3-Impeller Classifier line, making sure all parts are correctly set up within the client’s factory space. This professional technical service ensures a safe, fast setup and prepares the system for stable, long-term operation.
Our Indian partner visited our office to meet face-to-face with our engineers to discuss the production line details and equipment layout. By analyzing their actual factory space together, we quickly designed a customized solution centered on the HGM100L-II with 3-Impeller Classifier line. This direct communication made our cooperation highly efficient and smooth, ensuring the plant layout perfectly meets their goals for producing 5–10μm powder for the plastic and paint industries.
To guarantee a smooth start from design to actual production, our engineers will provide full on-site installation and testing support. We will manage the exact positioning of the HGM100L-II with 3-Impeller Classifier line, making sure all parts are correctly set up within the client’s factory space. This professional technical service ensures a safe, fast setup and prepares the system for stable, long-term operation.
