How HGM Ultrafine Mill Process Ground Calcium Carbonate?

Ground Calcium Carbonate (GCC) Production Process with HGM Ultrafine Grinding Mill.

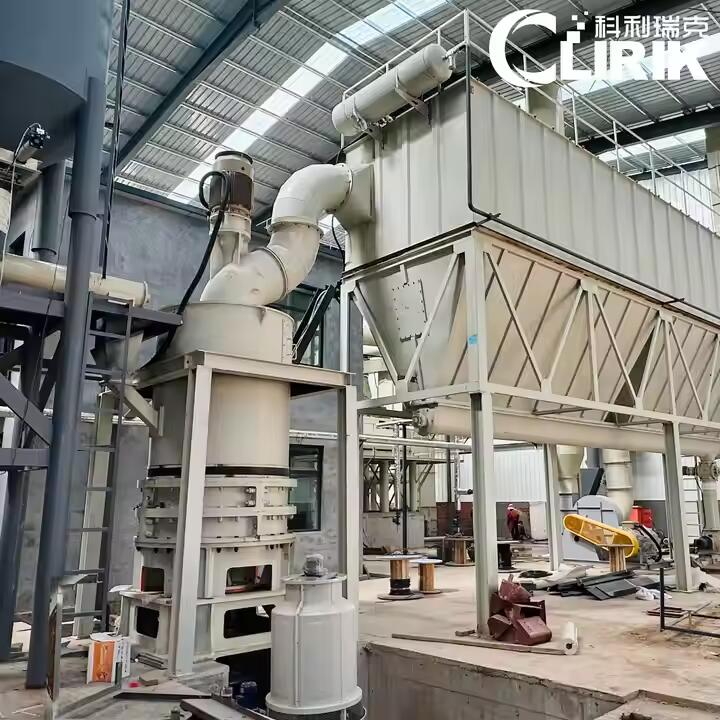

HGM ultrafine mill for GCC Production Process.jpg

HGM ultrafine mill for GCC Production Process


1. Raw-material preparation

   • Mine or quarry high-calcium limestone, marble or chalk.

   • Primary jaw crusher → hammer / impact crusher reduces lumps to ≤ 25 mm .


2. Feed storage & metering

   • Belt conveyor and bucket elevator deliver crushed stone to a sealed storage hopper.

   • Vibrating feeder ensures a steady, controlled feed rate into the HGM mill.


3. Ultrafine grinding – HGM mill core stage

   Working principle

   • Main grinding unit grinds material between high-pressure rollers and a multilayer ring.

   • A variable-speed classifier instantly separates fines at 150-3000 mesh and recycles oversize.

   • The sealed, negative-pressure loop yields 5–45 µm powder with 30 % less energy and zero dust.


   Typical performance (HGM80 example)

   • Feed size ≤ 20 mm, output 0.5–4 t/h at 1250 mesh (10 µm D97).

   • Specific energy ≈ 30 % lower than ball-mill systems; noise < 80 dB(A) .


4. Classification & recirculation

   • Coarse particles rejected by the classifier fall back onto the grinding table for further reduction; fines proceed to collection.

   • Sharp top-size cut delivers narrow particle-size distributions required for plastics, paints, paper coatings.


5. Dust-free collection

   • Pulse-jet bag filter captures 99.9 % of airborne fines; filtered air is vented or recycled to the blower.

   • Explosion vents and CO₂ inerting options meet ATEX / NFPA standards when handling ultra-fine powders.


6. Optional surface modification

   • Continuous on-line coating unit injects stearic acid or other functional modifiers at 90–120 °C to improve dispersibility and hydrophobicity for polymer masterbatches.


7. Packaging & logistics

   • Rotary valve feeds finished GCC into big-bag or 25 kg valve-bag packers under inert gas flush if required.

   • Integrated PLC records batch weight, fineness and moisture, ensuring traceability.


Environmental & operational highlights

• Closed-loop, negative-pressure system eliminates dust leakage.

• Grinding ring and roller forged from special alloy give 12–24 months wear life under medium-hard limestone .

• Total plant footprint is < 150 m² for a 2 t/h, 1250-mesh line, facilitating retrofit into existing buildings.


End-product quality

• Brightness ≥ 95 % ISO, top cut 10 µm (1250 mesh), oil absorption 18–22 g/100 g (coated).

• Consistently meets the requirements of high-grade offset paper, PVC cable and automotive sealants.


HGM ultrafine grinding mill converts crushed limestone into ultrafine GCC powder in a single, energy-efficient step while maintaining strict environmental and quality standards.
