TH Bucket elevator

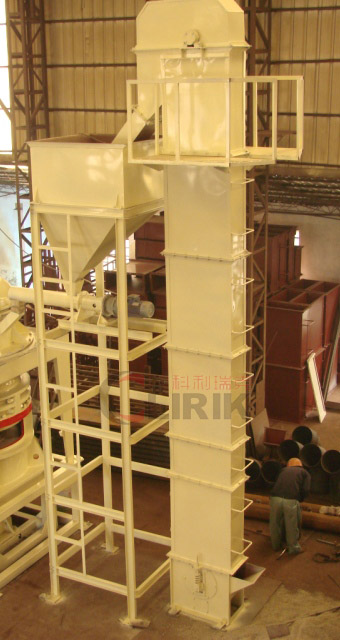

TH series Bucket elevatoris a part of HGM micro powder grinding mill equipment. It is used to elevate variety of bulk materials from lower to higher vertically. The materials are put into hopper through shaking table, then the machinery auto

Over View
Features
Applications
Technical Data

TH series Bucket elevatoris a part of HGM micro powder grinding mill equipment. It is used to elevate variety of bulk materials from lower to higher vertically. The materials are put into hopper through shaking table, then the machinery automatic continuously transport up. You can adjust transport speed according to transport volume, and choose the elevate height according the need.

Features of TH series bucket elevator:

  1. High-efficiency and low power consumption

TH series Bucket elevator adopt small driving power, and the intensive-layout of Inflow type feeding, induction discharge, large capacity hopper. In the materials ascend, there is no feed back or dig material phenomenon.

  1. Wide application

TH designs and manufactures Bucket Elevators to meet the needs of many industries, such as Chemical, Minerals Processing, Food, Wood Products and Wastewater Treatment.

  1. The unique design

TH Bucket Elevators are custom designed for your application. Bulk material characteristics, capacity and overall height are considered when designing Bucket Elevators.

  1. High safety and reliability

TH Bucket Elevators are manufactured to rigid quality standards. Clirik is an ISO 9001-2008 certified manufacturer. Every component and assembly is manufactured by highly skilled craftsmen.



Features of TH series bucket elevator:

  1. High-efficiency and low power consumption

TH series Bucket elevator adopt small driving power, and the intensive-layout of Inflow type feeding, induction discharge, large capacity hopper. In the materials ascend, there is no feed back or dig material phenomenon.

  1. Wide application

TH designs and manufactures Bucket Elevators to meet the needs of many industries, such as Chemical, Minerals Processing, Food, Wood Products and Wastewater Treatment.

  1. The unique design

TH Bucket Elevators are custom designed for your application. Bulk material characteristics, capacity and overall height are considered when designing Bucket Elevators.

  1. High safety and reliability

TH Bucket Elevators are manufactured to rigid quality standards. Clirik is an ISO 9001-2008 certified manufacturer. Every component and assembly is manufactured by highly skilled craftsmen.



TH series Bucket elevatoris a part of HGM micro powder grinding mill equipment. It is used to elevate variety of bulk materials from lower to higher vertically. The materials are put into hopper through shaking table, then the machinery automatic continuously transport up. You can adjust transport speed according to transport volume, and choose the elevate height according the need.

Model and Technical data

Model

TH315

TH400

TH500

TH630

Hopper type

ZH

SH

ZH

SH

ZH

SH

ZH

SH

Transmission volume(m3/h)

35

59

58

94

73

118

114

185

Hopper capacity(L)

3.75

6

5.9

9.5

9.3

15

14.6

23.6

Hopper distance(mm)

512

688

Diameter of Round steel*pitch

Φ18*64

Φ12.1*86

Single chain strength

≧320

≧480

Unit length traction weight

25.64

26.58

31.0

31.9

41.5

44.2

49.0

52.3

Transmission shaft rev(r/min)

42.5

37.6

35.8

31.8

Largest block(mm)

35

40

50

60

Hopper speed

1.4

1.5

Remark

ZH: middle deep hopper

SH: deep hopper
