A Sand Washing and Recycling Integrated Machine is a piece of equipment used in the construction and mining industries for cleaning, grading, and recycling sand. It combines the functions of a sand washer and a dewatering screen, allowing for the efficient cleaning and recycling of sand particles.Wo

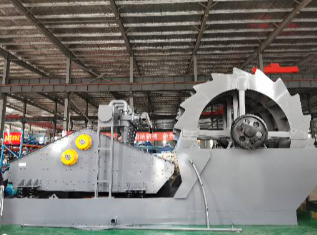

A Sand Washing and Recycling Integrated Machine is a piece of equipment used in the construction and mining industries for cleaning, grading, and recycling sand. It combines the functions of a sand washer and a dewatering screen, allowing for the efficient cleaning and recycling of sand particles.
Working Principle of Sand Washing and Recycling Machine
Washing:
The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screens for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.
Recycling: Flowing slurry water is extracted by slurry pump, and fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.
Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurethane vibrating screen for dewatering.
The sand washing and recycling integrated machine has several advantages, including efficiency, water recycling, cost savings, and improved product quality.
With its streamlined process, it reduces the need for multiple pieces of equipment, while also recycling water within the system, minimizing water consumption and reducing environmental impact.
Additionally, its integrated design and efficient operation can lead to cost savings in terms of equipment, labor, and water usage.
By removing impurities and excess water, the machine helps produce high-quality sand suitable for various applications.
Higher sand quality, lower moisture content.
Recycled fine size 0.16-3mm sand, lower mud content.
Compact structure and easy installation.
High productivity and 95% of fine particles kn the material can be recycled.
Solve cleaning problem of seclimentation tank and improve economic performance at the same time.
Application: crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering
| Model | Input Size(mm) | Capacity(T/H) | Impeller Size(mm) | Hydrocyclone (mm) | Screen Panel(mm) | Powder(kw) | Overall Size(mm) |
| LZ1808-55-1224 | <10 | 20-40 | 1800*800 | 250*2 | 1200*2400 | 29.4 | 5800*5000*1950 |
| LZ2512-65-1530 | <10 | 30-60 | 2500*1200 | 300*2 | 1500*3000 | 40 | 5800*5560*2750 |
| LZ3016-65-1842 | <10 | 40-80 | 3000*1600 | 300*2 | 1800*4200 | 46.5 | 7950*6200*3700 |
| LZ3020-120-2442J | <10 | 100-150 | 3600*2000 | 300*4 | 2400*4200 | 89.5 | 8500*6800*3700 |
| LZ3024-140-3048J | <10 | 120-200 | 3600*2400 | 300*4 | 3000*4800 | 115 | 7950*7400*4100 |
| LZ4230-180-3660J | <10 | 160-250 | 4200*3000 | 300*6 | 3600*6000 | 149 | 8580*8020*4860 |
