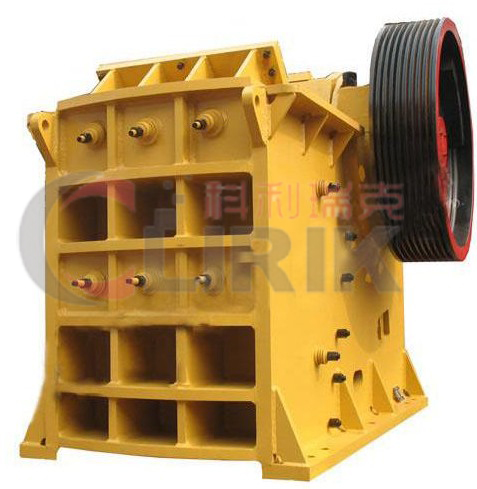

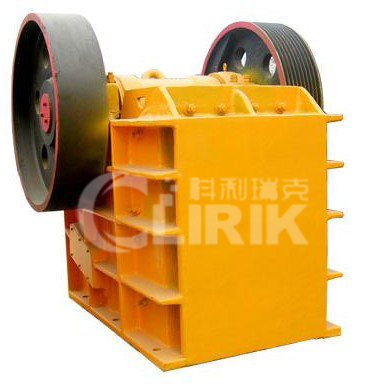

PE Jaw Crusher

Product description of PE series deep cavity jaw crusher Jaw crusher series have features of big crushing ratio, uniform products size, simple structure, reliable work, easy maintenance and low cost. It is widely used in stone mining, metal

Over View
Features
Applications
Technical Data

Product description of PE series deep cavity jaw crusher

Jaw crusher series have features of big crushing ratio, uniform products size, simple structure, reliable work, easy maintenance and low cost. It is widely used in stone mining, metallurgy industry, building material, highway, railway, water conservancy and chemical industries. Various materials with compression resistance less than 320MPa can be crushed.

Working principle of PE series deep cavity jaw crusher

Jaw crusher’s working type is of moving and squeezing. The working principle is as follows: jaw crusher uses motor as its powder. Through the motor’s wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

Advantages and features of PE series  deep cavity jaw crusher

  1. High crushing ratio, uniform particle size
  2. Point eclipse discharge opening adjustment device, reliable and easy to adjust the range to meet the needs of different customers.
  3. Safe and reliable lubrication system, easy to replace parts, low maintenance workload.
  4. Simple structure, reliable function, low operating cost.



  1. High crushing ratio, uniform particle size
  2. Point eclipse discharge opening adjustment device, reliable and easy to adjust the range to meet the needs of different customers.
  3. Safe and reliable lubrication system, easy to replace parts, low maintenance workload.
  4. Simple structure, reliable function, low operating cost.

Should you have any questions, please do not hesitate to contact me.
mobel:8613917147829
E-mail:sales@clirik.com


Main technical parameters of PE series deep cavity jaw crusher

Type FeedOpening Szie(mm) Feeding Size (mm) Output
Open Range
(mm)
Capacity
(t/h)
Power
(kw)
Dimension
L*W*H
(mm)
PE150×250 150X250 125 10--40 1--5 5.5--7.5 922×745×933
PE200×350 200X350 125 15--40 5--16 7.5--11 1056*1142*1220
PE250×400 250x400 210 20-60 5--20 15--18.5 1430*1310*1340
PE400×600 400X600 350 40--100 15--60 30-37 1700*1732*1653
PE500×750 500X750 425 50-100 40-100 45-55 2035*1921*2000
PE600×900 600X900 480 65-160 60-140 55-75 2290*2206*2370
PEX250×400 250x400 210 ≦12 5--10 15--18.5 1430*1310*1340
PEX250X1200 250X1200 210 25-60 20-60 37-45 2192*1605*1415
