Structure of Impact Crusher (Take PF1214 For Example)

Impact Crusher

Wear Parts Of Impact Crusher

Side Plate

Side Plate

They are designed to protect the machine frame from being impacted

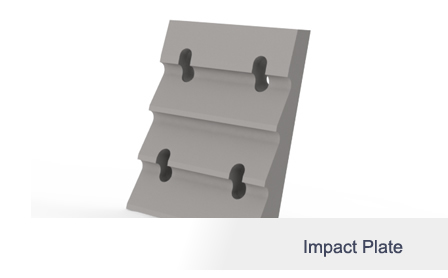

Impact Plate

Impact Plate

Impact Plates are installed in the Impact Racks.
Hammer Bar

Hammer Bar

Hammer Bar are installed on the rotor and they can prevent the rotor from being impacted by stones
Square Bar

Square Bar

Square Bars are installed in the corners of impact crusher
