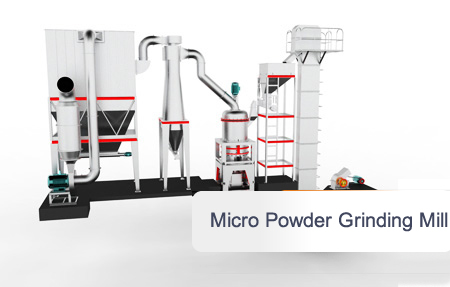

Structure of Micro Powder Grinding Mill

• Upper distributor
• Turn table
• Rollers
• Ring
• Lower distributor
• Lower body
• Pulse controller
• Current relay
• Classifier rotor
• Main unit Base

Wear Parts Of Micro Powder Grinding Mill

Upper distributor

Upper distributor is on the turn table, at the top of impeller.

Turn table

Turn table is in the center of upper machine body

Rollers

Rollers are installed under the upper distributor, shaft-centered and near the ring

Ring

Ring is installed at the inner of main machine body, aside the rollers.

Lower distributor

Lower distributor is installed under the Rollers.

Lower body

Lower body is installed at the lower part of the main machine body

Pulse controller

Pulse controller is the key part of dust catcher,

Current relay

Current relay plays an important part in control the machine electric power.

Classifier rotor

Classifier rotor is installed at the top of the machine.

Main unit Base

Main unit Base is installed at the bottom of the main machine body,
