Structure of VIS Crusher (Take VSI5X9532 For Example)

Wear Parts Of VIS Crusher

Hopper Ring Liner

Hopper Ring Liner

Hopper Ring Liner is installed in the center of hopper
Guard Liner Plate

Guard Liner Plate

Guard Liner Plates are installed around the crushing chamber

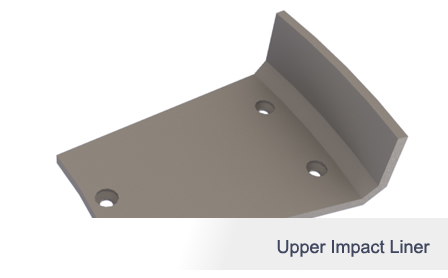

Upper Impact Liner

Upper Impact Liner

Upper Impact Liner is installed on the top of sand making machine crushing chamber
Distributor

Distributor

Distributor is installed at the bottom of impeller
Main Shaft

Main Shaft

Main Shaft links impeller and pulley
Lower Wearing Plate

Lower Wearing Plate

Lower Wearing Plate is installed at the top of shooting opening of impeller
Lower Impact Liner

Lower Impact Liner

Lower Impact Liner is installed on the top of sand making machine crushing chamber
Feed Eye Ring

Feed Eye Ring

Feed Eye Ring is installed at the top of impeller
Upper Wearing Plate

Upper Wearing Plate

Upper Wearing Plate is installed at the top of shooting opening of impeller
Dispersing Cone

Dispersing Cone

Dispersing Cone is hanging in the bottom of hopper
Wearproof Plate

Wearproof Plate

Wearproof Plate is installed at impeller, aside the shooting opening
Inlet Pipe

Inlet Pipe

Inlet Pipe is in the center of dispersing plate
Vice Hammer

Vice Hammer

Vice Hammer is installed aside the shoot opening of impeller.
Main Hammer

Main Hammer

Main Hammer is installed aside the shoot opening of impeller.
Impact Block

Impact Block

Impact Block is installed on impeller body. When sand making machine is running
